DC-SP6531EXD

Explosion Proof Mini-Dome Camera
  • 5/6/12MP Camera
  • 5MP Camera installed as a default
  • Motorized Vari-focal lens (f=3.0-13.5mm)
  • IR Distance: 30m
  • 3-axis mechanical design for installation
  • PoE, Onvif Support
  • IP67
  • Optional: Audio, Alarm
General
Explosion Proof rateEx db IIC T6 Gb
Ex tD A21 T80℃
Operating Temperature-40℃ ~ 60℃
Power SourcePoE (48V dc)
Power Consumption≤11W
MaterialsStainless Steel 316L

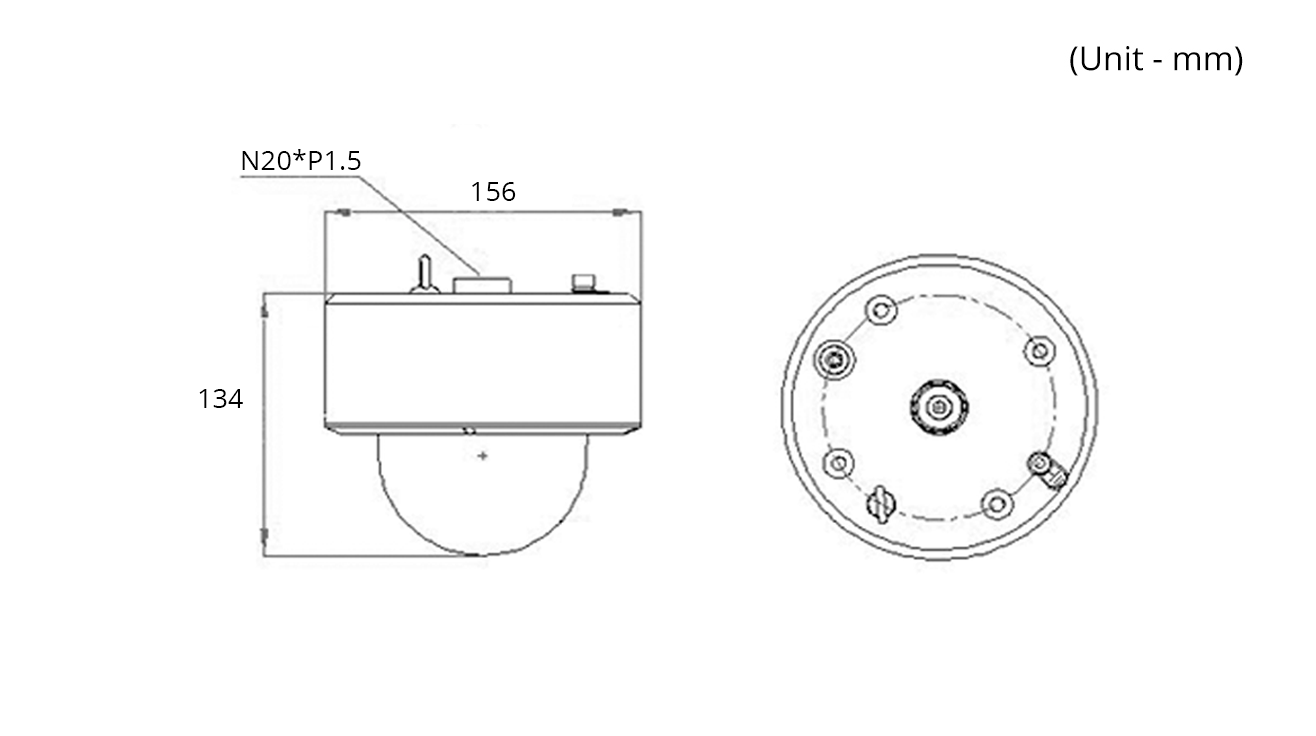

DimensionsØ156X134mm
Weight3.7 Kg
Outdoor ReadyIP67
Camera
Image Sensor1/2.8”Progressive 5M CMOS
Resolution2592(H)X1944(V)
Electronic Shutter SpeedAuto/Manual(1/30 ~ 1/10,000) Anti-Flicker,
Slow Shutter(1~1/5, 1/7.5, 1/15)
Angular Field of ViewWide : 91º(H) 66º(V) 120º(D)
Tele : 31º(H) 23º(V) 38(D)
Focal LengthF=3.0 ~13.5mm (Motorized Vari-focal lens)
De-fogON/ OFF
Dynamic Range120 dB (True WDR)
AI AnalyticsVideo Motion Detection, Active, Tampering Alarm, Trip Zone
IR
IR Distance30m
LED6EA
IR OperationAuto On/Off (Photo Sensor)
Network
EthernetRJ-45(10/100Base-T)
Video CompressionH.265/ H264 / M_JPEG
IP Camera ProtocolDirectIP 2.0, ONVIF
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Max. Frame Rate4:3 mode : 2592x1944(WDR)
16:9 mode : 2592 x 1456(WDR)
Network ProtocolsDirectIP 2.0 Protocol,RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP, RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
etcRemote Access, AI Analytics, Image Stabilizer
