AV05CID-200

5MP Indoor Dome 2.7-13.5mm
https://sales.arecontvision.com/product/contera-indoor-dome/AV05CID-200
SPECIFICATIONS
Video
Image Sensor 5MP CMOS Progressive Sensor
Max. Resolution 2592x1944
Scanning Mode Progressive Scan
Lens Type MFZ Lens
Focal length 2.7-13.5mm
Aperture F1.4
Iris Control Auto/Manual
Angular Field of View H-FOV = 27°–79°, V-FOV = 20°–58°
Min. Illumination 0.15 Lux (Color) 0.01Lux (B/W)
Dynamic Range WDR 120dB
Electronic Shutter Speed Auto/Manual 0.1ms -500ms
Day and Night Auto or Manual
IR Distance (LEDs) 66ft (20m) max
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation Auto BLC
Mirroring / Pivot 90-180-270 degree rotation, mirroring, corridor view
Image Stabilizer No
De-fog No
Privacy Masking Unlimited
Intelligent Video Motion Detection, Tamper, Intrusion Detection, Line Crossing, Loitering
Video Out NA
Pan/Tilt/Rotate
Pan Range 355 degrees
Tilt Range 60 degrees
Rotate Range 180 degrees
Network
Video Compression H.265/H.264/M-JPEG
Intelligent Codec (SNAPstream+) Yes
Bitrate Control 64k-8000k
Audio Compression G.711 PCM 8 kHz/8 bit
Two-way Audio Yes
IP Camera Protocol ONVIF S/G/M/T
Max. Frame Rate 30fps
Supported Resolution 2592v1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360
Multi-video Streaming Triple Streaming
Network Protocols SNMP, HTTP, HTTPS, IPv6, IPv4,SSL, TCP/IP, TLS1.2, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure
Security Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), SSL Encryption, HTTPS Encryption
Ethernet 10/100Base-T Ethernet network interface, RJ45
Recording Session Buffer (NLTSrec) NA
Edge Storage MicroSDXC slot up to 1TB (card not included)
Alarm and Event
Trigger Event Motion detection, tampering detection, alarm in, Video AI
Event Notification Send/record message via email/FTP/NAS/SD Card/record JPG/mp8
Audio Alarm No
Audio In / Out Line in (with amplification) / Line output
Alarm In / Out 1 input (wet contact)/1 output (wet contact)
Environmental
Vandal Proof Casing NA
Outdoor Ready NA
Operating Temperature -10°C (-4°F) to +50°C (122°F)
Operating Humidity 0-90% non-condensing
Electrical
Power Source PoE/12V DC
Power Consumption 10W max
Approval FCC, CE, UL
Mechanical
Dimensions (W x H x D) 4.52 inches (114mm) x 3.65 inches (92.6mm) Round
Weight Unit .79lbs (0.35kg) Packaged 1.21lbs (0.55kg)

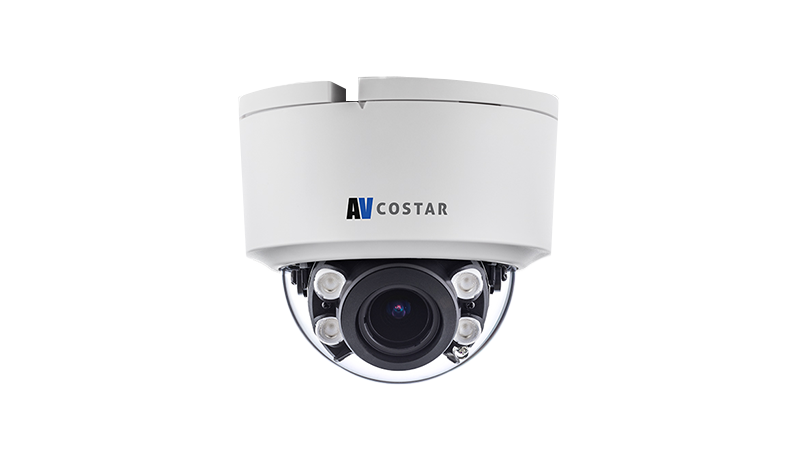

PRODUCT IMAGE

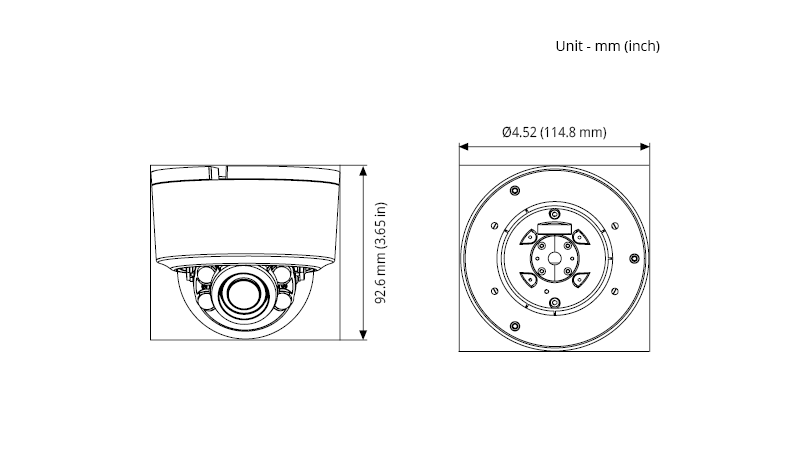

DIMENSIONS
