DA-ES1104C

4-Bay eSATA Storage
/ NDAA Compliant
  • 19 inch rack-mount
  • Supports RAID Levels 0, 1 +0, 5
  • SATA to SATA Port Multiplier
  • Maximum of 3.0Gbps transfer rate (SATA II)
  • Installation of the maximum of four hard disk drives
  • Maximised space saving and capacity relative to the cost
  • Easy expansibility to a very large storage pool
  • Supported Device
    - Up to: 6TB: IR-100, IR-300
    - Up to: 10TB: DR-8364(F)(D)
Function
InterfaceeSATA x1
HDDSATA x 4
HDD Size3.5"
RAIDRAID 1, 5, 10 Supported
Total Capacity40TB=10TB x4
Supported DeviceUp to 6TB: IR-100, IR-300
Up to 10TB: DR-8364(F)(D)
Environmental
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Electrical
Power Input100V ~ 240VAC, 0.6-0.3A, 50/60Hz
Power Consumption100-240V~, 50/60Hz, 0.6-0.3A, 40W
ApprovalFCC, CE, KC
Mechanical

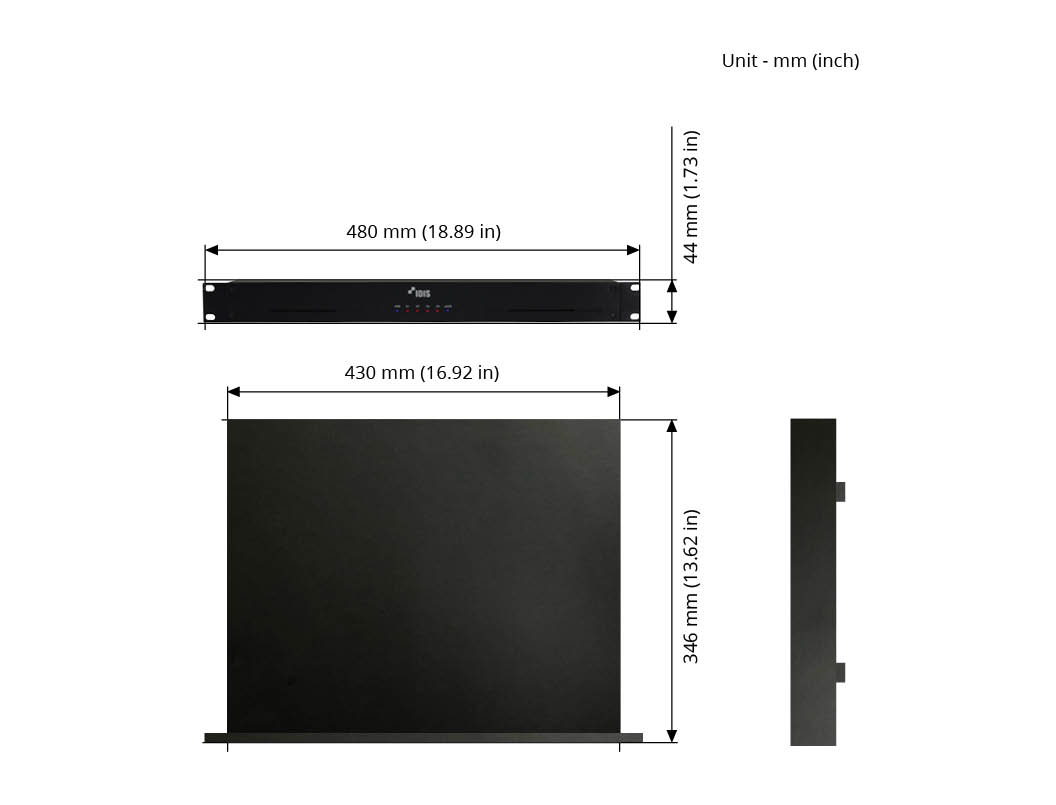

Dimensions (W x H x D)480mm x 44mm x 346mm (18.9" x 1.7" x 13.6")
Weight6.4kg (14.11lb)
Installation environment Accessory configuration
A&E Specification DA-ES1104C A&E Specification v1.4
Manual DA-ES1104 eSATA Storage Manual v1.0
Brochure 4 Bay eSATA Storage (2)
Brochure DA-ES1104C
