| Video |
| Imager Sensor | 1/2.8" CMOS Sensor |
| Effective pixels | 1945(H) X 1097(V), 2.13M Pixels |
| Total pixels | 1945(H) X 1109(V), 2.16M Pixels |
| Max. Resolution | 1920X1080 |
| Scanning Mode | Progressive Scan |

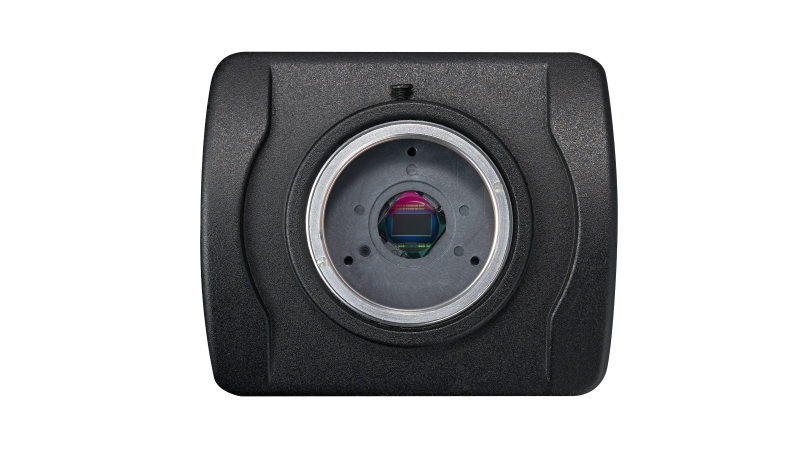

| Lens Type | Optional (C/CS Mount Lens) |
| IRIS Control | DC Auto Iris / ELC |
| Min. illumination | COLOR : 0.1 Lux @ F1.4, B/W : 0.05 Lux @ F1.4 |
| S/N Ratio | More than 50dB |
| Electronics Shutter Speed | AUTO / Manual(1/30,1/25Sec ~ 1/30,000Sec) / FLICKER |
| Day/Night | YES(ICR) |

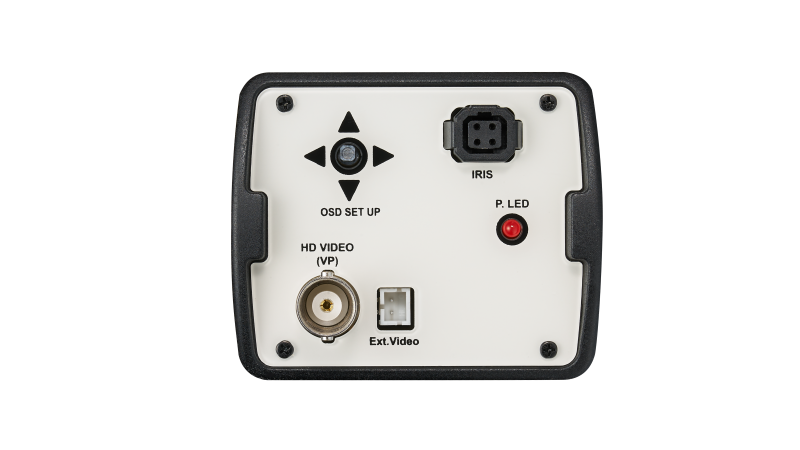

| Video Out | 1 HD BNC , 1 SD BNC |
| Function |
| AGC | 0 ~ 10 Level Adjustable |
| Brightness | 0 ~ 20 Level Adjustable |
| Sens-UP | OFF / x2 ~ x32 |
| WDR(Wide Dynamic Range) | OFF / ON (Low,Middle,High) |
| Backlight Compensation(BLC) | OFF/ON |
| HSBLC | 1 ~ 20 Level Adjustable(ALL DAY/NIGHT ONLY) |
| ACE(D-WDR/ATR-EX) | - |
| Motion Detection | OFF/ON (4 Zone) |
| Privacy Masking | OFF/ON (16 Zone) |
| Day & Night | Auto(AGC)/Color/B&W |
| Smart -IR(IR OPTIMIZER) | 0~20 Level Adjustable |
| White Balance | AUTO / AUTOext / PRESET / MANUAL (3,000K, 5,000K, 8,000K) |
| Digital Noise Reduction | OFF/LOW/MIDDLE/HIGH |
| Mirror | MIRROR,FLIP |
| D-ZOOM(EZOOM) | - |
| Sharpness | 0~10 Level Adjustable |
| De-fog | OFF/ON |
| GAMMA Correction | r = 0.45 ~ 0.65 |
| Lens Shading(LSC) | - |
| Environmental |
| Out-door Ready | - |
| Storage Temperature | -20℃ ~ +60℃ (-4℉ ~ +140℉)
(Humidity : 0% ~ 95%) |
| Operating Temperature | -10℃ ~ +50℃ (14℉ ~ +122℉)
(Humidity : 0% ~ 90%) |
| Electrical |
| Power Source | PoC |
| Power Consumption | 7W |
| Mechanical |

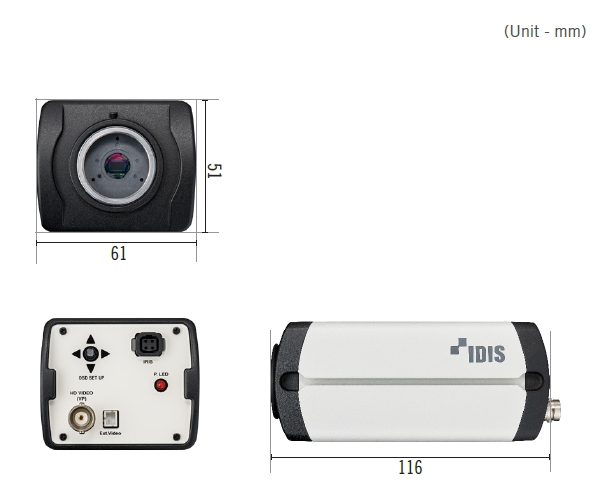

| Dimensions (W x H x D) | 61mm x 52mm x 116mm (2.40" x 2.05" x 4.57") |
2MP
True WDR
IR Cut Filter Removable
HSBLC
