AI in the Box
AI Embedded
Powerful Performance
Easy Installation
Reliability
Scalability
| SYSTEM | |
| IDIS Solution Suite | Compatible with IDLA VA Service |
| Network Connection | 2 GbE RJ-45 Ports (1000Base-T) |
| Channels available for Analyti | 16Ch |
| IDLA Processing Unit | NVIDIA GTX1060, 6GB |
| Operating System | Microsoft® Windows Embedded Standard 8 |
| Processor | Intel® I7-7700, 3.6GHz |
| Memory | DDR4 PC-19200, 8GB |
| Video Outputs | 1 HDMI, 1 DP, 1 VGA |
| USB | 6 ( 2 Front USB 2.0 + 2 Back USB 3.0 + 2 Back USB 2.0) |
| MECHANICAL | |
| Form Factor | 4U RACK Mount Chassis |

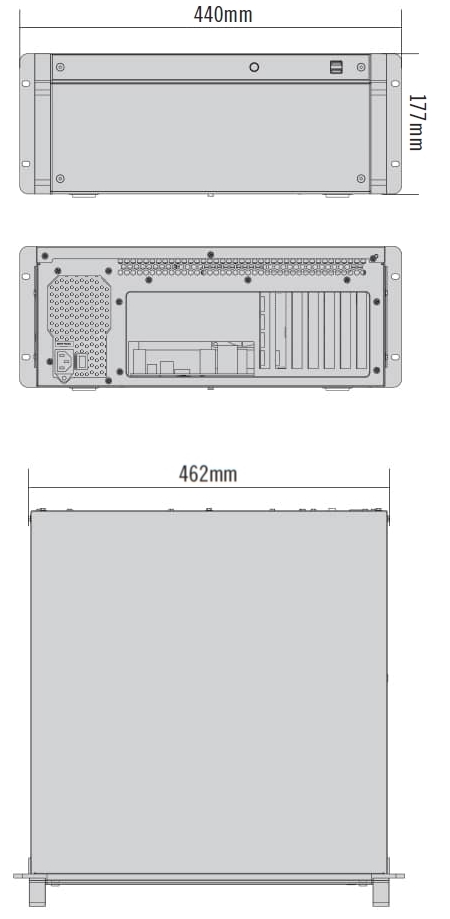

| Dimensions (W x D x H) | 440mm x 177mm x 462mm (17.3" x 7.0" x 18.2") |
| Weight | 14.0kg (30.9 lbs.) |
| ELECTRICAL | |
| Power Input | AC 100-240 V, 50/60Hz, 3.0 - 1.5A |
| Power Supply | Single Power. |
| Power Consumption | 250W |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% to 90% |
| General | |
| Certifications | FCC, CE, CB, UL, KC |
