EXTERNAL STORAGE

DA-ES1104D

4-Bay eSATA StorageCompatible Recorder : IR-300A

NDAA & TAA Compliant
DA-ES1104D
Thumbnail

Key Specifications

  • 19 inch rack-mount
  • Supports RAID Levels 0, 1+ 0, 5
  • SATA to SATA Port Multiplier
  • Maximum of 3.0Gbps transfer rate (SATA II)
  • Installation of the maximum of four hard disk drives
  • Maximised space saving and capacity relative to the cost
  • Easy expansibility to a very large storage pool
  • Compatible to IR-300A with 10TB HDD
  • Supported Device: Compatible Recorder :IR-300A, IR-310D
Download Datasheet
Hardware Performance General
Hardware
InterfaceeSATA x1
Number of DrivesSATA II x4
Drive Size3.5"
Drive TypeSATA II
Supported DeviceCompatible Recorder :IR-300A, IR-310D
Performance
Type and RateSATA II(3Gbps)
RAID0,1+0,5
Max Drive Capacity40TB(up to 10TB per bay)
General

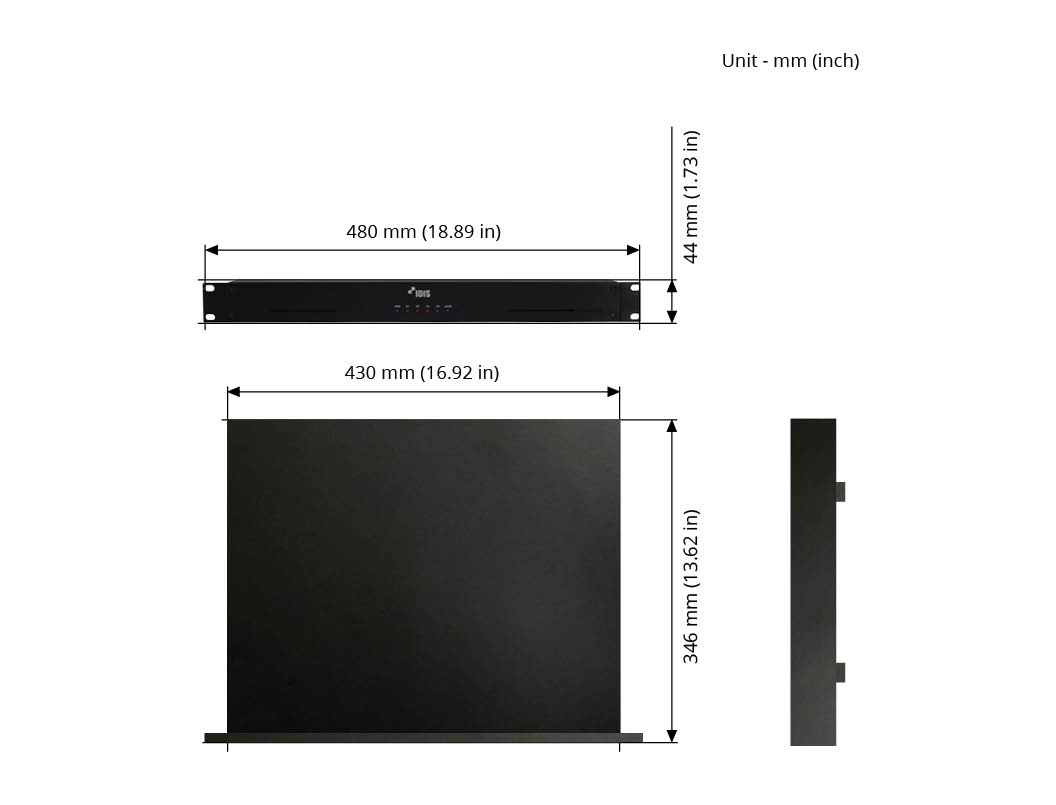

Diemensions(W x H x D)480mm x 44mm x 346mm (18.9" x 1.7" x 13.6")
Weight6.4kg (14.11lb)
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
Power Input100V ~ 240VAC, 0.6-0.3A, 50/60Hz
Power Consumption100-240V~, 50/60Hz, 0.6-0.3A, 40W
ApprovalsFCC,CE
A&E SPECIFICATION DA-ES1104D A&E Specification v1.4 Download
MANUAL DA-ES1104 eSATA Storage Manual v1.0 Download
BROCHURE 4 Bay eSATA Storage (2) Download
Datasheet DA-ES1104D | Automatically Generate Datasheet
Download
