NK-1200

Network Keyboard
  • Remote control of NVRs, network video transmitters, network video receivers and network cameras via the network connection
  • Two-way audio communication
  • Two-way audio communication
  • Convenient firmware upgrades via either the USB port or Ethernet
  • Firmware duplication and auto-recovery functions to enhance system stability
  • Management of multiple network keyboards via the network connection
  • Programmable by using the LCD screen
COMMUNICATION
Interface2 x RS485 (Terminal Block), 10/100/1000 Ethernet (RJ45, PoE IEEE802.3af
Baud Rate300bps ~ 115,200bps
Supports Protocol Over 70 sorts of PTZ Protocol (IDIS, Panasonic, Pelco, Samsung, etc.)
Supports DevicesIP Camera, NVR, iNEX (IDIS Solution Suite)
Display LCD (2 Line)
USB1 x USB 2.0, 1 x USB 3.0
Audio In / Out1 (3.5mm) / 1 (3.5mm)
ComponentJoystick + Main Control Board
Camera Control 3-Axis Joystick for PTZ (Pan, Tilt, Zoom) control with Variable Speed
Camera Selection RS-485, Ethernet
S/W UpgradeUSB, Network
Set-up ProgramIDIS Discovery
GENERAL

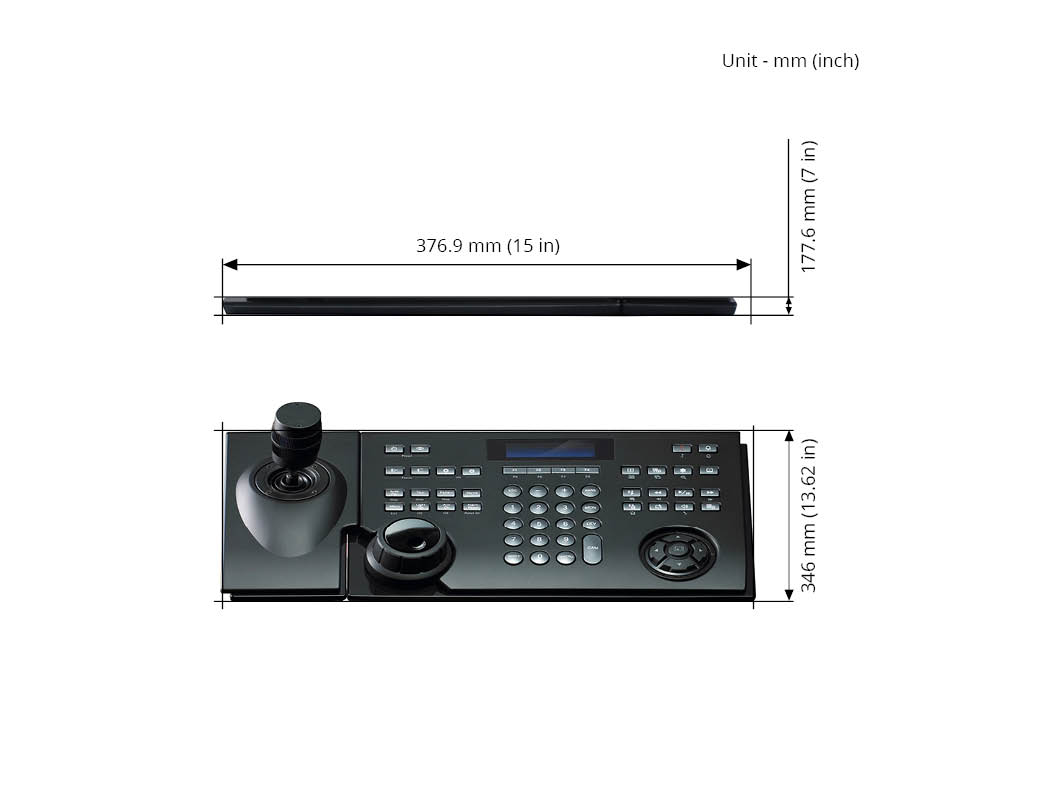

Dimensions (W x H x D) 376.9mm x 95mm x 177.6mm (15.0” x 3.7” x 7.0”)
Weight 1.2kg (2.64lb)
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Operating Humidity0% to 90%
Power InputDC 48V, 1A, PoE (IEEE 802.3af class 0)
Power Consumption 48VDC, 0.18A, 8.64W, PoE, IEEE 802.3af (class 0)
Approvals FCC, CE, KC
INSTALLATION ENVIRONMENT ACCESSORY CONFIGURATION
[Manual] NK-1200 Manual v1.4
[Software] NK-1200 Firmware v1.5.0
[Software] NK-1200 Firmware v1.4.0
[A&E Specification] NK-1200 A&E Specification v1.0
[Brochure] NK-1200 Digital Network Keyboard(INDIA Region only)
