DC-S3283EX

Explosion Proof PTZ Camera
  • Ex db IIC T6 Gb, Ex tD A21 T80℃
  • AF Optical zoom lens (f=4.3 ~ 129mm)
  • Easy installation with DirectIP NVR
  • Intelligent Codec
  • micro SD/SDHC/SDXC, Smart Failover
  • WDR, DIS
  • PoE, Onvif
  • IP67
General
Explosion Proof rateEx db IIC T6 Gb
Ex tD A21 T80℃
Operating Temperature-40℃ ~ 60℃
Power SourcePoE (48V dc)
Power Consumption≤15.3W (Heater, Fan)
MaterialsStainless Steel 316L

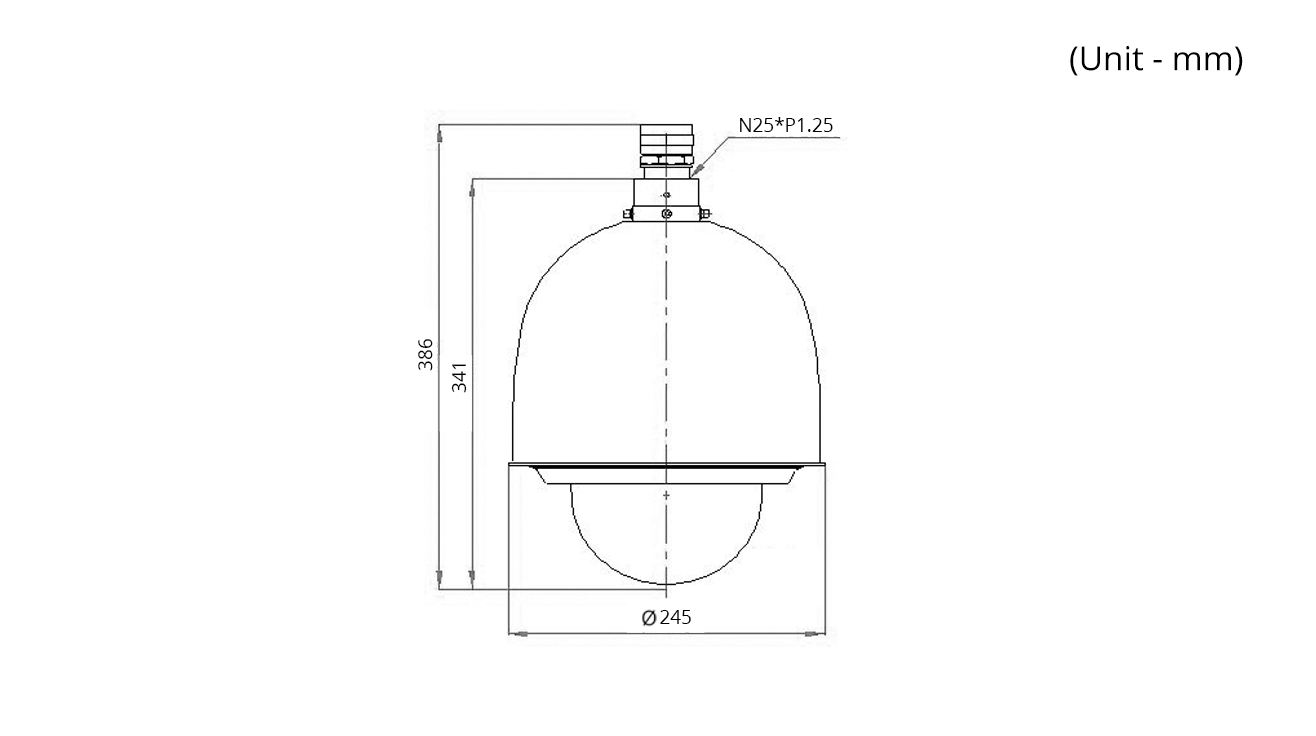

DimensionsØ245 x 386mm
Weight12.7Kg
Outdoor ReadyIP67
Pan/Tilt
Rotation SpeedPAN: 0.02~180°/sec (preset 420°/sec)
TILT: 0.02~180°/sec (preset 420°/sec)
Preset256ea
Camera
Image Sensor1/3” Progressive 2M CMOS
Resolution1,920(H) x 1,080 (V)
Electronic Shutter SpeedAuto/Manual(1/30~/10,000sec)
Slow Shutter(1~1/5,1/7.5,1/15) Anti-Flicker
Angular Field of ViewWide:64.7º(H),38.6º(V),72.7º(D)
Tele : 2.3º(H), 1.4º(V), 2.6º(D)
Min. IlluminationCOLOR: 0.1 Lux @ F1.6
B/W: 0.01 Lux @ F1.6
Focal LengthOptical 30x (4.3 ~ 129mm)
EthernetRJ-45(10/100/1000Base-T)
Network
Video CompressionH.265 / H.264 / M-JPEG
IP Camera ProtocolDirectIP 2.0, ONVIF Profile S
Network ProtocolsDirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Installation environment Accessory configuration
MANUAL (Instruction Manual) DC-S3283EX Download
BROCHURE (Explosion Proof) DC-S3283EX Download
Brochure (Explosion Proof) DC-S3283EX Download
