GPS Antenna

GNSS Ceramic Active Antenna
  • Magnetic Mount
  • Ground Plane Independent
  • Certificates: IP67, IP69K
  • 1575-1606 MHz
Antenna and electrical
ParametersGNSS Ceramic Active Antenna
StandardsGPS/QZSS/Galileo
Band (MHz)1575
Frequency (Mhz)1575.42
Patch Size (mm)25 x 25 x 4
Return Loss (dB)<=-15.0 dB
VSWR<=1.4:1 dB
Impedance (Ohms)50
Radiation PatternHemispherical
PolarizationRHCP
Active Gain (dB)28dB @ 2.7V
Noise Figure (dB)1.8 @ 2.7V
Voltage Range (V)1.5 - 3.6
Current Consumption (mA)9 @ 2.7V
Saw Filter TypePre-Filter
Out of Band Rejection (dB)~43
ESD Protection (kV)6
Connector TypeSMA-Male Standard
Cable Length20ft (19'+1' pigtail)
Cable TypeLL100 Standard
Mechanical and environmental
Mounting TypeMagnetic Mount

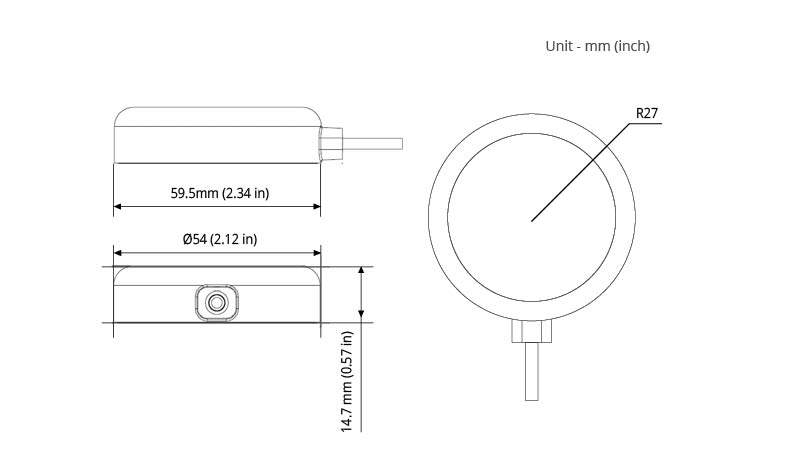

Dimensions (mm)Ø 54 × 14.7
Randome TypePC+ASA
Randome ColorBlack
Operating Temperature (C)-40 to +85
Storage Temperature (C)-40 to +85
CertificatesIP67, IP69K
Substance ComplianceRoHS
