| Video |
| Image Sensor | 1080p (2.1MP) CMOS Progressive Sensor |
| Max. Resolution | 1920x1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal length | 3.6mm |
| Aperture | F2.0 |
| Iris Control | Auto/Manual |
| Angular Field of View | H-FOV = 84°, V-FOV = 45° |
| Min. Illumination | 0.04 Lux (Color) 0.005Lux (B/W) |
| Dynamic Range | WDR 120dB |
| Electronic Shutter Speed | Auto/Manual 0.1ms -500ms |
| Day and Night | Auto or Manual |
| IR Distance (LEDs) | 66ft (20m) max |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | Auto BLC |
| Mirroring / Pivot | 90-180-270 degree rotation, mirroring, corridor view |
| Image Stabilizer | No |
| De-fog | No |
| Privacy Masking | Unlimited |
| Intelligent Video | Motion Detection, Tamper |
| Video Out | NA |
| Pan/Tilt/Rotate |
| Pan Range | 355 degrees |
| Tilt Range | 60 degrees |
| Rotate Range | 180 degrees |
| Network |
| Video Compression | H.265/H.264/M-JPEG |
| Intelligent Codec (SNAPstream+) | Yes |
| Bitrate Control | 64k-8000k |
| Audio Compression | G.711 PCM 8 kHz/8 bit |
| Two-way Audio | Yes |
| IP Camera Protocol | ONVIF S/G/T |
| Max. Frame Rate | 60fps |
| Supported Resolution | 1920x1080, 1280x720, 960x540, 640x480, 640x360 |
| Multi-video Streaming | Triple Streaming |
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4,SSL, TCP/IP, TLS1.2, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), SSL Encryption, HTTPS Encryption |
| Ethernet | 10/100Base-T Ethernet network interface, RJ45 |
| Recording Session Buffer (NLTSrec) | NA |
| Edge Storage | MicroSDXC slot up to 1TB (card not included) |
| Alarm and Event |
| Trigger Event | Motion detection, tampering detection, alarm in |
| Event Notification | Send/record message via email/FTP/NAS/SD Card/record JPG/mp7 |
| Audio Alarm | No |
| Audio In / Out | Line in (with amplification) / Line output |
| Alarm In / Out | 1 input (wet contact)/1 output (wet contact) |
| Environmental |
| Vandal Proof Casing | NA |
| Outdoor Ready | NA |
| Operating Temperature | -10°C (-4°F) to +50°C (122°F) |
| Operating Humidity | 0-90% non-condensing |
| Electrical |
| Power Source | PoE |
| Power Consumption | 8.5W max |
| Approval | FCC, CE, UL |
| Mechanical |

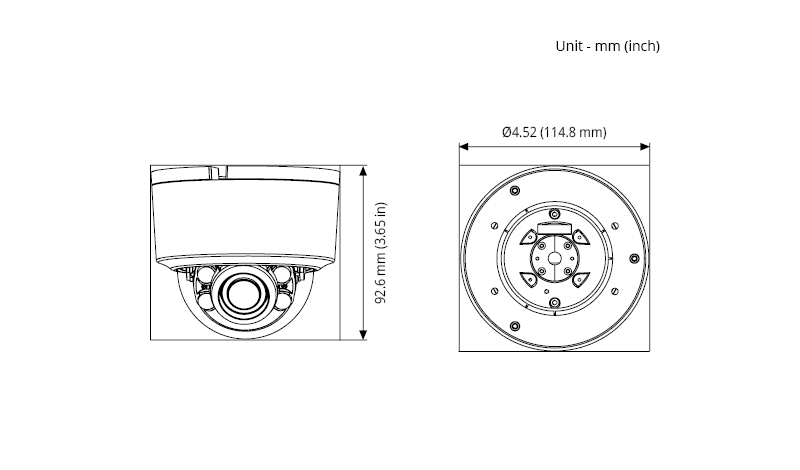

| Dimensions (W x H x D) | 4.52 inches (114mm) x 3.65 inches (92.6mm) Round |
| Weight | Unit .79lbs (0.35kg) Packaged 1.21lbs (0.55kg) |
2MP
Fixed Lens
