2MP
IR Cut Filter Removable
Motorized focus Lens
True WDR
IP66
PoE
Two-way audio
NDAA & TAA Compliant
TAACompliant| Camera Imaging Specifications | |
| Image Sensor | 1080p (2.1MP) CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Minimum Illumination | (Color (Day Mode)) 0.04 Lux (B/W (Night Mode)) 0.005 Lux |
| Full FOV Resolution | 1920 H x 1080 V |
| Scaling | Yes |
| IR Illumination | 82ft (25m) max |
| Dynamic Range | 120dB DOL WDR |
| Frame Rates | (Multi-Stream) (WDR Off) Up to 60fps (1080p) + 60fps (1080p) + 30fps (360p) (Multi-Stream) (WDR On) Up to 30fps (1080p) + 30fps (1080p) + 30fps (360p) |
| Lens | (Motorized Lens) 2.7–13.5mm, F1.4, H-FOV = 28°–100°, V-FOV = 16°–54° |
| Programmability | |
| Optics | Remote focus, remote zoom |
| Low-Light Performance | NightView™ technology Smart IR |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) + mirror |
| Scaling | (1080p) 1920x1080, 1280x720, 960x540, 640x480, 640x360 (5MP) 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Standard Video Analytics | Motion Detection Camera Tamper Intrusion Detection Line Crossing Loitering |
| Optional Advanced Video Analytics | Object Classification (Person/Vehicle) Object Left/Removed People/Vehicle Counting |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, TLS 1.2, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record JPG/mp4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, M, T conformant |
| Listings | UL (CB) UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE): EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | (1080p) -20°C (-4°F) to +50°C (122°F) (5MP) -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12V DC |
| Power Consumption | (1080p) 8.5W max (5MP) 10W max |
| IR Illuminator | |
| LEDs | 4pcs, Smart IR |
| Projection Distance | 82ft (25m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/8 bit |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | Easy 3-axis camera adjustment with 355° pan, and 60° tilt, and 180° Z-rotation |

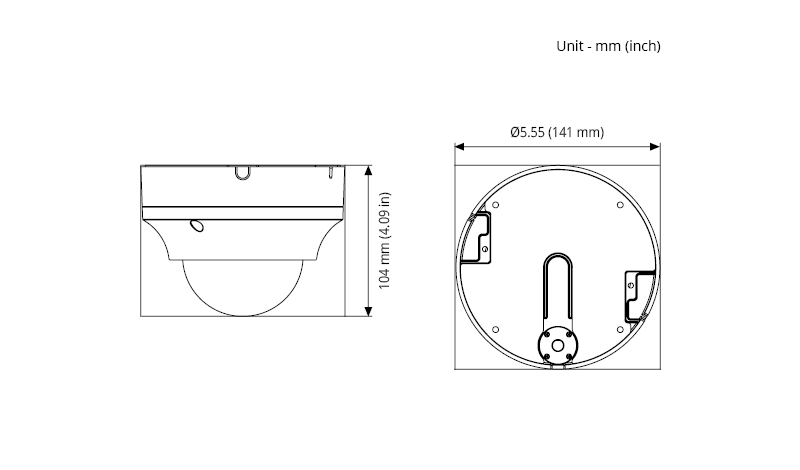

| Dimensions | (Unit) Ø 5.55" (141mm) x 4.09" H (104mm) (Packaged) 5.9" H (150mm) x 6.7" W (170mm) x 7.28" L (185mm) |
| Weight | (Unit) 2.09lbs (0.95kg) (Packaged) 2.16lbs (0.98kg) |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
| INSTALLATION ENVIRONMENT | ACCESSORY CONFIGURATION |
|---|---|
| Wall |
Junction Box Adapter
CLD-JBA-W
OR
WALL MOUNT
DA-WM2050
+
Cap
CLD-CAP-W
+
Mount Ring Adapter
DA-MA110A
|
| Ceiling |
Cap
CLD-CAP-W
+
Pendant Mount Bracket
AV-PMJB-W
|
| Corner |
WALL MOUNT
DA-WM2050
+
Corner Mount Adapter
CHG2501
+
Cap
CLD-CAP-W
+
Mount Ring Adapter
DA-MA110A
|
| Pole |
WALL MOUNT
DA-WM2050
+
Pole Mount Adapter
CHG2511
+
Cap
CLD-CAP-W
+
Mount Ring Adapter
DA-MA110A
|
| ETC |
Flush Mount Adapter
CLD-FMA
OR Wall Mount Junction Box with Cover
DA-JB130A
OR Junction Box Cover with gasket
DA-JB131A
OR Electrical Box Adapter Plate
AV-EBAPR
|
