5MP Indoor Dome 2.7-13.5mm
5MP
IR Cut Filter Removable
Fixed Lens
True WDR
IP66
PoE
Two-way audio
NDAA & TAA Compliant
TAACompliant| Camera Imaging Specifications | |
| Image Sensor | 5MP CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Minimum Illumination | (Color (Day Mode)) 0.15 Lux (B/W (Night Mode)) 0.01 Lux |
| Full FOV Resolution | 2592 H x 1944 V |
| Scaling | Yes |
| IR Illumination | 66ft (20m) max |
| Dynamic Range | 120dB DOL WDR |
| Frame Rates | (Multi-Stream) (WDR Off) Up to 30fps (5MP) + 30fps (5MP) + 30fps (480p) (Multi-Stream) (WDR On) Up to 30fps (5MP) + 30fps (5MP) + 30fps (480p) |
| Lens | (Motorized Lens (-200 Models)) 2.7–13.5mm, F1.4, H-FOV = 27°–79°, V-FOV = 20°–58° (Fixed Lens (-201 Models)) 3.6mm, F2.0, H-FOV = 77°, V-FOV = 56° |
| Programmability | |
| Optics | Remote focus, remote zoom (-200 models only) |
| Low-Light Performance | NightView™ technology Smart IR |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) + mirror |
| Scaling | (1080p) 1920x1080, 1280x720, 960x540, 640x480, 640x360 (5MP) 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360 |
| Wide Dynamic Range | 120dB DOL WDR |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Standard Video Analytics | Motion Detection Camera Tamper Intrusion Detection Line Crossing Loitering |
| Optional Advanced Video Analytics | Object Classification (Person/Vehicle) Object Left/Removed People/Vehicle Counting |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, TLS 1.2, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record JPG/mp4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, M, T conformant |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE): EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) (-S Models Only) |
| Environmental | |
| Operating Temperature | -10°C (14°F) to +50°C (122°F) |
| Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -10°C (14°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) on pigtail cable |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12V DC |
| Power Consumption | (1080p) 8.5W max(5MP) 10W max |
| IR Illuminator | |
| LEDs | 4pcs, Smart IR |
| Projection Distance | 66ft (20m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/8 bit |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | Plastic surface mount chassis with polycarbonate dome bubble |
| Gimbal | Easy 3-axis camera adjustment with 355° pan, and 60° tilt, and 180° Z-rotation |

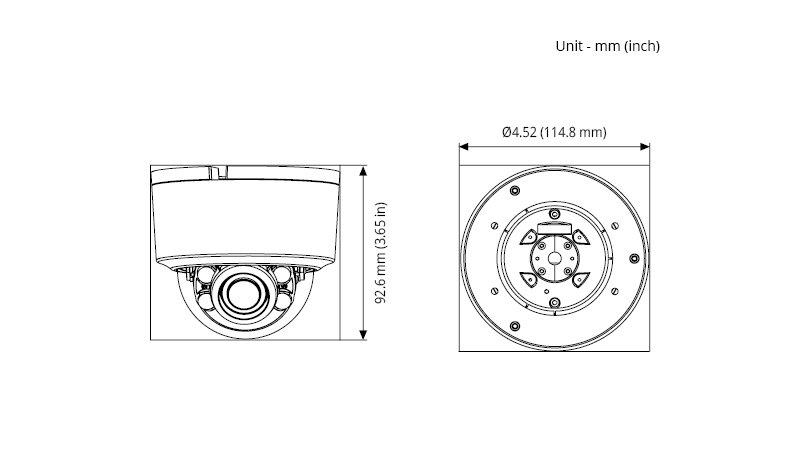

| Dimensions | (Unit) Ø 4.52" (114.8mm) x 3.65" H (92.6mm) (Packaged) 6.1" W (155mm) x 6.5" H (165mm) x 6.0" D (152mm) |
| Weight | (Unit) 0.79lbs (0.36kg) (Packaged) 1.21lbs (0.55kg) |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Wall mount bracket and matching adapter combination for vertical exterior or interior walls.
Ceiling mount and pendant adapter combination for overhead installation.
Corner mount adapter combination for structure edges and corners.
Pole mount adapter combination for vertical cylindrical or square poles.
Adapter combinations for special and custom installation environments.
