2MP Ultra-Compact MicroDome_Flush Mount
2MP
IR Cut Filter Removable
Fixed Lens
True WDR
IP66
PoE
IR LED
NDAA & TAA Compliant
TAACompliant| Camera Imaging Specifications | |
| Image Sensor | 1080p (2.1MP) CMOS Progressive |
| Optical Format | 1/2.8" |
| Minimum Illumination | (Color (Day Mode)) 0.04 Lux (B/W (Night Mode)) 0.004 Lux |
| Full FOV Resolution | 1920 H x 1080 V |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 120dB |
| Frame Rates | (Multi-Stream) (WDR Off) Up to 60fps (1080p) + 60fps (1080p) + 30fps (360p) (Multi-Stream) (WDR On) Up to 30fps (1080p) + 30fps (1080p) + 30fps (360p) |
| Lens | (Fixed Iris) MPM2.8C 2.8mm, 1/2.7", F/1.6, IR corrected, M12-mount (H-FOV) 106.7° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low-Light Performance | NightView technology IR (All Models) |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | CorridorView (90°, 180°, and 270° image rotation) + mirror |
| Scaling | (1080p) 1920x1080, 1280x720, 960x540, 640x480, 640x360 (5MP) 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 960x540, 640x480, 640x360 (8MP) 3840x2160, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 960x540, 640x480, 640x360 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Standard Video Analytics | Motion Detection Camera Tamper Intrusion Detection Line Crossing Loitering |
| Optional Advanced Video Analytics | Object Classification (Person/Vehicle) Object Left/Removed People/Vehicle Counting |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 2MP: 64K–8000K; 5MP: 128K–8000K; 8MP: 512K–8000K |
| Smart Codec | Smart GOP |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, TLS 1.2, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, M, and T conformant |
| Listings | UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE): EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3, IEC 62471 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) (-S Models Only) |
| Environmental | |
| Operating Temperature | -5°C (23°F) to +50°C (122°F) (-F Models) -20°C (-4°F) to +50°C (122°F) (-S Models) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power) |
| Power Consumption | (1080p) 7.5W PoE max (5MP) 7.5W PoE max (8MP) 7.5W PoE max |
| IR Illuminator | |
| LEDs | 3 pcs 850nm LEDs |
| Projection Distance | 50ft (15m) IR distance (max) / 80° IR angle |
| Mechanical | |
| Casing | Tamper-resistant housing, IK-10 impact-resistant (-F Model) In-ceiling mount with die-cast aluminum cover and 2" polycarbonate dome bubble (-S Model) Surface mount with die-cast aluminum housing and 2" polycarbonate dome bubble IP66 weather proof standard 3/8" NPT w/ 1/2" NPT adapter included |
| Lens | 2.8mm board mount (M12), fixed iris, F/1.6 |
| Gimbal | Easy 3-axis camera adjustment w/ 359° pan and 90° tilt and 360° z-axis |

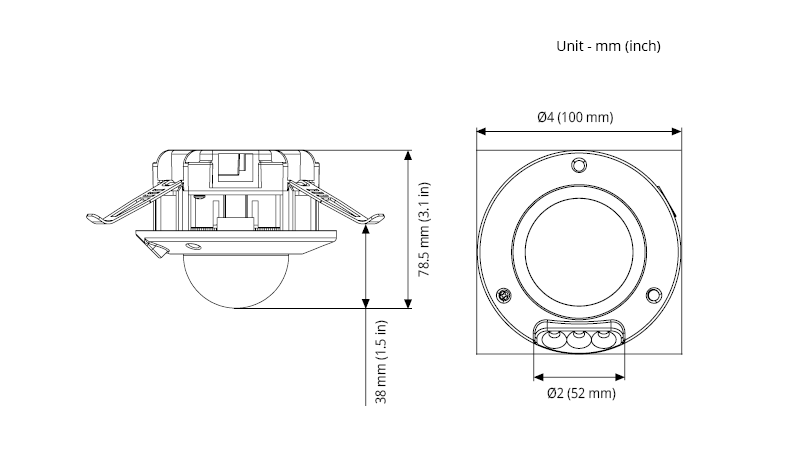

| Dimensions | (Unit) Ø 4" (100mm) x 3.1" H (78.5mm) (Packaged) 5.6" W (142mm) x 5.6" L (142mm) x 3.5" H (90mm) |
| Weight | (Unit) 0.95lbs (0.43kg) (Packaged) 1.3lbs (0.6kg) |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Wall mount bracket and matching adapter combination for vertical exterior or interior walls.
Ceiling mount and pendant adapter combination for overhead installation.
Corner mount adapter combination for structure edges and corners.
Pole mount adapter combination for vertical cylindrical or square poles.
Adapter combinations for special and custom installation environments.
