Four 5MP Sensors with Remote Setup & 1.5 NPT Quick Disconnect
5MP
IR Cut Filter Removable
True WDR
IP66
PoE
Two-way audio
IR LED
NDAA & TAA Compliant
TAACompliant| Camera Imaging Specifications | |
| Image Sensor (CMOS) | 20MP (5MP x 4) CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Pixel Pitch | 2.0μm |
| Minimum Illumination | (Color (Day Mode)) 0.15 Lux (B/W (Night Mode)) 0.015 Lux |
| Full FOV Resolution | (Total) 10368 H x 1944 V (Per Sensor) 2592 H x 1944 V |
| IR Illumination | No |
| Dynamic Range | DOL WDR 120db |
| Frame Rates | (At Max Resolution) 30fps (20MP) (Multi-Stream) Up to 30fps (20MP) + 30fps (20MP) + 30fps (1.2MP) Enhanced WDR on |
| Lens (x4) | 3.3–6.6mm, F1.8, H-FOV = 42°–96° |
| Programmability | |
| Optics | Remote focus / zoom |
| Low-Light Performance | NightView™ technology |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | 180° |
| Scaling | (20MP) 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480 (32MP) 3840x2160, 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480, 640x360 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Standard Video Analytics | Motion Detection Camera Tamper Intrusion Detection Line Crossing Loitering |
| Optional Advanced Video Analytics | Object Classification (Person/Vehicle) Object Left/Removed People/Vehicle Counting |
| Included Accessories | (RS) Power Cable, Alarm Cable (RSIR) Cap, Power Cable, Alarm Cable, 2x Audio Cables (In/Out) |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality |
| Bit Rate Control | 128K–8000K |
| Smart Codec | Smart GOP |
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Network Interface | 10/100/1000Mbps Ethernet, RJ45 |
| Max Camera Bandwidth | 40Mbps (10Mbps per sensor) |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor) |
| Users | Live Viewing/Administrator for up to 10 clients |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, M, and T conformant |
| Listings | UL62368-1 & CAN/CSA-C22.2 No.62368-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE): EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3, EN60950, IEC 62471 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS, record JPG/mp4 |
| Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | (RS) IEEE 802.3at (PoE+), Class 4 (RSIR) IEEE 802.3bt (PoE++), Class 5 |
| Auxiliary Power | (RS) 24-48V DC, 24V AC (RSIR) 24V DC, 24V AC |
| Power Consumption | (RS) 25.5W max (RSIR) 40W max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/8 bit |
| Input/Output | Line in (requires amplification) / Line output |
| IR Illuminator (RSIR Models Only) | |
| LEDs | 6 pcs 850nm LEDs |
| Projection Distance | 98.4ft (30m) IR distance (max) / 360° IR angle |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | (RS) Remotely adjustable, 3-axis w/360° pan, 135° tilt (RSIR) Remotely adjustable, 3-axis w/360° pan, 90° tilt |

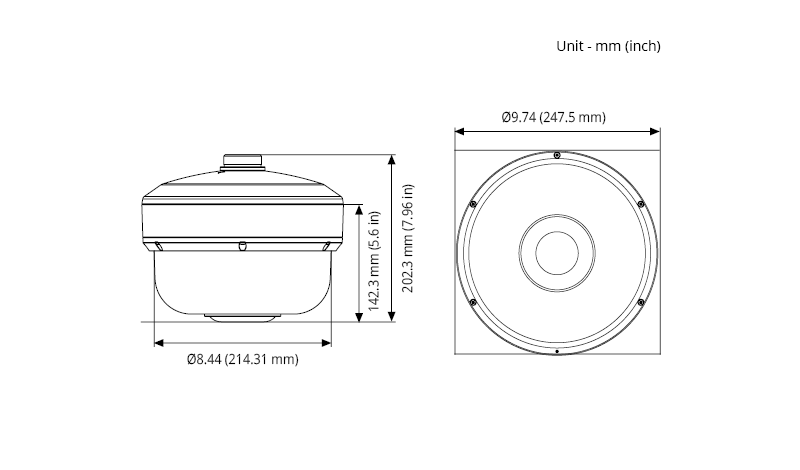

| Dimensions | (RS) (Unit) Ø 8.8" (223.4mm) x 4.9" H (125.4mm) (RS) (Bubble Only) Ø 7.2" (183.3mm) x 2.3" H (59.3mm) (RS) (Packaged) 11.1" W (281mm) x 11.1" L (281mm) x 7.4" H (188mm) (RSIR) (Unit) Ø 9.72" (247mm) x 7.95" H (202mm) (RSIR) (Bubble Only) Ø 8.44" (214.31mm) x 3" H (76.3mm) (RSIR) (Packaged) 28.54" W (725mm) x 14.57" L (370mm) x 12.99" H (330mm) |
| Weight | (RS) (Unit) 5.2lbs (2.36kg) (RS) (Packaged) 5.9lbs (2.68kg) (RSIR) (Unit) 7.55lbs (3.43kg) (RSIR) (Packaged) 10.09lbs (4.58kg) |
| On Board Storage | (RS) MicroSDXC slot up to 1TB (card not included) (RSIR) 2 x MicroSDXC slot up to 1TB (card not included) |
| Body Color | Arecont Vision® White (Pantone® Cool Gray 1C) |
Wall mount bracket and matching adapter combination for vertical exterior or interior walls.
Ceiling mount and pendant adapter combination for overhead installation.
Corner mount adapter combination for structure edges and corners.
Pole mount adapter combination for vertical cylindrical or square poles.
Adapter combinations for special and custom installation environments.
