| Video |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3328 x 1872 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.5 ~ 260mm |
| Aperture | F1.69 ~ F4.92 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 64.6º(H), 38.4º(V), 72.2º(D)
Tele : 1.79º(H), 1.00º(V), 2.08(D) |
| Min. Illumination | Color : 0.13 lux @ F1.69
B/W : 0 lux (IR LED On) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 400 m / 1,312.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 32 Zones |
| Intelligent Video | A-cut Support
Object Metadata: Human, Vehicle, Face
Object Attribute: Human[Gender, Age, Bag, Hat, Colors], Vehicle[Car, Truck, Bus, Bike(Bicycle, Motorcycle), ETC, Colors], Face[Gender, Age, Glasses, Hat, Mask]
IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
IDLA Pro: Crowd Detection, Abandoned Object Detection, Removed Object Detection, Fall Detection
ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 240°/sec) |
| Tilt Range | 100° (-10~90°) |
| Tilt Speed | 0.02~240°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T/M |
| Max. Frame Rate | 30ips : 3328 x 1872(WDR) |
| Supported Resolution | 3328 x 1872, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Crowd detection, Abandoned object detection, Removed object detection, Fall detection, Violence detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66, NEMA4X |
| Operating Temperature | IRLED OFF : -40°C ~ +55°C (-40°F ~ +131°F)
IRLED ON : -40°C ~ +40°C (-40°F ~ +104°F)
*Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical |
| Power Source | 24VAC, PoE (IEEE 802.3bt, Class 8) |
| Power Consumption | HEATER,IR OFF
24V~, 2.0A, 36.4W, 50/60Hz
PoE, IEEE 802.3bt(Class 8), 34.8W
HEATER,IR ON
24V~, 3.0A, 55.9W, 50/60Hz
PoE, IEEE 802.3bt(Class 8), 55.7W |
| Approval | FCC, CE, KC |
| Mechanical |

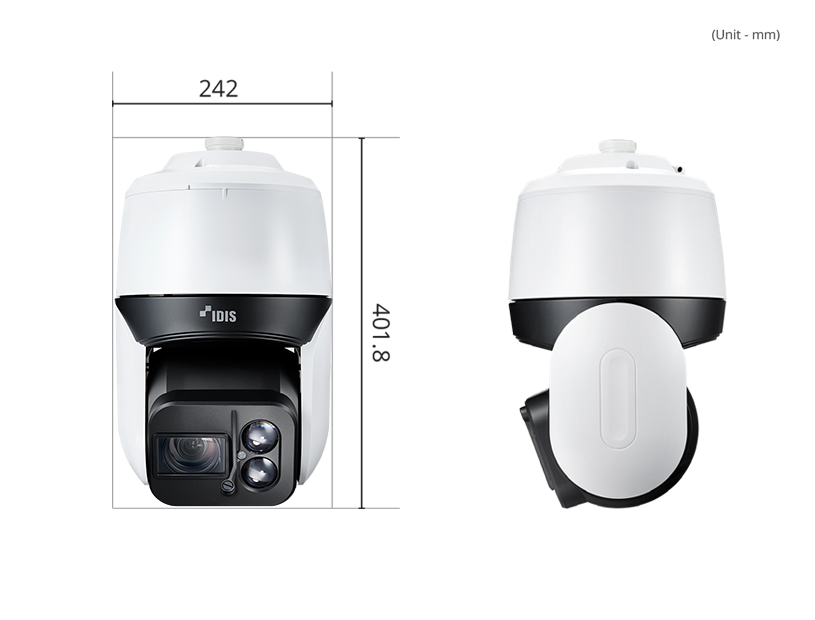

| Dimensions | Ø242mm x 401.8mm (Ø9.52" x 15.82") |
| Weight | 7.46kg (16.44 lbs) |
Artificial Intelligence
6MP
Zoom Lens
Weather Proof
IR LED
AI Embedded
Easy Installation
NDAA Compliant
