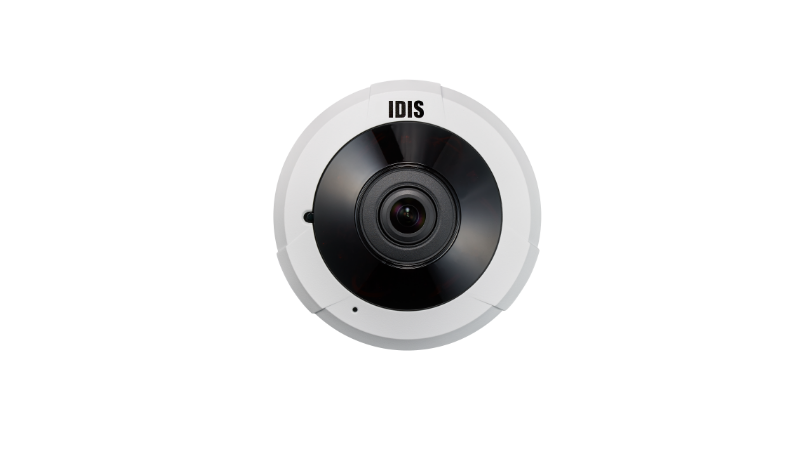

5MP
Fixed Lens
IR LED
True WDR
Easy Installation
Two-way audio
PoE
IR Cut Filter Removable
| Video | |
| Image Sensor | 1/1.8 |
| Max. Resolution | 2560 x 2048 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 1.5mm |
| Aperture | F1.8 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180°(H), 180°(V), 180°(D) |
| Pan/Tilt/Zoom | - |
| Min. Illumination | Color : 0.5 lux @ F1.8 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 15m / 49.2ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 2560 x 2048 (WDR) |
| Supports Resolution | 2560x2048, 1920x1536, 2560x1024, 1280x1024, 640x512, 640x256 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.62A, 7.5W PoE (IEEE 802.3af Class 3), 7.5W |
| Approval | FCC, CE, KC |
| Mechanical | |

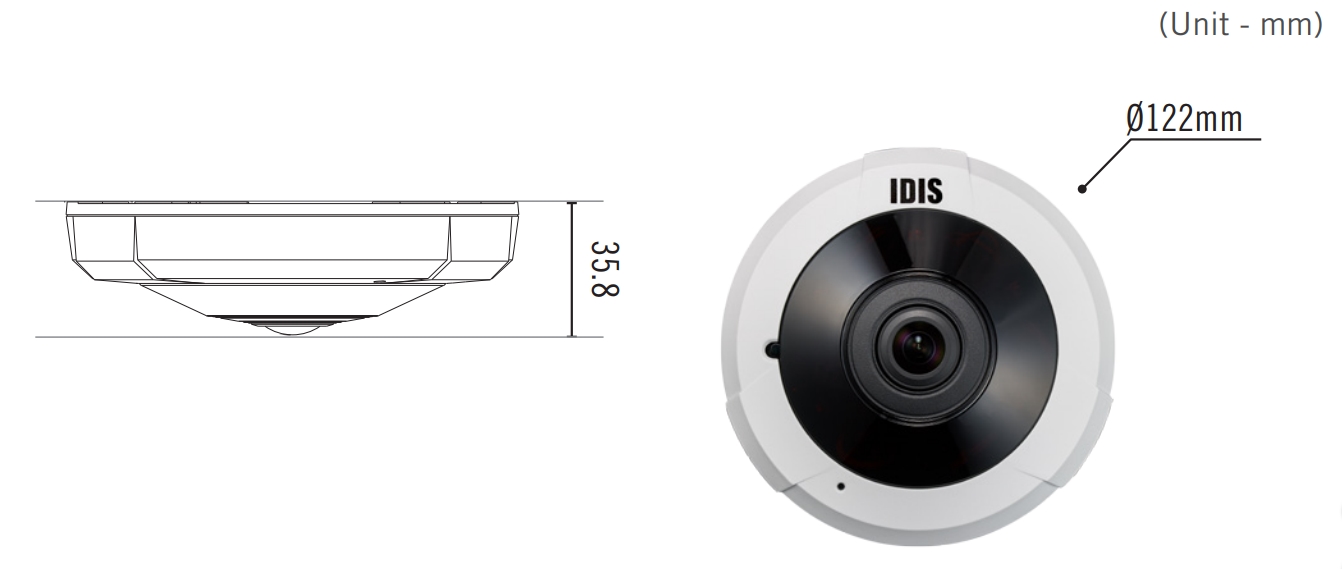

| Dimensions (Ø x H) | Ø122 x 35.8mm (Ø4.80" x 1.40") |
| Weight | 0.285kg (0.63 lb) |
| INSTALLATION ENVIRONMENT | ACCESSORY CONFIGURATION |
|---|---|
| Wall |
Tilt Mount
DA-TM4100
OR
MOUNT ADAPTER
DA-MA4300
+
WALL MOUNT
DA-WM2050
OR
JUNCTION BOX
DA-JB4700
|
| Ceiling |
Tilt Mount
DA-TM4100
OR
MOUNT ADAPTER
DA-MA4300
+
CEILING MOUNT
DA-CM2050
OR
JUNCTION BOX
DA-JB4700
|
| Corner |
MOUNT ADAPTER
DA-MA4300
+
WALL MOUNT
DA-WM2050
+
Corner Mount
DA-RM2000
OR
JUNCTION BOX
DA-JB4700
+
Corner Mount
DA-RM2000
OR
Tilt Mount
DA-TM4100
+
Corner Mount
DA-RM2000
|
| Pole |
MOUNT ADAPTER
DA-MA4300
+
WALL MOUNT
DA-WM2050
+
Pole Mount
DA-LM2000
OR
JUNCTION BOX
DA-JB4700
+
Pole Mount
DA-LM2000
OR
Tilt Mount
DA-TM4100
+
Pole Mount
DA-LM2000
|
