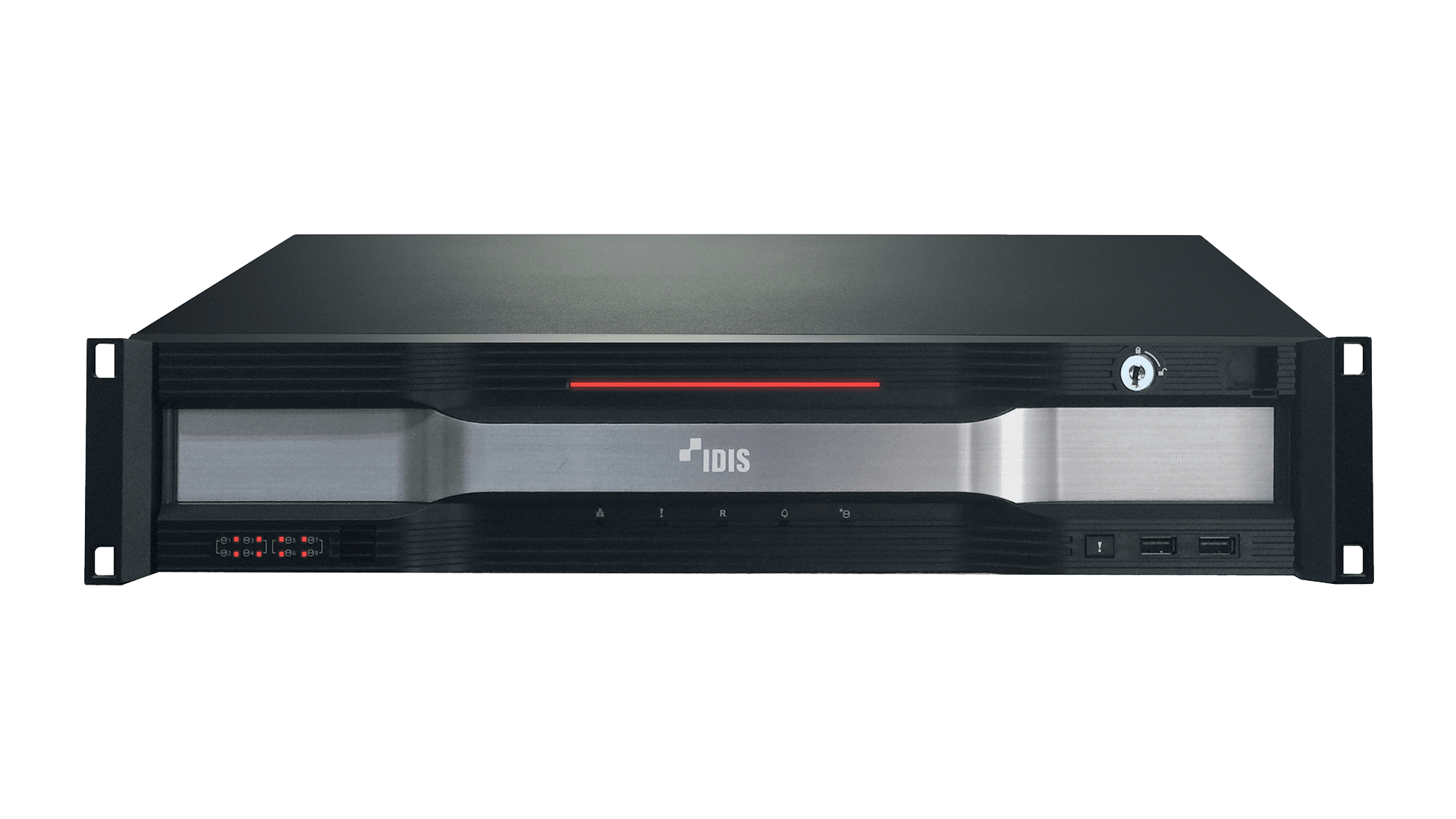

DR-8364

DirectIP 8300 Series H.265 4K Recorder
  • Total incoming throughput 900Mbps
  • Up to 1920ips Full HD real-time recording
  • Supports H.265 / H.264 codec
  • Supports UHD display
  • Up to 1920ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Expandable up to 240TB using eSATA storage
  • Supports RAID 1, 5, 10
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF)
VIDEO
Video Inputs64 IP Channels
Max. Incoming Throughput900Mbps
Supported CameraDirectIP, AXIS, PANASONIC, ONVIF
Video Outputs1 HDMI, 1 VGA
Display Resolution3840x2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 1920ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput400Mbps, 1920ips@Full HD 240ips @ 4K (UHD)
Recording ResolutionUp to 12MP (Depending on IP Camera)
Encoding ModeCBR, VBR
CompressionH.265, H.264
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsAlarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, ANPR, Etc.
PLAYBACK
Performance16ch Full HD synchronous playback
4ch 4K playback
Search ModeTime-lapse, Event Log,Thumbnail, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x8, eSATA x4, RAID 1, 5, 10 supported
Total CapacityThe maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
NETWORK
Client ConnectionGigabit Ethernet (Client) x1
Video In ConnectionGigabit Ethernet(Video In) x3, SFP(Video In ) x 2
Transmission Speed400Mbps / 500Mbps (BRP Mode)
Camera Power-
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioYes
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ OutLocal (NVR) : 1 RCA / 1RCA + 1HDMI
IP Camera : 64 / 64 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : 4 / 1
IP Camera : 64 / 64 (Depending on IP Camera)
Alarm Reset In1
Serial InterfaceRS232 (Terminal Block), RS485 (Terminal Block)
USBUSB 2.0 x 2, USB 3.0 x 1
User InterfaceMouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic)
GENERAL
Operating SystemEmbedded Linux

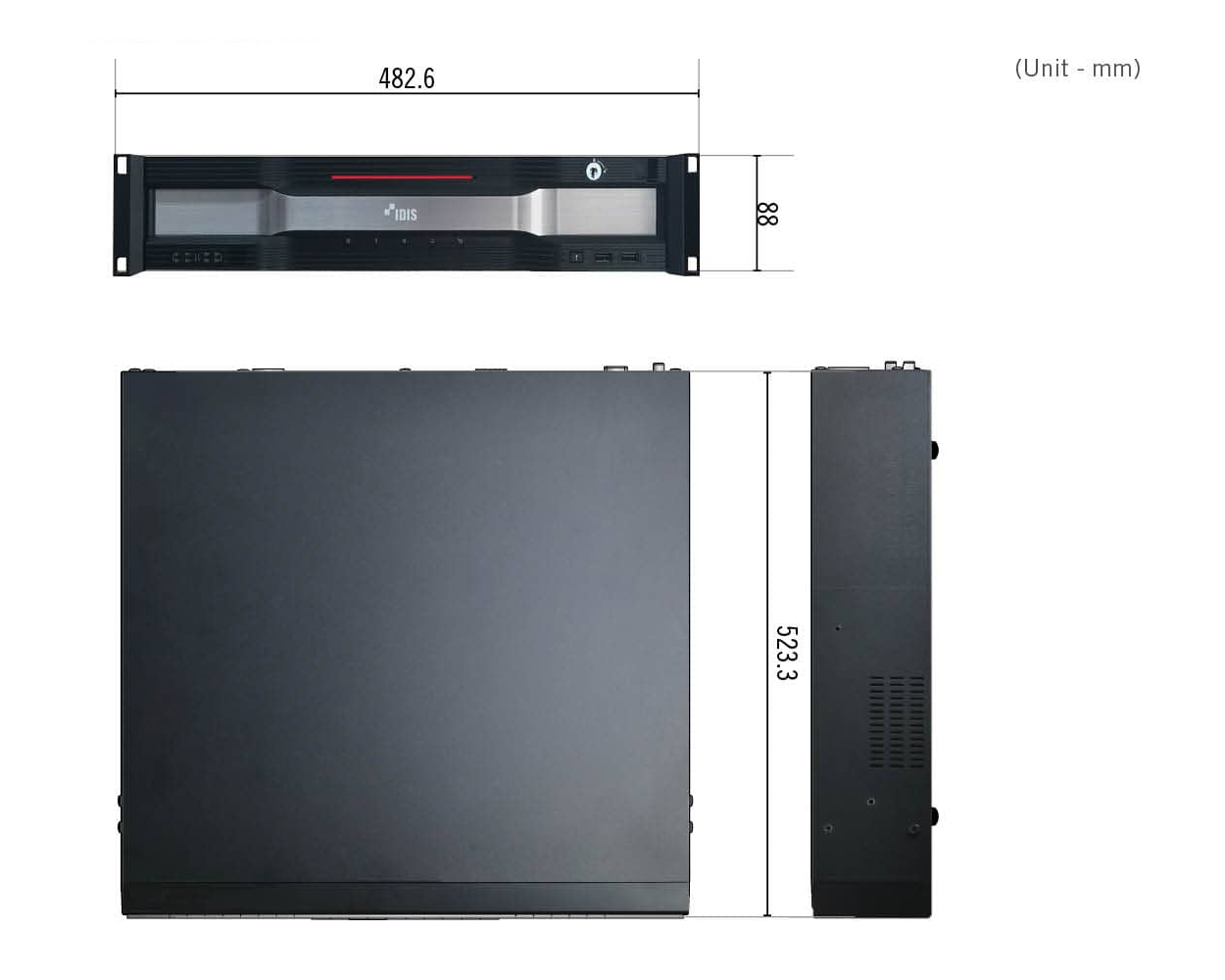

UNIT Dimensions (W x H x D)482.6mm x 88mm x 523.3mm (19" x 3.5" x 20.6")
Unit Weight10.9kg (24.03lb) (with 2 HDDs)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputAC 100-240 V, 50/60Hz, 2.0 - 1.0A
Power Consumption120W (with 8 HDDs)
ApprovalsFCC, UL, CE, CB, KC, PSE
Installation environment Accessory configuration
