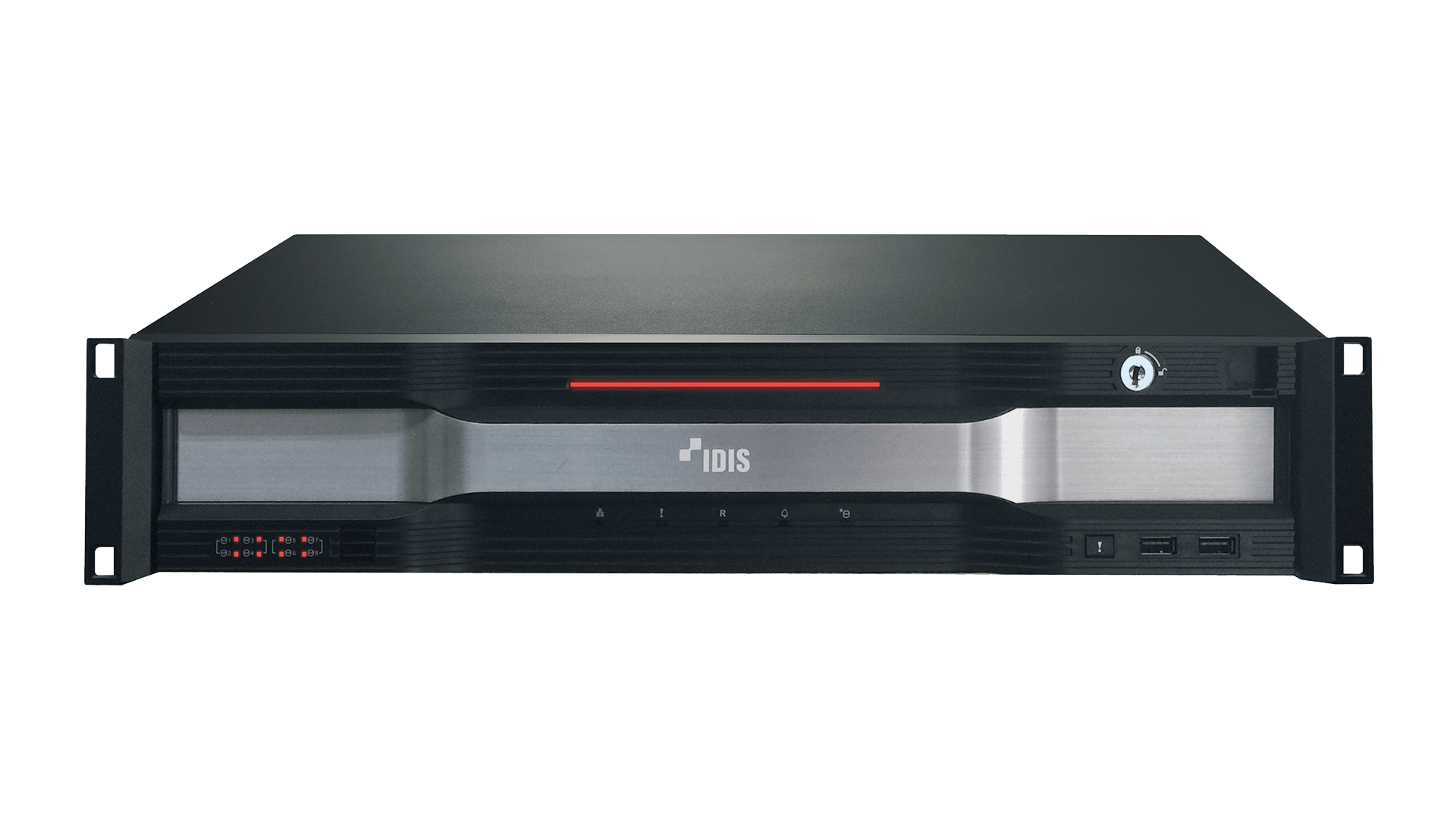

DR-8416

DirectIP 8400 Series H.265 4K Recorder
  • Total incoming throughput 320Mbps
  • Up to 480ips UHD real-time recording
  • Supports H.265 / H.264 codec
  • Supports UHD display
  • Up to 480ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Expandable up to 144TB using eSATA storage
  • Supports RAID 1, 5, 6, 10
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF)

DR-8416

DirectIP 8400 Series H.265 4K Recorder
  • UHD real-time recording

  • RAID 1,5,6,10

  • FEN Service

  • ONVIF

CASE STUDY

Automotive

Logistics

Public Safety

Emergency services

VIDEO
Video Inputs16 IP Channels
Max. Incoming Throughput320Mbps
Supported CameraDirectIP, AXIS, PANASONIC, ONVIF
Video Outputs1 HDMI, 1 VGA
Display Resolution3840x2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 480ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput180Mbps, 480ips@UHD
Recording ResolutionUp to 12MP (Depending on IP Camera)
Encoding ModeCBR, VBR
CompressionH.265, H.264
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsAlarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, ANPR, Etc.
PLAYBACK
Performance16ch Full HD synchronous playback 4ch 4K playback
Search ModeTime-lapse, Event Log,Thumbnail, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x8, eSATA x4, (Up to 6TB Capacity for Each Disk), RAID 1, 5, 6, 10 supported
Total Capacity144TB=6TB x (8(Internal) + 4x4(External))

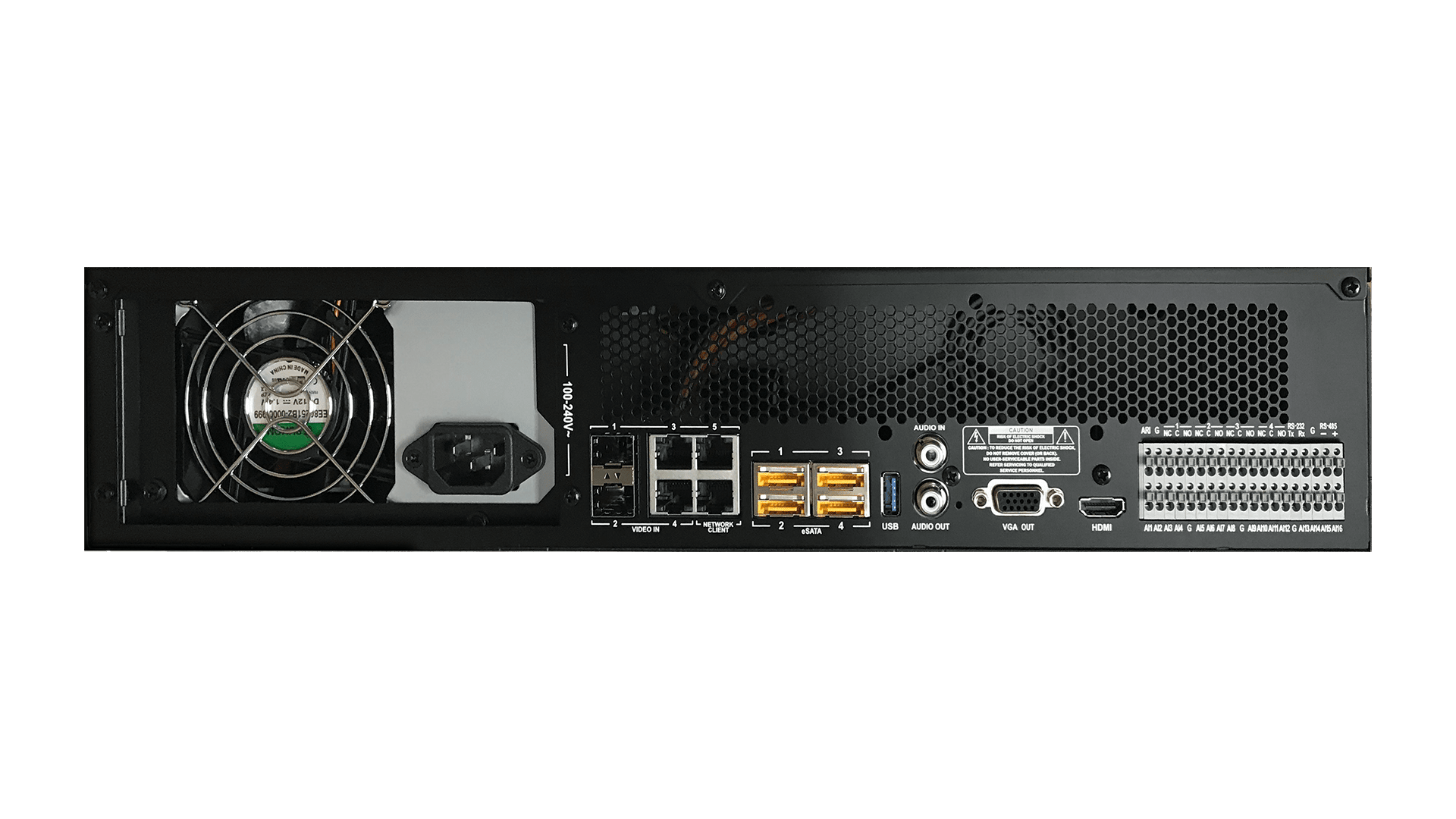

NETWORK
Client ConnectionGigabit Ethernet (Client) x 1
Video In ConnectionGigabit Ethernet(Video In) x 3, SFP(Video In ) x 2
Transmission Speed50Mbps / 100Mbps (BRP Mode)
Camera Power-
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioYes
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ OutLocal (NVR) : 1 RCA / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : 16 / 4 IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In1
Serial InterfaceRS232 (Terminal Block), RS485 (Terminal Block)
USBUSB 2.0 x 2, USB 3.0 x 1
User InterfaceMouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic)
GENERAL
Operating SystemEmbedded Linux

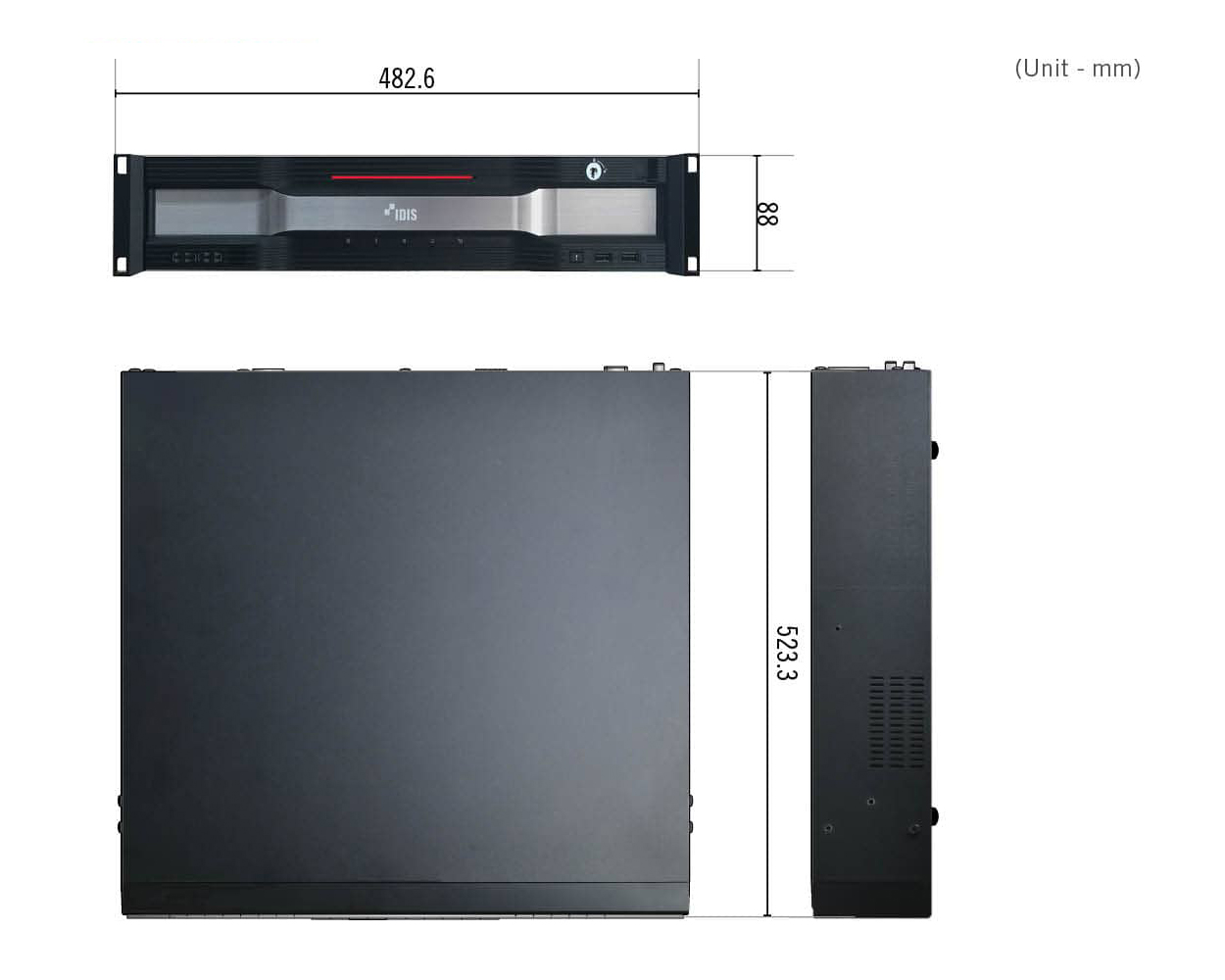

UNIT Dimensions (W x H x D)482.6mm x 88mm x 523.3mm (19" x 3.5" x 20.6")
Unit Weight10.9kg (24.03lb) (with 2 HDDs)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputAC 100-240 V, 50/60Hz, 6.0 - 3.0A
Power ConsumptionTBD
ApprovalsFCC, UL, CE, CB, KC, PSE
