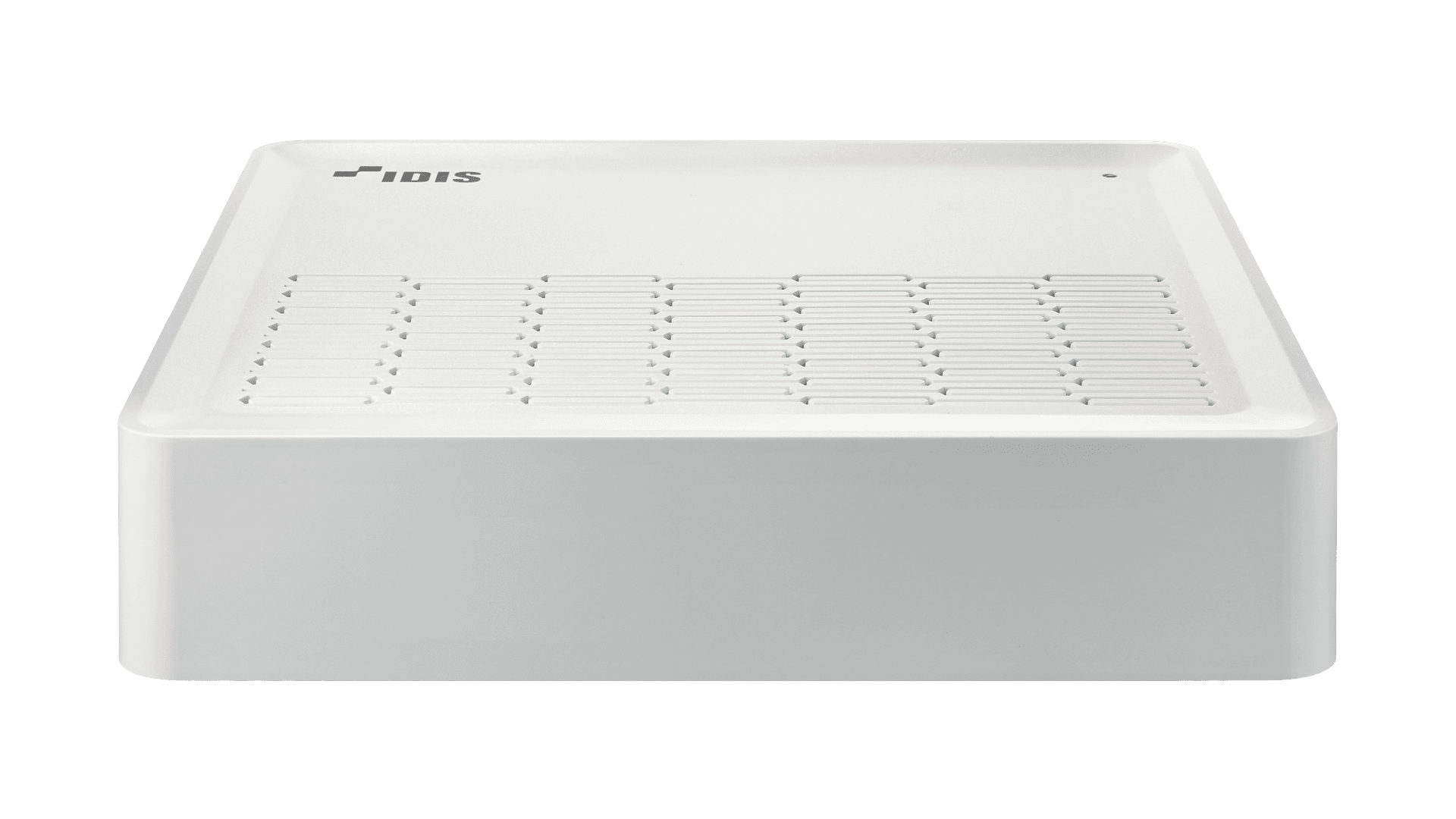

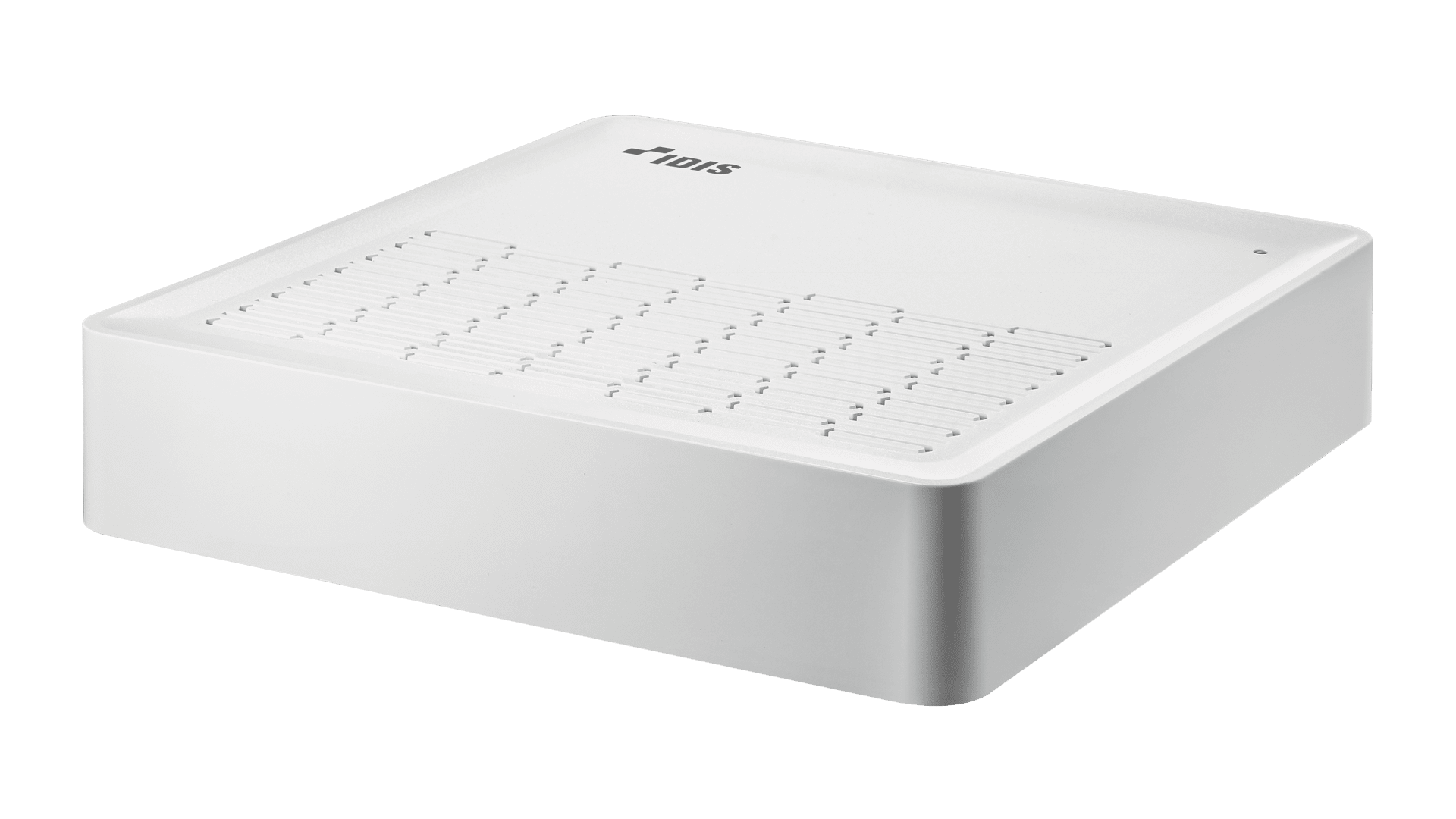

3.5’’ HDD 4ch DirectIP NVR
  • Total incoming throughput 50Mbps
  • Up to 120ips 5MP real-time recording
  • Up to 120ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Built-in 4 channel PoE Switch
  • Supports one click network configuration through FEN service
Video Inputs4 IP Channels
Max. Incoming Throughput50Mbps
Supported CameraDirectIP

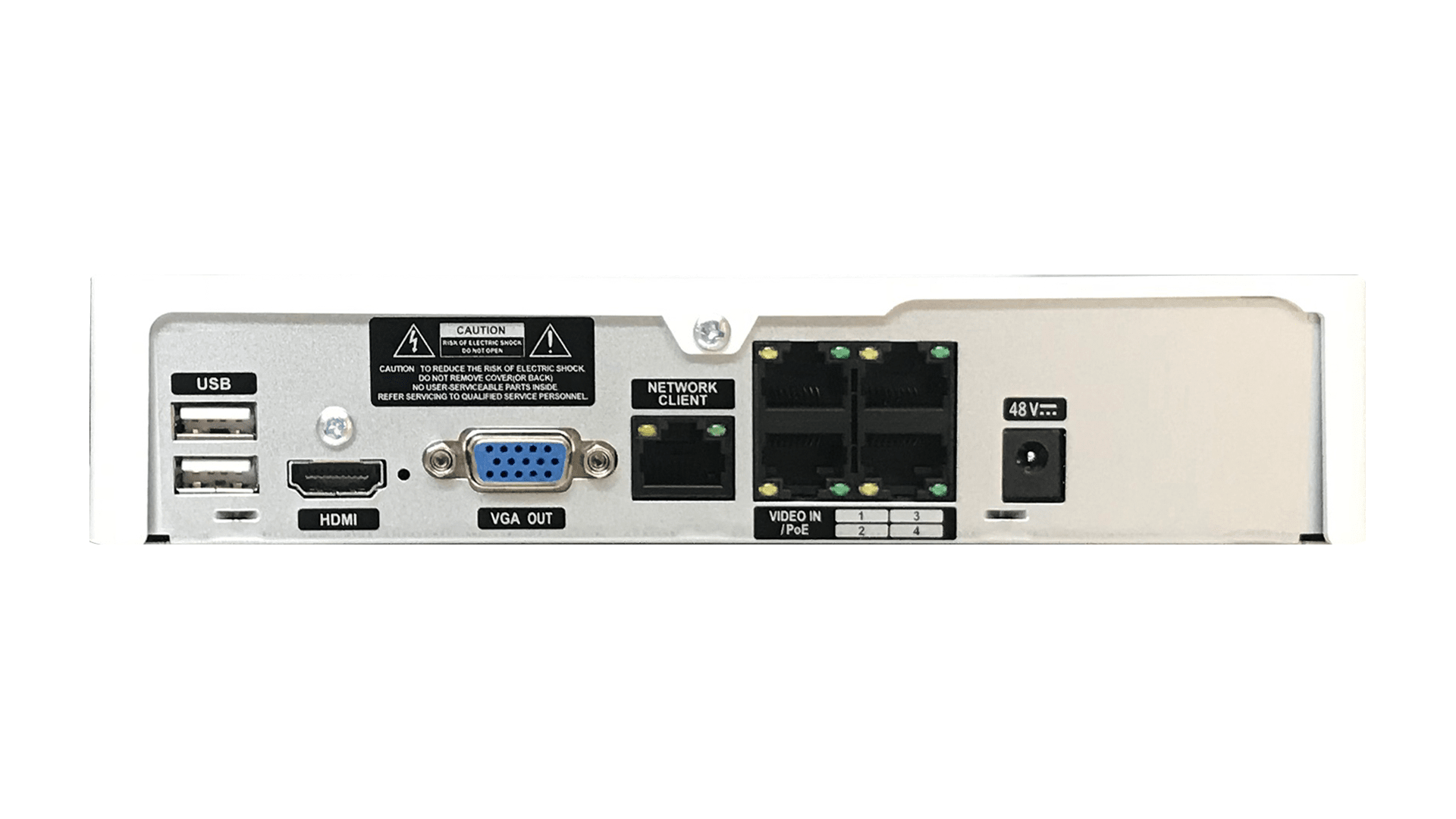

Video Outputs1 HDMI, 1 VGA
Display Resolution1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 120ips
Digital Zoomx2 ~ x12
Max. Throughput20Mbps, 120ips@5MP
Recording ResolutionUp to 5MP (Depending on IP Camera)
CompressionH.265, H.264
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsMotion Detection, Trip-zone, Tampering, Video Loss, Etc.
Performance4ch Full HD Synchronous Playback
Search ModeTime-lapse, Event Log, Motion
Digital Zoomx2 ~ x12
HDDSATA x1, (Up to 6TB Capacity, 3.5")
Total CapacityThe maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
Data Export DeviceUSB HDD, USB Stick
Client ConnectionFast Ethernet (Client) x1
Video In ConnectionFast Ethernet (IP Camera) x4
Transmission Speed20Mbps
Camera PowerPoE (IEEE 802.3at Class 4) Supported 4 Ports, 30W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioNo
Client ViewerIDIS Center, IDIS Mobile, IDIS Solution Suite, IDIS Web(web.idisglobal.com only)
Audio In/ OutNo
Alarm In / OutNo
Alarm Reset In-
Serial InterfaceNo
USBUSB 2.0 x 2
User InterfaceMouse
Operating SystemEmbedded Linux

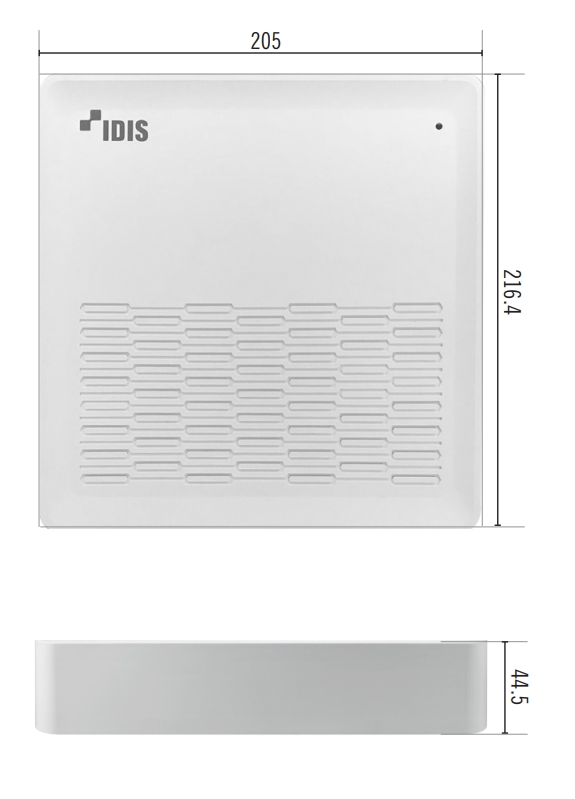

UNIT Dimensions (W x H x D)205mm x 44.5mm x 216.4mm (8.07" x 1.75" x 8.52")
Unit Weight1.27 kg ( 2.80 lb) (with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputNVR Adaptor (Input : 100-240V~, 50/60Hz, 1.2A, Output : 48V , 1.0A)
Power ConsumptionNVR: 48V , 0.81A, Max. 39W
PSE : Max. 30W
ApprovalsKC, CE, FCC
