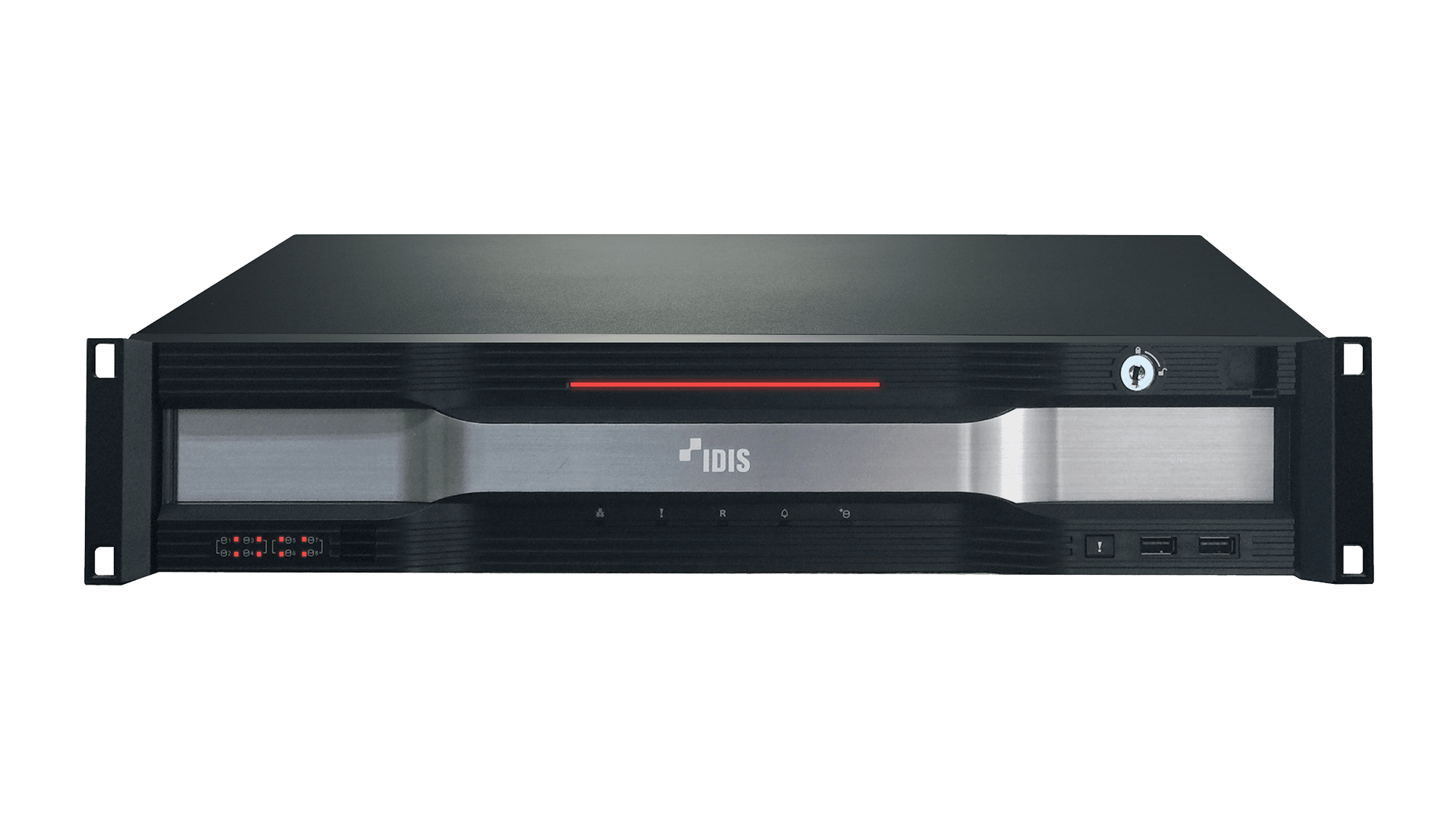

IDIS Enterprise NVR
/ NDAA Compliant
  • Pre-installed with IDIS Solution Suite VMS
  • Compatible with 10TB HDD
  • Tested and validated with IDIS Solution Suite up to 64 Full HD H.264/265 IP cameras
  • Storage configuration: 8 SATA + 3 eSATA Ports
  • Supports up to 64 Full HD cameras in real-time for enterprise-level surveillance systems
  • 400Mbps maximum recording bandwidth per server
  • Complete compatibility with IDIS components: IP cameras, analog DVR, DirectCX TVR, DirectIP NVR, and encoders
  • 2U rack mount chassis
  • Supports H.264, H.265 compression, and Intelligent Codec
  • Supports Onvif Profile S, Axis, Panasonic, etc.
  • Compatible to 10tera Byte HDD
IDIS Solution SuiteCompatible with Expert and Federation
Network Connection2 GbE RJ-45 Ports (1000Base-T)
Recording Data RateUp to 400Mbps
Number of Cameras64Ch Recommanded
Hard Disk Drive Configuration8 SATA + 3 eSATA RAID 1, 5, 10 Supported
Compatible to 10tera Byte HDD
SSD240G SSD for Operating System (M.2 type)
Operating SystemMicrosoft® Windows Embedded Standard 8
ProcessorIntel® I7-7700, 3.6GHz
MemoryDDR4 PC-17000, 16GB
Video Outputs1 HDMI, 1 DP, 1 VGA
USB6 ( 2 Front USB 2.0 + 2 Back USB 3.0 + 2 Back USB 2.0)
RS-2321 (DB9)
Form Factor2U RACK Mount Chassis
Dimensions (W x D x H)482.6mm x 88mm x 523.5mm (19" x 3.5" x 20.6")
Weight27.8 lbs. (12.6kg)
Power InputAC 100-240V~, 50/60 Hz, 6.0 - 3.0A (Redundant)
Power SupplyDual Power (REDUNDANT SMPS)
Power Consumption190W
Operating Temperature0°C to 40°C (32°F to 104°F)
Operating Humidity0% to 90%
Power Cord 2
CertificationsFCC, CE, CB, UL, PSE
