DH-2328PF

DirectIP® Gigabit PoE Switch
  • Individual port data transmission to DirectIP™ NVR
  • PoE (IEEE 802.3af, IEEE 802.3at ) compliant
  • Maximum per-device PoE delivery of 380W available for 1~24 RJ45 ports
  • Central power control for greater network utility
  • Supports 24 RJ45 ports and 4 SFP slots
System
CPU1Ghz single core
System Memory512MB SDRAM, 256MB Flash
Switching Capacity56Gbps
Connectivity
Copper Service Port24 RJ45 Connectors
(10/100/1000BASE-T)
Copper Uplink Port-
Optical Uplink Port4 SFP Slot (1000BASE-X)
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 24 IEEE 802.3af PDs
or Up to 12 IEEE 802.3at PDs
PSE Power54.5VDC, 600mA, PoE 24 ports, max. 380W
General

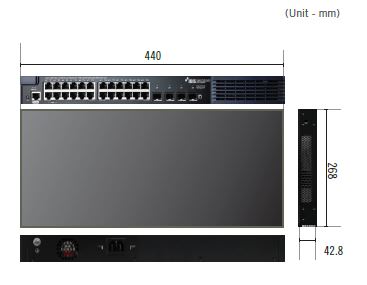

Diemensions(W x H x D)440mm x 42.8mm x 268mm (17.3" x 1.7" x 10.5")
Weight4.28kg (9.42lb)
Operating Temperature0°C to +50°C (-32℉~ 122℉)
Power InputAC100-240V, 50-60Hz, 5.5A~2.5A
Power Consumptionmax 460W
ApprovalsFCC, CE, KC
INSTALLATION ENVIRONMENT ACCESSORY CONFIGURATION
MANUAL DH-2328PF Manual v1.0 Download
A&E SPECIFICATION DH-2328PF A&E Specification v1.2 Download
BROCHURE DH-2328PF Download
