AL-1112

Alarm Box
  • Supports DirectIP™ NVR
  • Supports IDIS Solution Suite
  • 4 Relay Output
  • 8 Alarm Input
  • DC Output for Small Power Devices

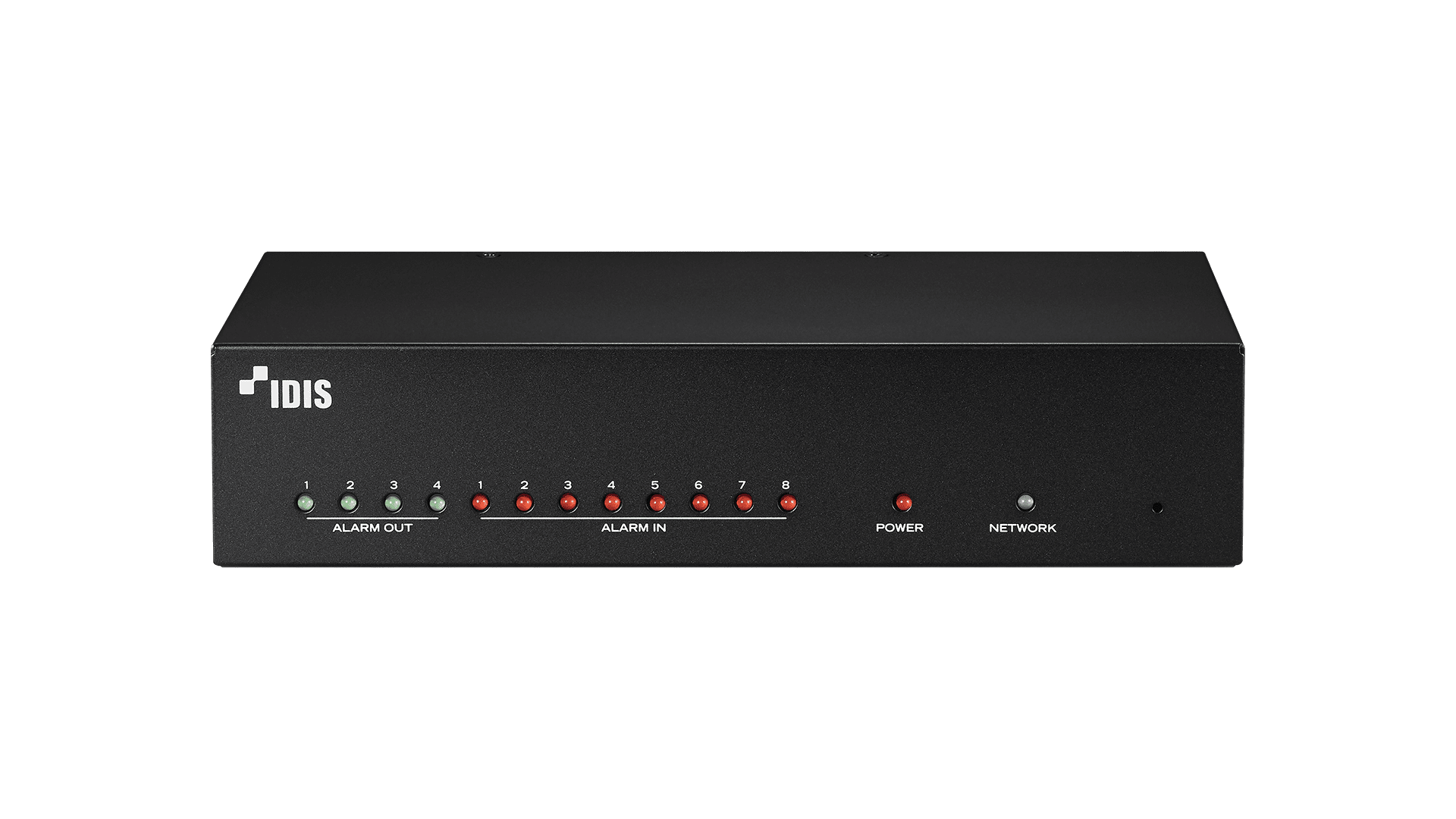

  • LED Indicator of Alarm Status

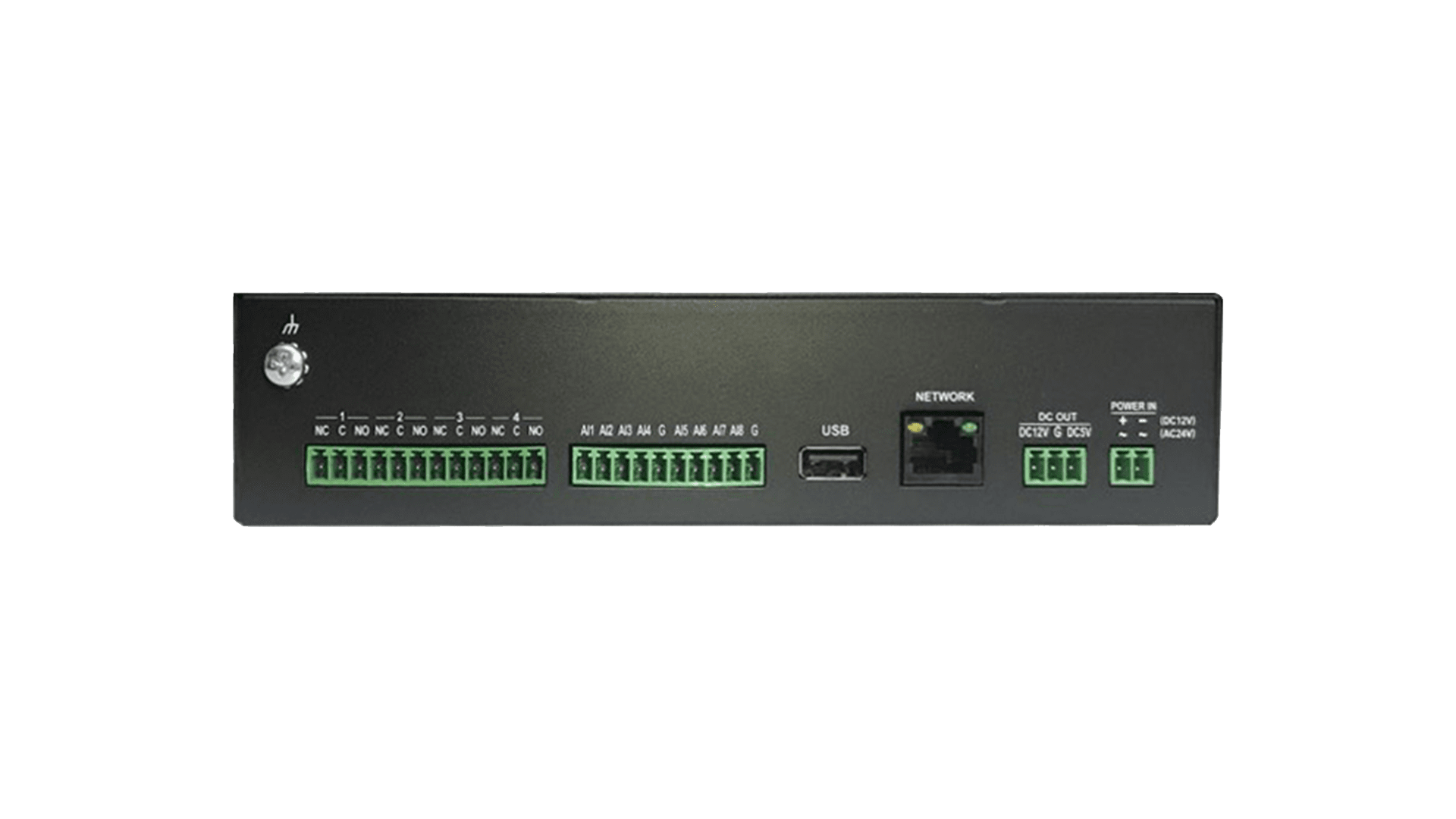

Interface
Alarm Input8 Digital-Input
- Dry contact, Wet contact
High : Open or DC 5V ~ DC 30V
Low : Short or DC 0V ~ DC 1.8V
Alarm Output4 Relay-out
- NC, NO, COMMON
Power Output12VDC(300mA), 5VDC(400mA)
Ethernet10/100Mbps
DirectIP SupportedYes
USBYes(Spare)
General

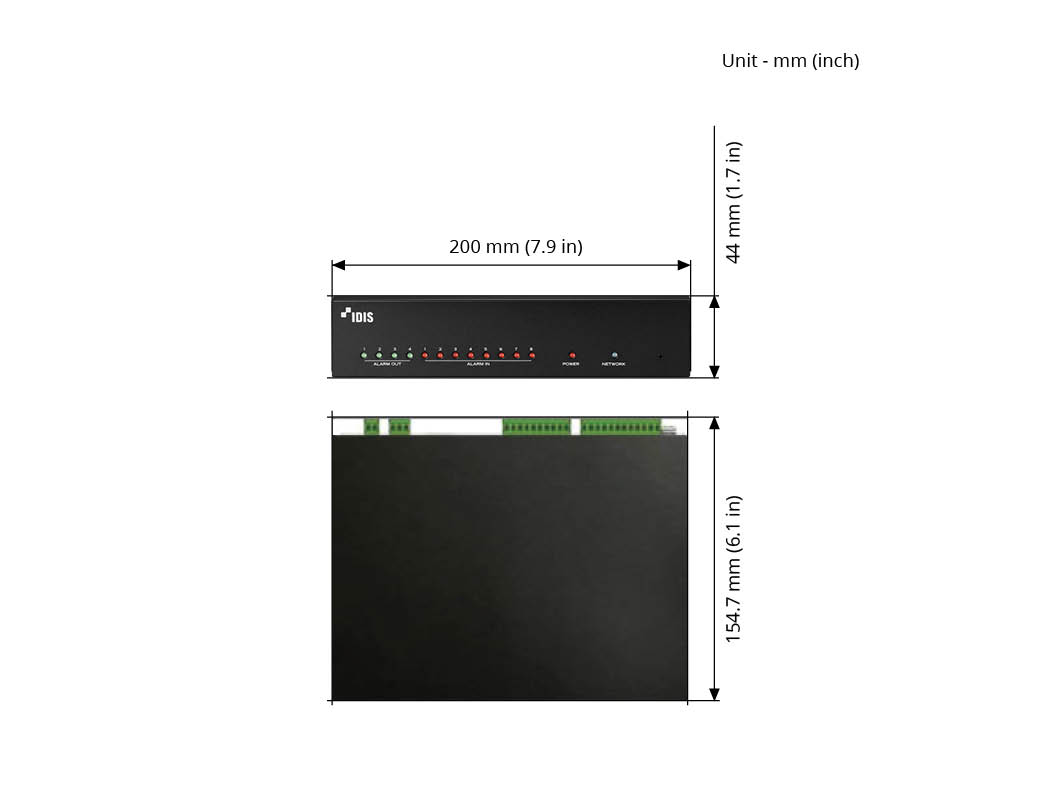

Dimension (W x H x D)200mm x 44mm x 154.7mm (7.9” x 1.7” x 6.1”)
Unit Weight0.77kg (1.7lb)
Operating Temperature-10°C ~ +50°C (+14°F ~ +122°F), Starting up at above 0°C (32°F)
PoE(class)Yes(IEEE 802.3at Class 4)
Power source12VDC, 24VAC, PoE
Power Consumption20W
ApprovalsFCC, CE, KC
Installation environment Accessory configuration
MANUAL AL-1112 Manual v1.0 Download
SOFTWARE AL-1112 Firmware v1.1.0 PAL Download
SOFTWARE AL-1112 Firmware v1.1.0 NTSC Download
A&E SPECIFICATION AL-1112 A&E Specification v1.2 Download
BROCHURE AL-1112 Download
