DC-T4831HRX(A)

8M IR Bullet Camera with Heater
/ NDAA Compliance
  • 8MP (3840x2160) resolution
  • Motorized Vari-focal lens (f=2.7 - 13.5mm)
  • micro SD/SDHC/SDXC
  • Two-way audio(DC-T4831HRX only)
  • Alarm in / out
  • IK10 / IP67 supports
  • Built-in heater
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (Distance : 40m / 131.2ft )
  • 3-axis mechanical design for installation
  • Supports ONVIF
  • NDAA Compliance

DC-T4831HRX(A)

8M IR Bullet Camera with Heater
/ NDAA Compliance
  • Motorized Vari-focal lens

  • IP67

  • IR LED

  • High Resolution

Video
Image Sensor1/2.8" CMOS
Max. Resolution3840 x 2160
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Lengthf=2.7-13.5mm
ApertureF1.8 - 3.32
Iris ControlDC IRIS
Angular Field of ViewWide : 110.6°(H) 57.3°(V) 134.1°(D) Tele : 32.6°(H) 18.3°(V) 37.4°(D)
Min. IlluminationCOLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON)
Dynamic Range120dB(True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)40m/131.2ft (6ea)
Image SettingConfigurable Exposure, White Balance, Sharpness
Digital Noise ReductionConfigurable 2DNR/3DNR
Backlight CompensationOn / Off
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fog-
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video CompressionH.265, H.264 (MP) M-JPEG
Intelligent CodecSupported
Bitrate ControlH.265 - CBR / VBR, H.264 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes(DC-T4831HRX only)
IP Camera Protocol DirectIP™ Mode : DirectIP 2.0, ONVIF Profile S
Max. Frame RateDirectIP™ Mode : 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR)
Supported Resolution3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
Multi-video StreamingDirectIP™ Mode : Quaruple Streaming
Network Protocols DirectIP™ Mode : DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Security DirectIP™ Mode : SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP™ Mode : DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio detection(DC-T4831HRX only), Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ Out1 / 1(DC-T4831HRX only)
Alarm In / Out1 / 1
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67, Heater
Operating Temperature-40°C ~ +55°C (-40°F ~ +131°F) / Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power SourcePoE (IEEE 802.3af Class 3), DC12V
Power Consumption12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 11.7W
ApprovalFCC, CE, KC
Mechanical

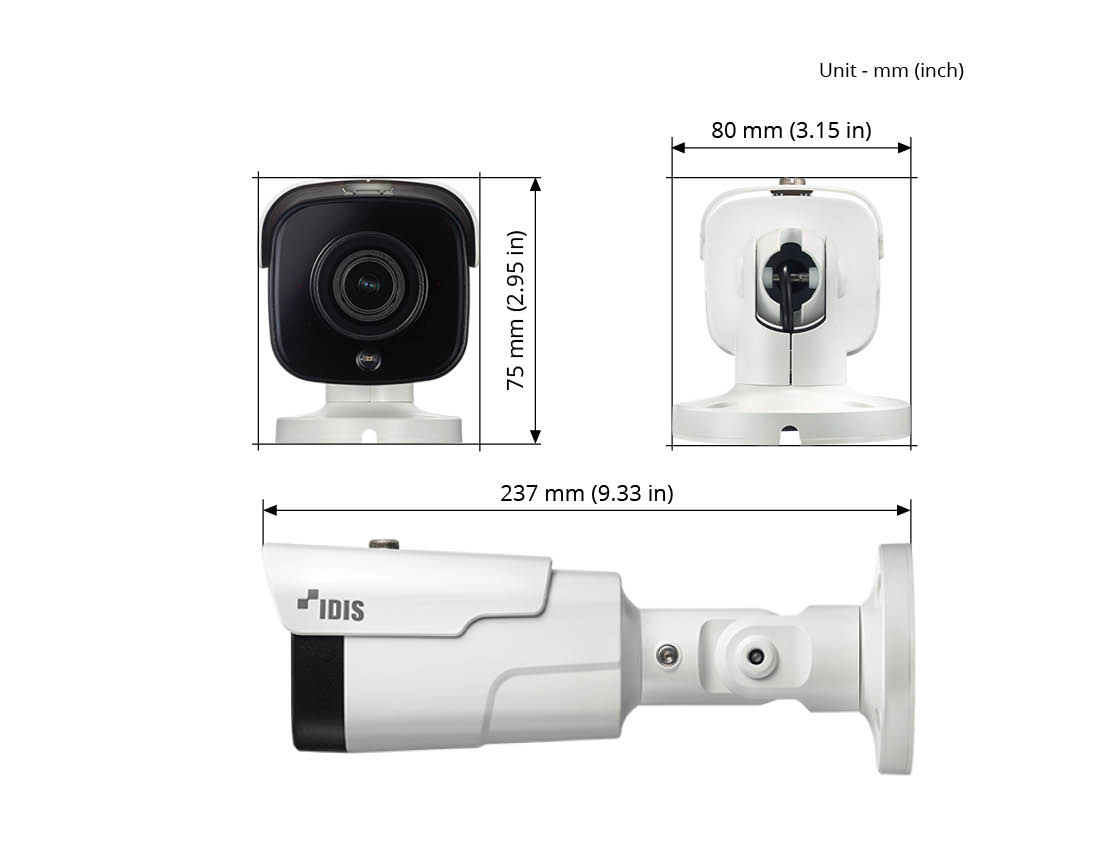

Dimensions (W x H)80mm X 75mm X 237mm(3.15" x 2.95" x 9.33")
Weight1.006kg
