| VIDEO |
| Image Sensor | 1/2.8 |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8mm |
| Aperture | F2.0 (f=2.8mm) |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6° (H), 61.45° (V), 127.3° (D) |
| Pan / Tilt Range | Pan: -170° ~ 170° Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109° |
| Min. Illumination | COLOR : 0.01 lux @ F1.2 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR Cut Filter with Auto Switch |
| IR Distance (LEDs) | 40m / 98.4 ft (4ea) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Digital Noise Reduction | Configurable 2DNR / 3DNR |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Intrusion, Motion Detection, Left/Rem Object, Tampering, Region Entry/Exit |
| Optional | Face Detection, Audio Detection |
| NETWORK |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - VBR / CBR H.264 - VBR / CBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920 x 1080, 1280 x 720, 640 x 360, 352 x 240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer(NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT |
| Trigger Event | Motion Detection, Alarm in, Audio Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (With Image) |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| ENVIRONMENTAL |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ 60°C
*Starting Up at Above 0°C (32°F) |
| Operating Humidity | 0% ~ 95% |
| ELECTRICAL |
| Power Source | PoE (IEEE 802.3af Class 2) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 4.6W |
| Approvals | FCC, CE, BIS |
| MECHANICAL |

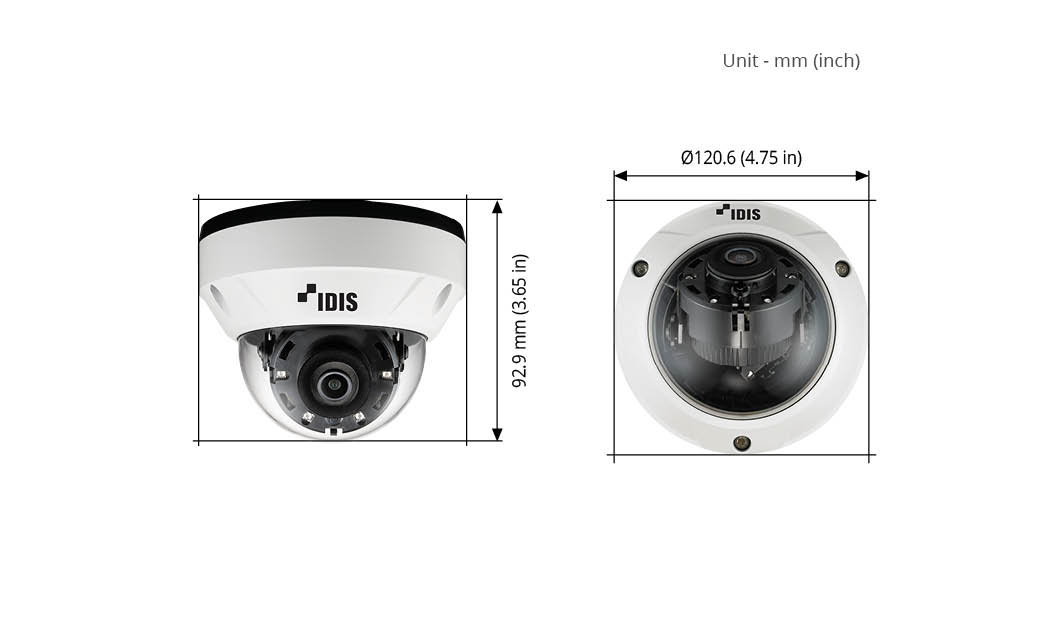

| Dimensions | Ø120 x 92.9mm (Ø4.72” x 3.65”) |
| Weight | 0.465kg (1.02lb) |
2MP
Fixed Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
IR Cut Filter Removable
NDAA & TAA Compliant
TAACompliant
