| Video |
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6 ~ 216mm |
| Aperture | F1.36 ~ F4.6 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 57.4°(H), 33.1°(V), 65.2°(D)
Tele : 1.9°(H), 1.1°(V), 2.2°(D) |
| Min. Illumination | Color : 0.02 lux @ F1.36
B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 350 m / 1,148.2ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~180°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~180°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips :1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical |
| Power Source | 24VAC, High-PoE (75W) |
| Power Consumption | Max 39.6W(Heater/IR on)
HEATER/IR OFF
24V~, 1.6A, 26.2W, 50/60Hz
High-PoE, 50-57V, 23.6W
HEATER/IR ON
24V~, 2.3A, 39.6W, 50/60Hz
High-PoE, 50-57V, 35.6W |
| Approval | FCC, CE(50130-4), KC |
| Mechanical |

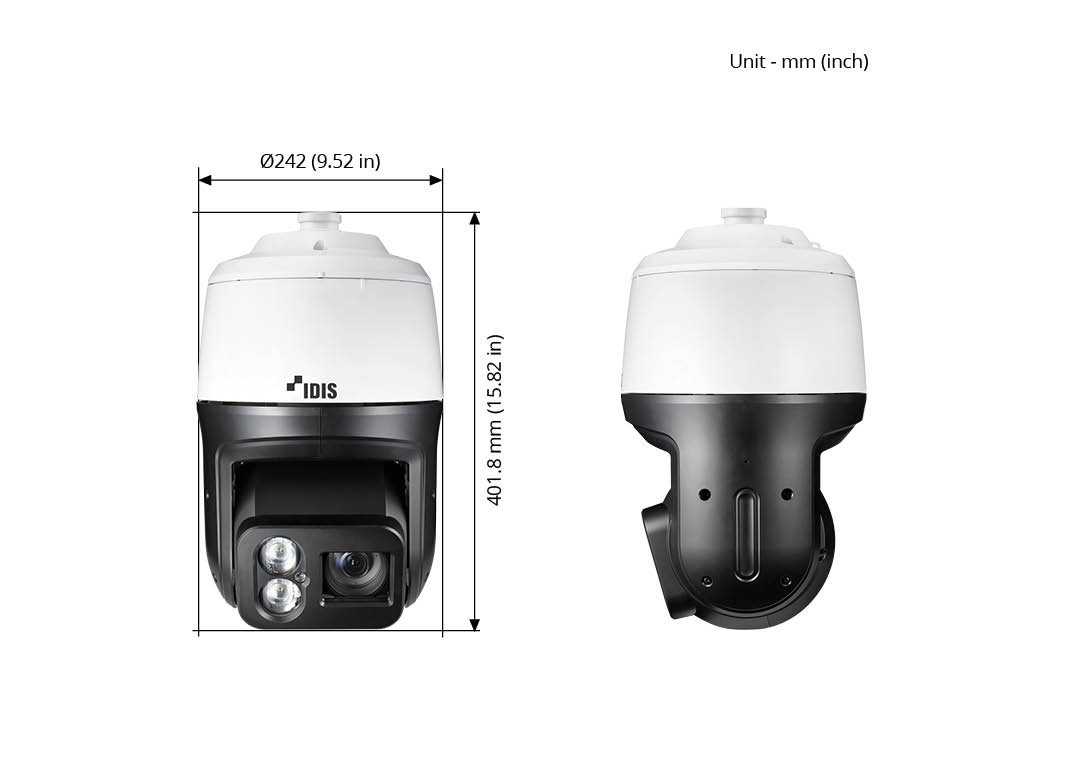

| Dimensions | Ø242mm x 401.8mm (Ø9.52" x 15.82") |
| Weight | 6.7kg (14.77 lb) |
2MP
Zoom Lens
Heater
IR LED
True WDR
Easy Installation
Two-way audio
IP66
PoE
IR Cut Filter Removable
NDAA Compliant
TAACompliant
