2MP
Zoom Lens
True WDR
Two-way audio
PoE
Easy Installation
NDAA Compliant
TAACompliant
| Video | |
| Image Sensor | 1/2.8" |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 5.3 ~ 64mm |
| Aperture | F1.6 ~ F2.8 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 58.2º(H), 34º(V), 65.3º(D) Tele : 4.83º(H), 2.8º(V), 5.7º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0.01 lux @ F1.6 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 420°/sec) |
| Tilt Range | 180° (0~180°) |
| Tilt Speed | 0.02~240°/sec (preset 420°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12VDC, 9.2W / PoE (IEEE 802.3af Class 3), 10W |
| Approval | FCC, CE(50130-4), KC, UL |
| Mechanical | |

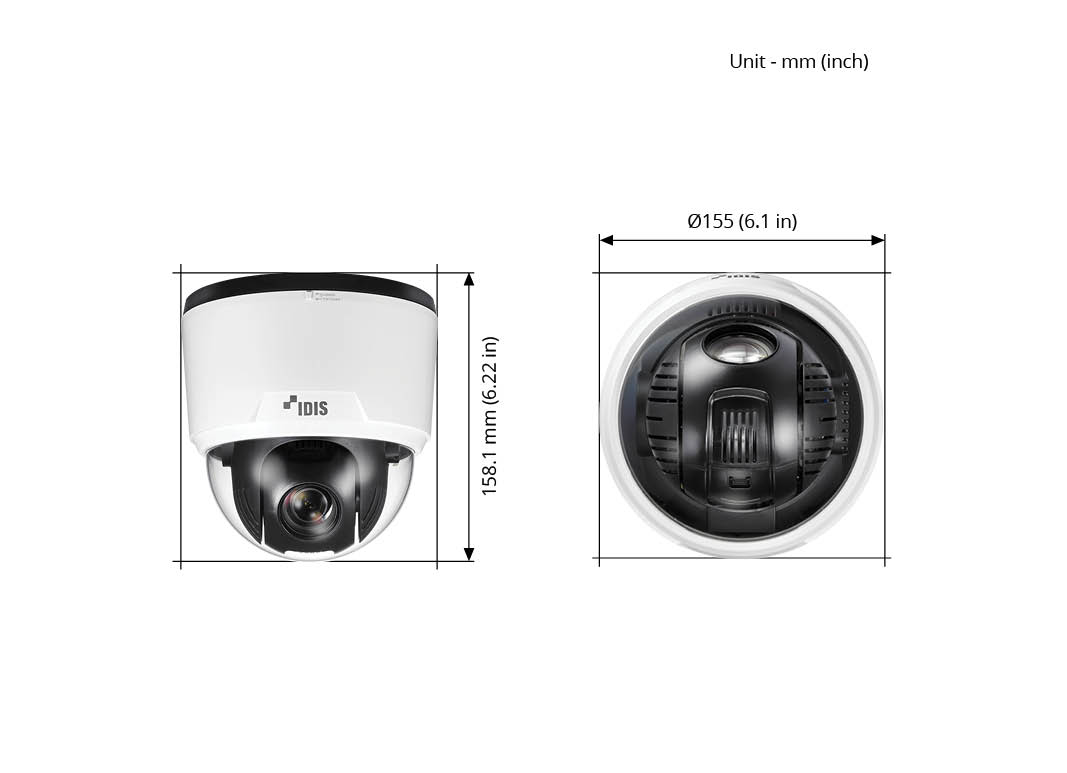

| Dimensions | Ø155mm x 158.1mm (Ø6.1" x 6.22") |
| Weight | 1.0 kg |
| INSTALLATION ENVIRONMENT | ACCESSORY CONFIGURATION |
|---|---|
| Wall |
DA-MA2100
DA-MA2100
+
WALL MOUNT
DA-WM2050
OR
JUNCTION BOX
DA-JB2200
|
| Ceiling |
DA-MA2100
DA-MA2100
+
CEILING MOUNT
DA-CM2050
OR
JUNCTION BOX
DA-JB2200
|
| Corner |
DA-MA2100
DA-MA2100
+
WALL MOUNT
DA-WM2050
+
Corner Mount
DA-RM2000
|
| Pole |
DA-MA2100
DA-MA2100
+
WALL MOUNT
DA-WM2050
+
Pole Mount
DA-LM2000
|
| ETC |
Flush Mount
DA-FM4600
|
