DC-T1445WRA850nm

License Plate Recognition Camera
/ NDAA Compliant
  • 4MP Resolution
  • Motorized Vari-focal lens (f=8 - 32mm)
  • IR 850nm (Distance : 50m / 164')
  • Alarm in/out
  • IP67 / IK10
  • PoE (802.3at) / DC 12V±
  • 3-axis mechanical design for installation
  • Supports ONVIF Profile S/T/G/M
Video
Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution2688x1520
Scanning ModeProgressive Scan CMOS
Lens Type4X Optical Zoom
Focal Length8~32mm
ApertureF1.6~F1.7
Iris ControlAuto
Angular Field of ViewWide : 44°(H) 25°(V) 51°(D) Tele: 13°(H) V7°(V) 15°(D)
Min. IlluminationColor: 0.005Lux@F1.6 B/W: 0Lux (IR LED ON)
Electronic Shutter Speed1/100000s~1s
Day and NightDay/Night/Auto/Customize/Schedule
IR Distance (LEDs)50m
Image SettingBrightness/Contrast/Saturation/Sharpness
Backlight CompensationBLC
De-fogYes
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic)
Intelligent VideoBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Network
Video CompressionH.265 +/H.265(HEVC)/H.264 +/H.264/MJPEG
Bitrate Control16Kbps~16Mbps(CBR/VBR Adjustable)
Audio CompressionG.711/AAC/G.722/G.726
Two-way AudioSupport
IP Camera ProtocolONVIF Profile (S/T/G/M)
Max. Frame Rate60Hz:60fps@2688x1520,2304x1296,1920x1080,1280x720
Supports Resolution2688x1520
Multi-video StreamingPrimary - 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 12 - Secondary - 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) - Tertiary - 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP
SecuritySSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS
Ethernet1*RJ45 10M/100M Ethernet
Edge StorageSupport microSD/SDHC/SDXC Card Local Storage,
ALARM AND EVENT
Trigger EventBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event NotificationFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification
Audio In/ Out1/1
Alarm In / Out1/1 (Integrated Cable - 2/2 (Cable Out Version)
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP67
Operating Temperature-40℃~60℃
Operating Humidity0~95%(Non-condensing)
Electrical
Power SourcePoE (802.3at) / DC 12V±
Power ConsumptionMin.: 3.66W (DC 12V), 4.48W(PoE) Max.: 10.88W (DC 12V),13.1W(PoE)
ApprovalEMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B)Safety CE-LVD (EN IEC 62368-1)Environment

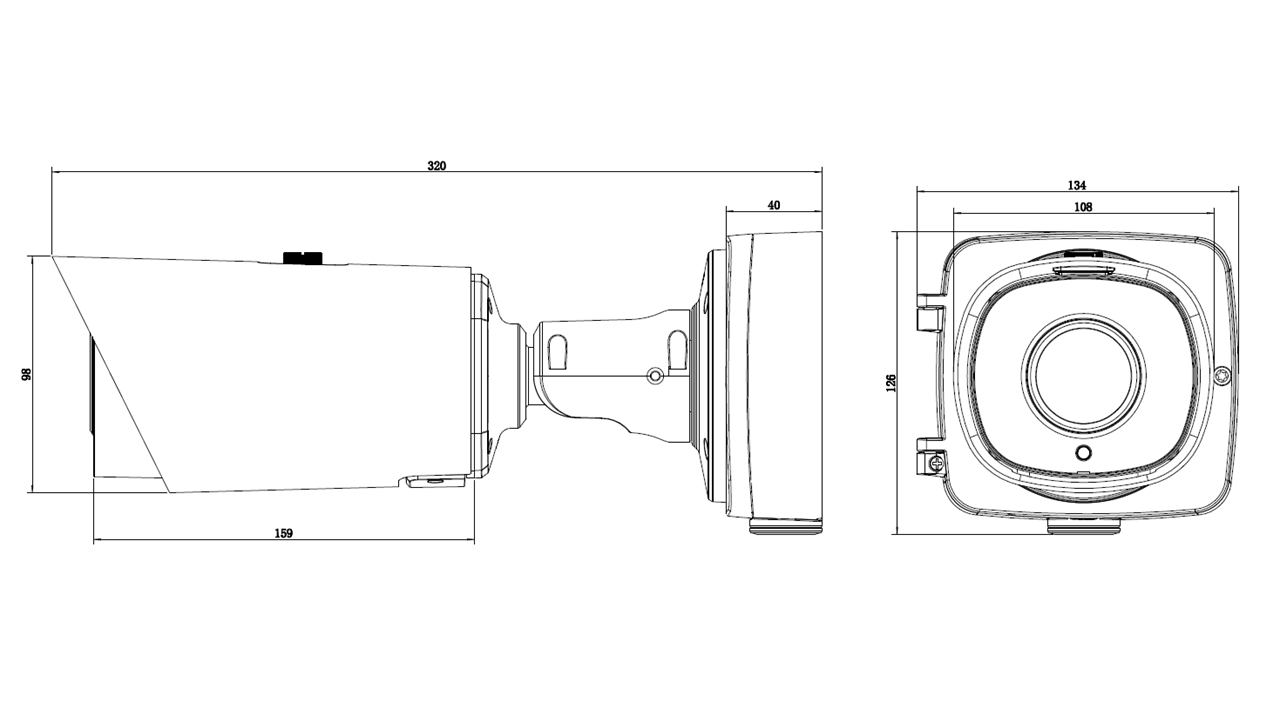

Mechanical
Dimensions (Ø x H)320mmX134mmX171mm
Weight1623g
INSTALLATION ENVIRONMENT ACCESSORY CONFIGURATION
Corner
Corner Mount
Corner Mount
DA-RM110A
Pole
Pole Mount
Pole Mount
DA-LM110A
