| Video |
| Image Sensor | Dual 1/2.8” Progressive Scan CMOS |
| Max. Resolution | 4608(H) × 1728(V) |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal lens, Dual lens: 2.8mm |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | H: 180°, V: 63° |
| Min. Illumination | Color: 0.01 Lux @ (F1.6,AGC ON) B/W: 0.001 Lux @ (F1.6,AGC ON), 0 Lux with light on |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto/Manual, 1/5 to 1/100,000s |
| Day and Night | Auto (ICR) |
| IR Distance (LEDs) | 2 (IR LED), 2 (Warm Light) IR distance up to 30m (98.4ft), Warm light distance up to 20m (65.6ft) |
| Image Setting | Image Adjustment: Brightness, Sharpness. Contrast. Saturation adjustable, White Balance: Auto/Manual Day/Night Setting: Auto, Day, Night, Time Noise Reduction: 2D/3D DNR, S/N Ratio 55db |
| Backlight Compensation | HLC, BLC |
| Mirroring / Pivot | - |
| Image Stabilizer | - |
| De-fog | Support |
| Privacy Masking | 4 areas |
| Intelligent Video | Intelligent analysis: Smart Motion detection (Human and vehicle). |
| Video Out | - |
| Pan/Tilt/Rotate |
| Pan Range | Pan: 0˚ to 360˚ |
| Tilt Range | Tilt: 0˚ to 90˚ |
| Rotate Range | Rotation: 0˚ to 360˚ |
| Network |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | - |
| Bitrate Control | CBR/VBR |
| Audio Compression | G.711, RAW_PCM |
| Two-way Audio | Yes |
| IP Camera Protocol | ONVIF (profile S/T/G/M) |
| Max. Frame Rate | 8MP (4608×1728) @15 fps |
| Supported Resolution | 4608×1728 @15fps, 1536×576 @15fps |
| Multi-video Streaming | 2 Streams |
| Network Protocols | IPv4/IPv6, RTSP/RTCP/RTP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, PPPOE, UPnP, IGMP, IGMP, FTP, NTP, STMP, 802.1x, SNMP |
| Security | IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.lx |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Recording Session Buffer (NLTSrec) | - |
| Edge Storage | Built-in, up to 1TB |
| Alarm and Event |
| Trigger Event | Motion detection, Smart Motion, Alarm input |
| Event Notification | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output, Warm white light alarm |
| Audio Alarm | Yes |
| Audio In / Out | 1/1 Audio in/out (Built-in Mic / Speaker) |
| Alarm In / Out | 1ch Input, 1ch Output |
| Environmental |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F ) |
| Operating Humidity | Less than 90% RH |
| Electrical |
| Power Source | DC12V (-15% to +20%)/PoE (IEEE 802.3af) |
| Power Consumption | Max 11.5W |
| Approval | CE/FCC |
| Mechanical |

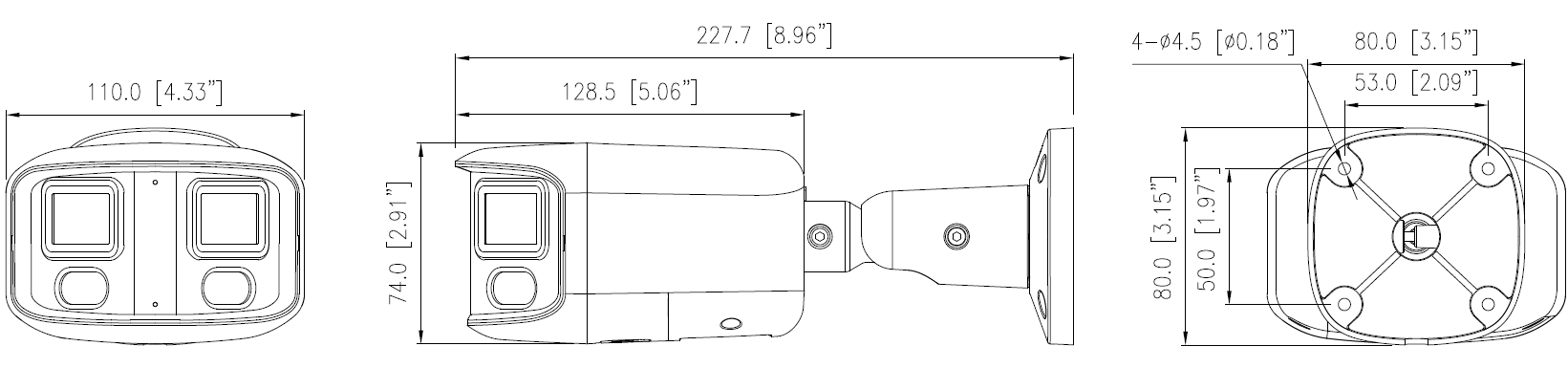

| Dimensions | 8.96 × 4.33 × 3.15 inch (227.7 × 110 × 80 mm) |
| Weight | 1.81lb (0.82kg) |
8MP
Weather Proof
IR LED
NDAA Compliant
TAACompliant
