| Camera |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Max. Resolution | 5MP, 2592H) × 1944(V) |
| Electronic Shutter | Auto/Manual, 1/5 to 1/100,000s |
| Min. illumination | Color: 0.005 Lux @ (F1.6, AGC ON) , B/W: 0 Lux with IR |
| Day & Night | IR cut filter |
| Wide Dynamic Range | True WDR |
| Angle Adjustment | Pan: ±45˚, Tilt: 0˚ to 72˚, Rotation: 0˚ to 360˚ |
| Lens |
| Lens Type | Fixed lens, Fixed focal |
| Iris | Fixed Iris |
| Focal Length | 2.8 mm, 4 mm optional |
| Max. Aperture | F2.0 / F1.6 |
| Field of View (FOV) | 2.8 mm: - H: 93.9°, V: 68.7°
4 mm: - H: 80.6°, V: 57° |
| DORI Distance |
| Lens(2.8 mm) | Detect: 68 m (223.1 ft), Observe: 27.2 m (89.2 ft), Recognize: 13.6 m (44.6 ft), Identify: 6.8 m (22.3 ft) |
| Lens(4 mm) | Detect: 88 m (288.7 ft), Observe:35.2 m (115.5 ft), Recognize: 17.6 m (57.7 ft), Identify: 8.8 m (28.9 ft) |
| DORI | DORI (Detect, Observe, Recognize, and Identify) is a standard system for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. |
| Illuminator |
| Illuminator Type | IR |
| Illumination Distance | Up to 30 m (98.4 ft) |
| Illumination On/Off Control | Auto/Manual |
| IR wavelength | 850 nm |
| Intelligent Analytics |
| Multi-Object Detection | Supports face, human, vehicle detection and capture.
Supports multiple frame modes: Full Frame, Four-corner Frame, and Mosaic. |
| Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Illegal parking, and Smart motion detection
Support alarm triggering by specified target types (human and vehicle) |
| People Counting | Supported |
| Video and Audio |
| Streaming Capability | 3 Streams |
| Stream/Frame Rate | Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps
Stream2: D1, VGA, CIF @25/30fps
Stream3: VGA, CIF, QVGA @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200 Kbps to 12 Mbps
Stream2: 100 Kbps to 6 Mbps
Stream3: 100 Kbps to 3 Mbps |
| Smart Encoder | Supported |
| Region of Interest (ROI) | Off/On (8 Zone, Rectangle) |
| Audio Compression | G.711 A-law, G.711 μ-law, RAW_PCM |
| Audio Bit Rate | 64 Kbps (G.711), 128 Kbps (RAW_PCM) |
| Image |
| Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
| Scene Mode | Indoor, Outdoor, Mirror, Corridor mode |
| Exposure Mode | Auto, Manual, Shutter priority |
| White Balance | Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
| Day/Night Setting | Auto, Day, Night, Timer |
| Noise Reduction | 2D/3D DNR |
| Image Enhancement | HLC, BLC, Defog, WDR |
| Privacy Masking | 4 areas |
| Event |
| Alarm Triggers | IVS, Motion detection, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection |
| Event Actions | Alarm record, FTP upload, SMTP upload |
| Network |
| Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
| Interoperability | ONVIF (Profile S/T/G/M), SDK, CGI |
| Max Concurrent Streams | 10 channels |
| User/Host Level | 32+ users, 3 levels: Administrator, Operator, Media user |
| Security | IP address filter, HTTPS, Illegal login lock, IEEE 802.1x |
| Web Viewer | IE11, Chrome, Firefox, Microsoft Edge |
| Interface |
| Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Built-in Microphone | Supported |
| Micro HDMI | Supported |
| Alarm Interface | 1ch Input, 1ch Output |
| SD Card Slot | Built-in, up to 1 TB |
| Reset Button | Supported |
| General |
| Language | English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English |
| Power Supply | 12 VDC (-10% to +25%)/PoE (802.3af) |
| Power Consumption | Max 4.5 W |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F ) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP67, IK10 |
| Certifications | CE EMC EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
FCC 47 CFR Part 15 Subpart B
Base: aluminum, cover: plastic, bubble: plastic |

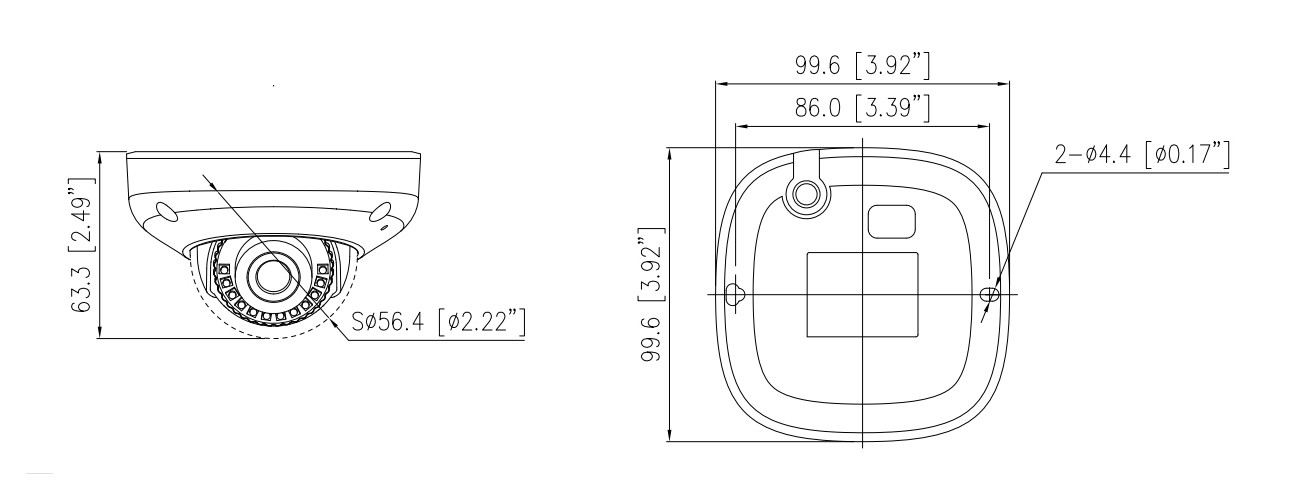

| Dimensions | 99.6 × 99.6 × 63.3 mm (3.92 × 3.92 × 2.49 inch) |
| Net Weight | 0.44 kg (0.97 lb) |
5MP
Fixed Lens
Weather Proof
Compact Design
IR LED
IP67
NDAA Compliant
TAACompliant
