2MP
Motorized focus Lens
Weather Proof
True WDR
Easy Installation
PoE
IR Cut Filter Removable
NDAA Compliant
TAACompliant
| Video | |
| Image Sensor | 1/2.8 |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 7 ~ 22mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 43.6º(H), 23.5º(V), 51.3º(D) Tele : 16.2º(H), 9.1º(V), 18.5º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 67° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.64A, 7.7W PoE, IEEE 802.3af (Class 3), 7.8W |
| Approval | FCC, CE, KC |
| Mechanical | |

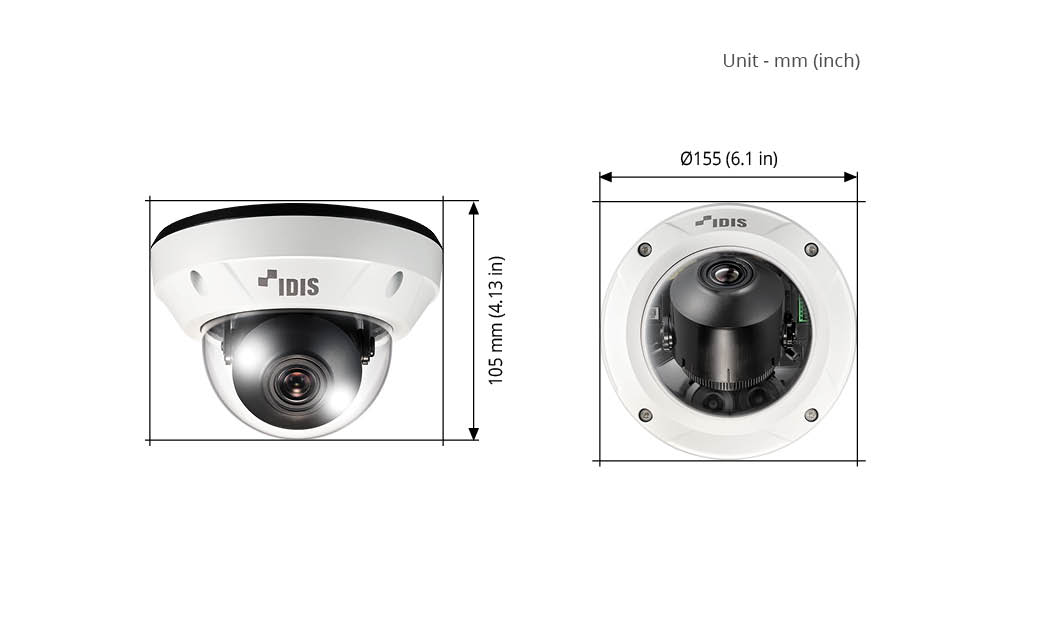

| Dimensions | Ø155 x 105mm (Ø6.1" x 4.13") |
| Weight | 0.985kg (2.17lb) |
| Installation environment | Accessory configuration |
|
Wall |
JUNCTION BOX
Model:DA-JB2200
or
DA-MA2100
Model:DA-MA2100
+
WALL MOUNT
Model:DA-WM2050
|
|
Ceiling |
JUNCTION BOX
Model:DA-JB2200
or
DA-MA2100
Model:DA-MA2100
+
CEILING MOUNT
Model:DA-CM2050
|
|
Pole |
DA-MA2100
Model:DA-MA2100
+
WALL MOUNT
Model:DA-WM2050
+
Pole Mount
Model:DA-LM2000
|
|
Corner |
DA-MA2100
Model: DA-MA2100
+
WALL MOUNT
Model: DA-WM2050
+
Corner Mount
Model: DA-RM2000
|
|
ETC |
Flush Mount
Model: DA-FM1500
|
