4ch AI in the Box
/ NDAA Compliant
  • Simply connect to a compatible IDIS NVR
  • Supports 4ch IP Camera
  • Supports the most advanced IDIS Deep-Learning Analytics (IDLA)
  • Supports Object Detection
  • Supports Intrusion
  • Supports Loitering
  • Supports Line Crossing
  • Supports Face Detection
  • Supports object detection, intrusion, loitering, line crossing, and face detection rules
  • Generating real-time event notifications with high accuracy
Video Inputs4 IP Channels
Supported DeviceDirectIP NVR (Recording functionality is not included.)
VA SupportObject Detection, Intrusion, Loitering, Line Crossing, Face Detection
Video CompressionH.265, H.264
Network Connection100M Ethernet x 1 (100Base-TX) with PD
100M Ethernet x 1 (100Base-TX) with PSE (PSE need Adaptor)
Operating Temperature0°C to 40°C (32°F to 104°F)
Operating Humidity0% ~ 90%
Power Input48V=, PoE
Power Consumption48V=, 0.8A, 38.4W
PoE, IEEE 802.3at(Class 4), 25W
DC OUTPUT : 48V=, 0.35A MAX
ApprovalFCC, CE, KC

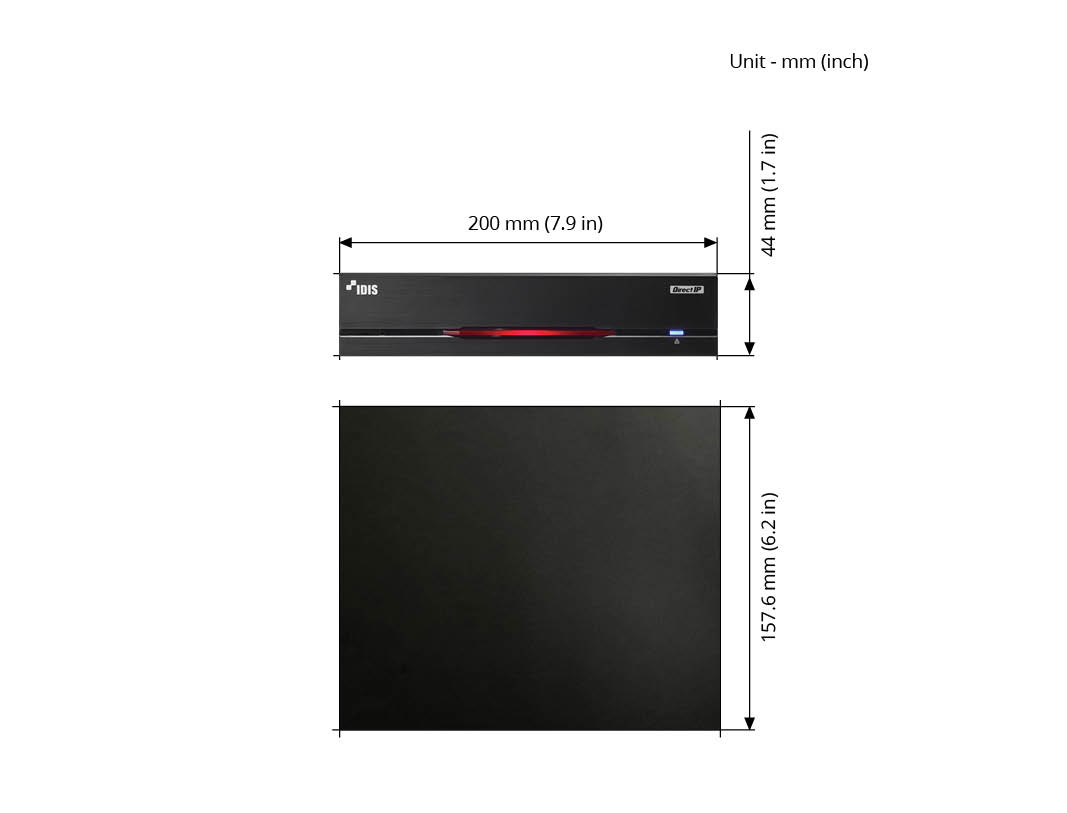

Unit Dimensions (W x H x D)200mm x 44mm x 157.6mm (7.9" x 1.7" x 6.2")
Unit Weight0.88kg (1.94 lb)
Installation environment Accessory configuration
Manual DV-1304-A Manual v2.0
Software DV-1304-A Firmware v2.6.0
A&E Specification DV-1304-A A&E Specification v1.0
Brochure DV-1304-A
