DH-2010P

DirectIP® PoE Switch
  • Individual port for data transmission to DirectIP® NVR
  • PoE (IEEE 802.3af, IEEE 802.3at) compliant
  • Maximum per-device PoE delivery of 70W available for 1~8 RJ45 ports
  • Central power control for greater network utility
  • Supports 10 RJ45 ports
System
CPUEmbedded MIPS
System Memory256MB SDRAM, 32MB Flash
Switching Capacity5.6Gbps
Connectivity
Copper Service Port8 RJ45 Connectors
(10/100BASE-T)
Copper Uplink Port2 RJ45 Connectors (10/100/1000BASE-T)
Optical Uplink Portnone
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 8 IEEE 802.3af PDs
or up to 2 IEEE 802.3at PDs
PSE Power Budget70W
General

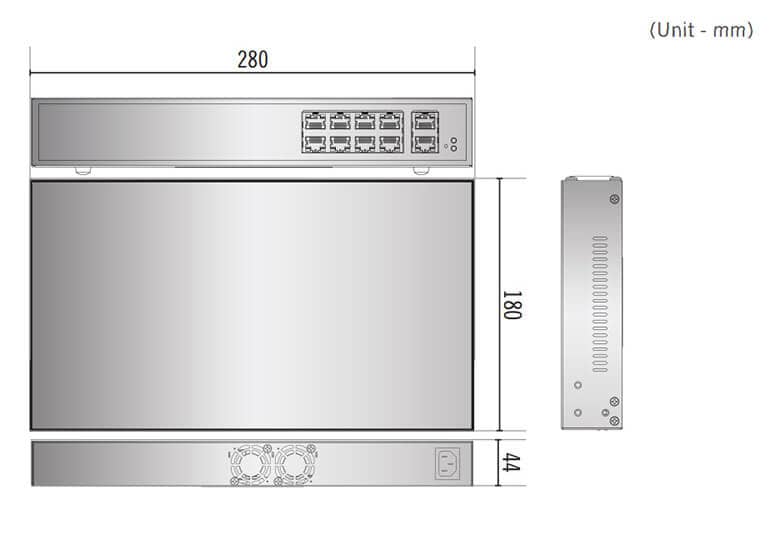

Diemensions(W x H x D)280mm x 44mm x 180mm (11.0" x 1.7" x 7.1")
Weight1.35Kg (2.97lb)
Operation Temperature0°C ~ 40°C ('32°F ~ 104°F)
Power InputAC100-240V, 2.0~1.0A, 50/60Hz
Power Consumption90W
ApprovalsFCC,CE,KC,UL,CB
Installation environment Accessory configuration
