DH-2018P

DirectIP® PoE Switch
  • Individual port data transmission to DirectIP® NVR
  • PoE (IEEE 802.3af, IEEE 802.3at) compliant
  • Maximum per-device PoE delivery of 140W available for 1~16 RJ45 ports
  • Central power control for greater network utility
  • Supports 16 RJ45 ports

DH-2018P

DirectIP® PoE Switch
  • Performance

  • Easy Installation

  • Usability

CASE STUDY

Commercial

Logistics

Public Safety

Manufacturing

System
CPUEmbedded MIPS
System Memory256MB SDRAM, 32MB Flash
Switching Capacity7.2Gbps
Connectivity
Copper Service Port16 RJ45 Connectors (10/100BASE-T)
Copper Uplink Port2 RJ45 Connectors (10/100/1000BASE-T)
Optical Uplink Portnone
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 16 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs
PSE Power Budget140W
General

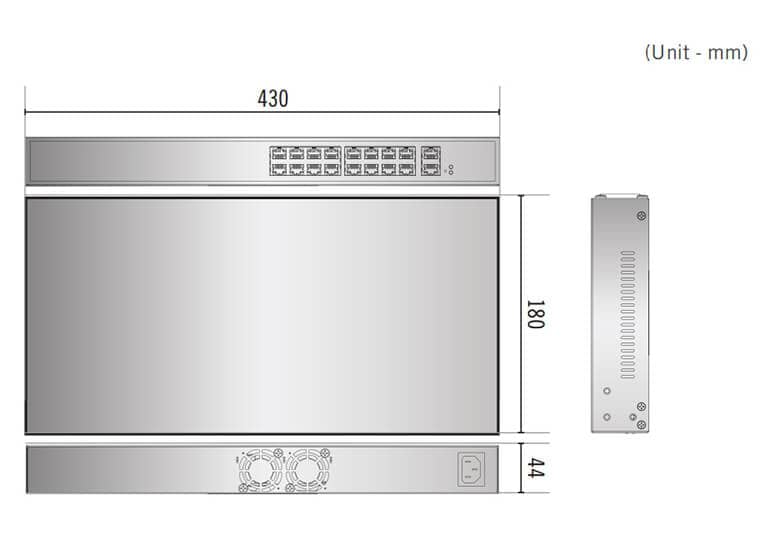

Diemensions(W x H x D)430mm x 44mm x 180mm (17.0" x 1.7" x 7.1")
Weight2.05Kg (4.52lb)
Operation Temperature0°C ~ 40°C ('32°F ~ 104°F)
Power InputAC100-240V, 2.0~1.0A, 50/60Hz
Power Consumption160W
ApprovalsFCC,CE,KC,UL,CB
