Single Port PoE Injector
  • Up to 30W of PoE Power feeding on 2-pairs
  • Compatible with IEEE 802.3af, IEEE 802.3at
  • Protects low power devices to receive only the power they need
  • Automatic detection and protection of non–standard ethernet terminals
  • Parallel slide-in design for easy installation
RJ45 Ethernet Interface_DATA I
port1 ch
ConnectivityRJ45, Auto-MDI/MDI-X sensing
Wire TitleCAT5 or better
DistanceUp to 100m
Speed10/100/1000 BASE T
RJ45 Ethernet Interface_PoE
port1 ch
Pin Assignment and Polarity4/5( ), 7/8(-)
PSE Power55V DC, Max. 30W
DistanceUp to 100m
Speed10/100/1000 BASE T
Supported StandardsIEEE 802.3at

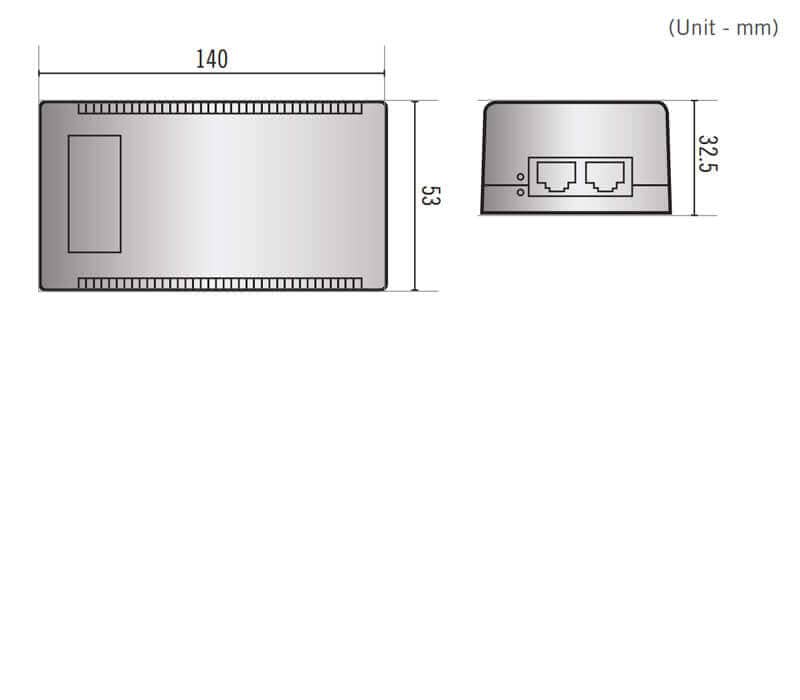

Diemensions(W x H x D)53mm x 32.5mm x 140mm (2.1" x 1.3" x 5.5")
Weight200g (0.44lb)
Operation Temperature-15°C ~ 45°C (5℉ ~ 113℉)
Power Input100 ~240V AC, 0.8A
ApprovalsFCC, CE, KC
Installation environment Accessory configuration
BIM Injector DA-PI2101 BIM File
Manual DA-PI2101 Operation Manual v1.0
Brochure DA-PI2101
