DirectIP® Gigabit PoE Switch
  • Indivisual port for data transmission to DirectIP® NVR
  • PoE (IEEE 802.3af, IEEE 802.3at) compliant
  • Maximum per-device PoE delivery of 140W available for 1~8 RJ45 ports
  • Central power control for greater network utility
  • Supports 10 RJ45 ports and 2 SFP slots
CPUEmbedded MIPS
System Memory256MB SDRAM, 32MB Flash
Switching Capacity24Gbps
Copper Service Port8 RJ45 Connectors
Copper Uplink Port2 RJ45 Connectors (10/100/1000BASE-T)
Optical Uplink Port2 SFP Slot (1000BASE-X)
PoE Power
supported StandardsIEEE 802.3af-2003 / IEEE 802.3at-2009
PD ConnectionUp to 8 IEEE 802.3af PDs
or up to 4 IEEE 802.3at PDs
PSE Power Budget140W

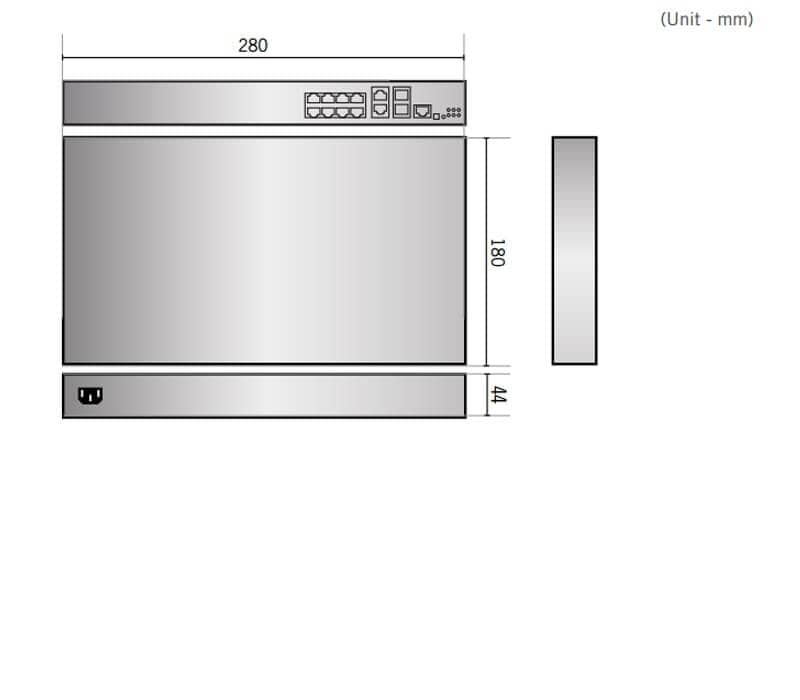

Diemensions(W x H x D)280mm x 44mm x 180mm (11.0" x 1.7" x 7.1")
Weight1.55Kg (3.42lb)
Operation Temperature0°C ~ 40°C (32°F ~ 104°F)
Power InputAC100-240V, 2.0~1.0A, 50/60Hz
Power Consumption160W
Installation environment Accessory configuration
Manual DH-2212PF Operation Manual v1.0
A&E Specification DH-2212PF A&E Specification v1.1
Software DH-20xxP Series Firmware v2.1.0
Brochure DH-2212PF
