NK-1200

Network Keyboard
  • Remote control of NVRs, network video transmitters, network video receivers and network cameras via the network connection
  • Control of NVRs by using a USB mouse via the network connection
  • Two-way audio communication
  • Convenient firmware upgrades via either the USB port or Ethernet
  • Firmware duplication and auto-recovery functions to enhance system stability
  • Management of multiple network keyboards via the network connection
  • Programmable by using the LCD screen
Communication
Interface2 x RS485(Terminal Block), 10/100/1000 Ethernet(RJ45, PoE IEEE802.3AF)
Baud Rate300 bps ~ 115,200bps
Supports protocolsOver 70 sorts of PTZ protocol(IDIS, PANASONIC, PELCO, SAMSUNG, etc.)
Supports DevicesIP Camera, NVR, IDIS solution Suite
DisplayLCD(2 Line)
USB1 x USB2.0, 1 x USB3.0
Audio in/out1(3.5mm) / 1( 3.5mm)
configurationJoystick + Main Control Board
S/W UpgradeUSB, Network
SETUP ProgramIDIS Discovery
General

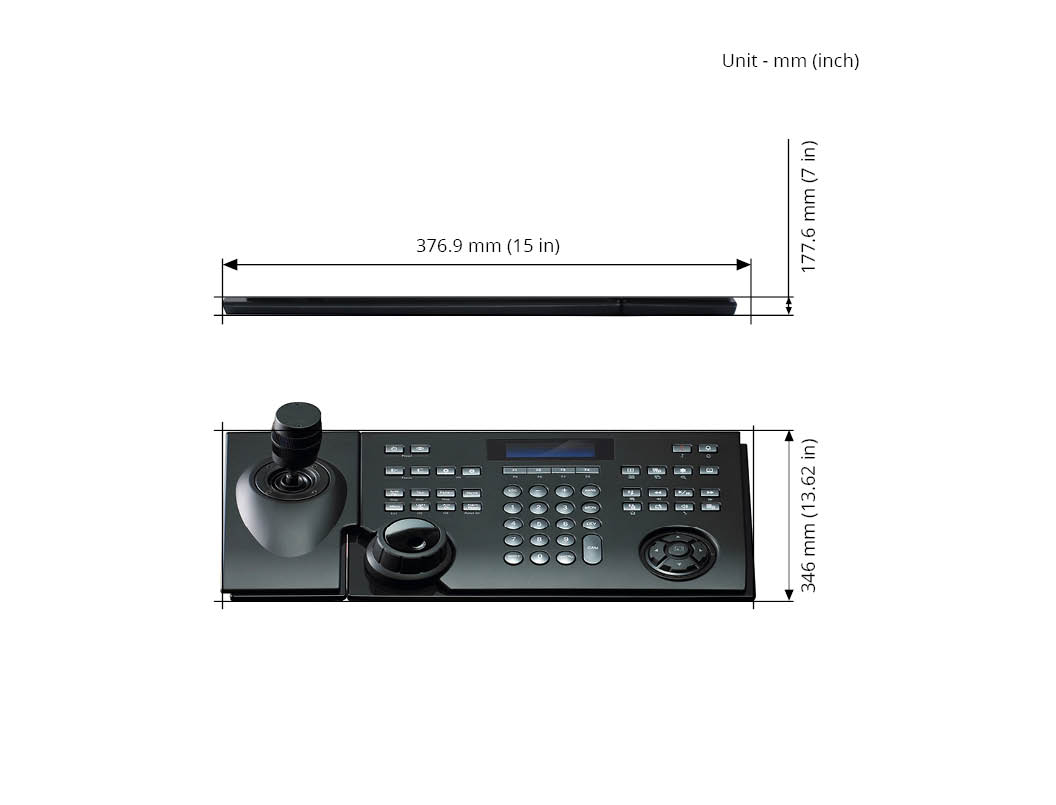

Dimension(W x H x D)376.9mm x 95mm x 177.6mm (15.0" x 3.7" x 7.0")
Unit Weight(Kg)1.1kg (2.43lb)
Operating Temperature0°C ~ 40°C ('32℉ ~ 104℉)
Power InputDC 48V, 1A, PoE(IEEE 802.3af class 0)
ApprovalsFCC, CE, KC
Installation environment Accessory configuration
