DC-D3C33HRX

12MP Vandal-Resistant IR Dome Camera with Heater
  • Easy installation with DirectIP NVR
  • 12MP (4000 x 3000) resolution
  • Motorized Vari-focal lens (f=4.5 - 10mm)
  • micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • Built-in heater
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (Distance : 30m / 98.4ft)
  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-D3C33HRX

12MP Vandal-Resistant IR Dome Camera with Heater
  • Motorized Vari-focal lens

  • IP67

  • IR LED

  • FullHD High Resolution

CASE STUDY

Retail

Commercial

Banking

Leisure

Video
Image Sensor 1/1.7" CMOS
Max. Resolution 4000 x 3000
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length f=4.5 -10mm
Aperture F1.6 - 2.6
Iris Control P-Iris
Angular Field of View [8MP mode] Wide : 90.2º(H), 48.5º(V), 106.2º(D) Tele : 41.6º(H), 23.3º(V), 47.8º(D) [12MP mode] Wide : 94.6º(H), 68.5º(V), 125.2º(D) Tele : 43.4º(H), 32.4º(V), 54º(D)
Pan/Tilt Range Pan: -176° ~ 176°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90°
Min. Illumination COLOR : 0.3 lux @ F1.6 B/W : 0 lux (IR LED ON)
Dynamic Range 120 dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs) 30 m / 98.4 ft (6 ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off / HSBLC
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer -
De-fog On / Off
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out 1 BNC(Accessory)
Network
Video Compression h.265, H.264 (MP), M-JPEG
Intelligent Codec Supported
Bitrate Control H.264 - CBR / VBR, H.265 - CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP™ Mode : DirectIP Compatibility Mode : IDIS ONVIF Profile S
Max. Frame Rate DirectIP™ Mode : 30ips : 3840x2160(WDR) Compatibility Mode : 15ips : 4000 x 3000(WDR) 30ips : 3840x2160(WDR)
Supports Resolution DirectIP™ Mode : 3840 x 2160 , 1920x1080, 1280x720, 640x360, 320x180 Compatibility Mode : 12MP mode : 4000x3000, 2592x1944, 1280x960, 640x480, 320x240 8MP mode : 3840 x 2160 , 1920x1080, 1280x720, 640x360, 320x180
Multi-video Streaming DirectIP™ Mode : Quadruple Streaming Compatibility Mode : Quadruple Streaming
Network Protocols DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
Security DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x  IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP™ Mode : DirectIP NVR Connection Compatibility Mode : IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100/1000BASE-T)
Recording Session Buffer Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio In/ Out Line-in 1ea / Line-out 1ea
Alarm In / Out Input 1ea / Output 1ea
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP67, Heater
Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) *Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source 12VDC, PoE (IEEE 802.3af Class 3)
Power Consumption 12V=, 1.0A, 12W PoE, IEEE 802.3af(Class 3)
Approval FCC, CE, KC
Mechanical

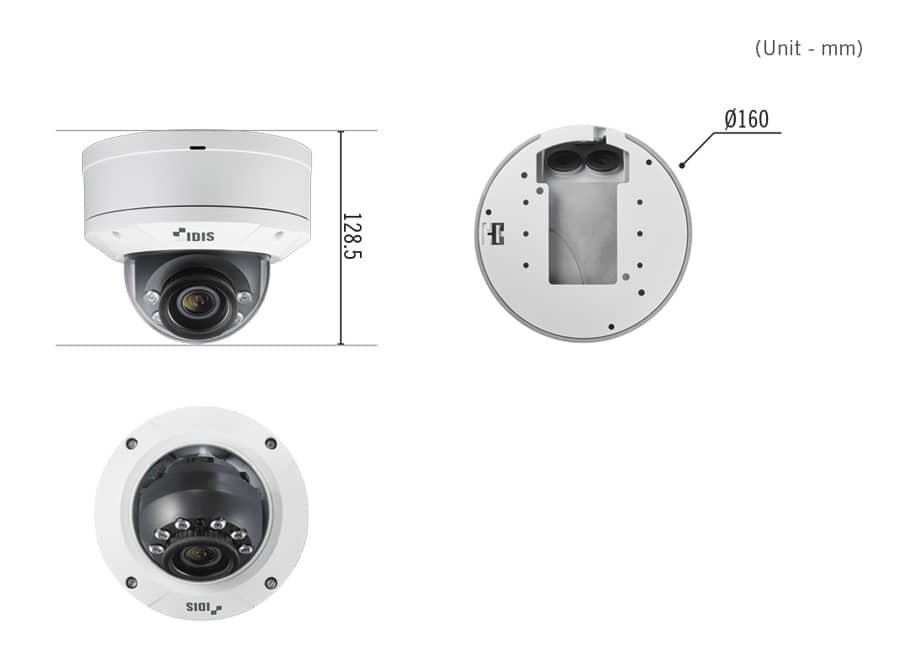

Dimensions (Ø x H) Ø160mm x 128.5mm (Ø6.30" x 5.06")
Weight 1.21 kg
