DA-EC3101R / DA-EC3101T

Ethernet Over Coax Device
  • Makes it possible to install Full HD network cameras using existing coaxial cables.
  • Supports PoE (IEEE 802.3af, IEEE 802.3at)
  • Supports plug and play without setting up special IP addresses.
  • Supports Data transfer up to 700m (UTP 100 + COAX 500 + UTP 100)
RJ45 Ethernet Interface
ConnectivityRJ45, Auto-MDI/MDI-X sensing
Wire typeCAT5 or better
DistanceUp to 100m
Speed10/100 BASE-T, half / full duplex
Speed Data throughput95Mbps
COAX Building Wiring Interface
ConnectivityBNC
Impedance75 Ω
DistanceUp to 500m
Camera Power InUp to 30W (DA-EC3101T)
General

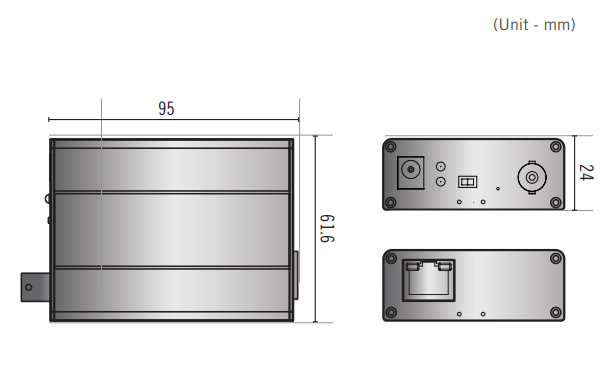

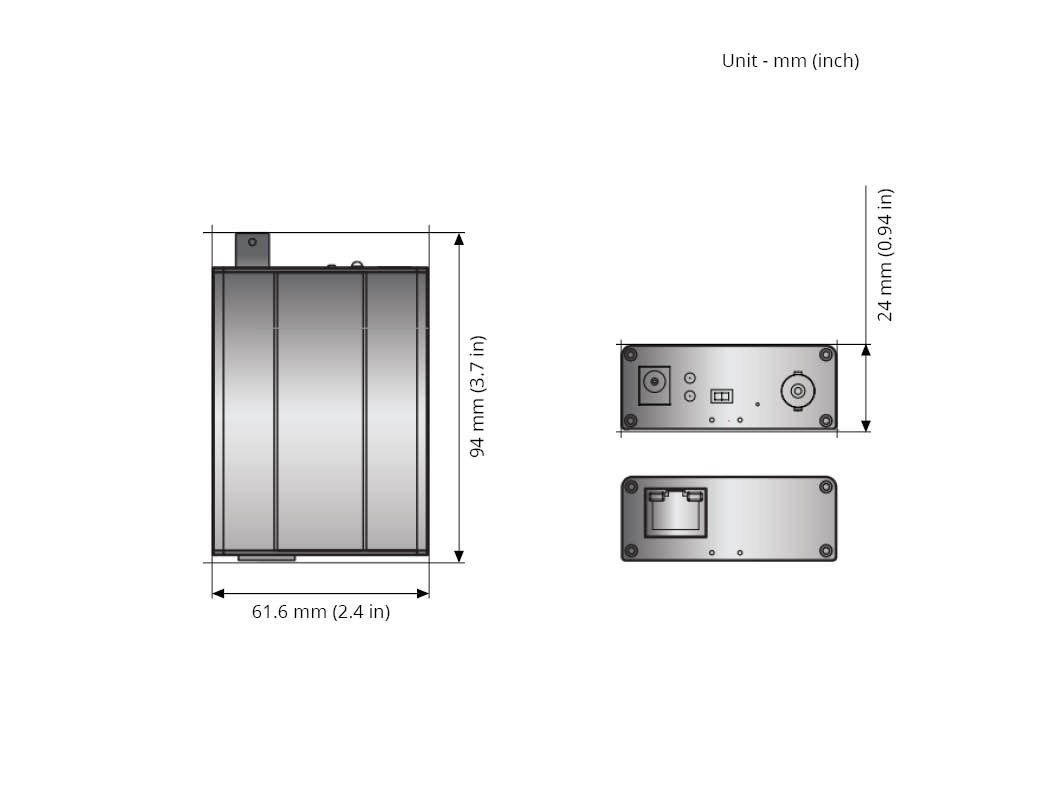

Diemensions(W x H x D)61.6mm x 24mm x 94mm
Weight105g
Operating Temperature-20°C to 60°C (-4°F to 140°F)
Power InputDC56V / 1.17A
Power Consumption65.52W
ApprovalsFCC, CE, KC
Installation environment Accessory configuration
Brochure DA-EC3101R / DA-EC3101T Manual v1.0
Brochure DA-EC3101R / DA-EC3101T
