DC-T3233HRXL

Full HD IR Bullet Camera with Heater
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Motorized Vari-focal lens (f=4.4 - 10mm)
  • micro SD/SDHC/SDXC, Smart Failover
  • Two-way audio
  • Alarm in / out
  • IK10 / IP66 supports
  • Built-in heater
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (30 m / 98.4 ft (10 ea))
  • 3-axis mechanical design for installation
  • Supports ONVIF
Video
Image Sensor1/1.9" CMOS (IMX185)
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeMotorized Vari-focal
Focal Lengthf=4.4 - 10mm
ApertureF1.2 - 1.95
Iris ControlP-Iris
Angular Field of ViewWide : 91.5°(H), 48.4°(V), 109°(D)
Tele : 43.4°(H), 24.2°(V), 49.9°(D)
Min. IlluminationCOLOR : 0.01 lux @ F1.2
B/W : 0 lux (IR LED ON)
Dynamic Range120 dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and NightIR cut filter with auto switch
IR Distance (LEDs)30 m / 98.4 ft (10 ea)
Image SettingConfigurable Exposure, White Balance, Sharpness
Backlight CompensationOn / Off / HSBLC
Mirroring / PivotHorizontal / Vertical / Pivot
Image Stabilizer-
De-fogOn / Off
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm, Trip Zone
Video Out1 BNC
Network
Video CompressionH.264 (MP), M-JPEG, H.265
Intelligent CodecSupported
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera ProtocolDirectIP, ONVIF Profile S
Max. Frame RateDirectIP™ Mode : 30ips : 1920 x 1080(WDR)

Compatibility Mode : 60ips : 1920 x 1080
30ips : 1920 x 1080(WDR)
Supported Resolution1920 x 1080, 1280 x 720, 704 x 480, 640 x 360, 352 x 240
Multi-video Streaming Quadruple Streaming
Network ProtocolsDirectIP™ Mode : DirectIP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP
SecurityDirectIP™ Mode : SSL Encryption

Compatibility Mode : Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption
Remote Access ClientDirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100/1000BASE-T)
Recording Session BufferYes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Audio Detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ OutLine-in 1ea / Line-out 1ea
Alarm In / OutInput 1ea / Output 1ea
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP66, Heater
Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F)
*Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power Source12VDC, PoE (IEEE 802.3af Class 3)
Power Consumption12V=, 0.8A, 9.6W
PoE, IEEE 802.3af(Class 3)
ApprovalFCC, CE, KC
Mechanical

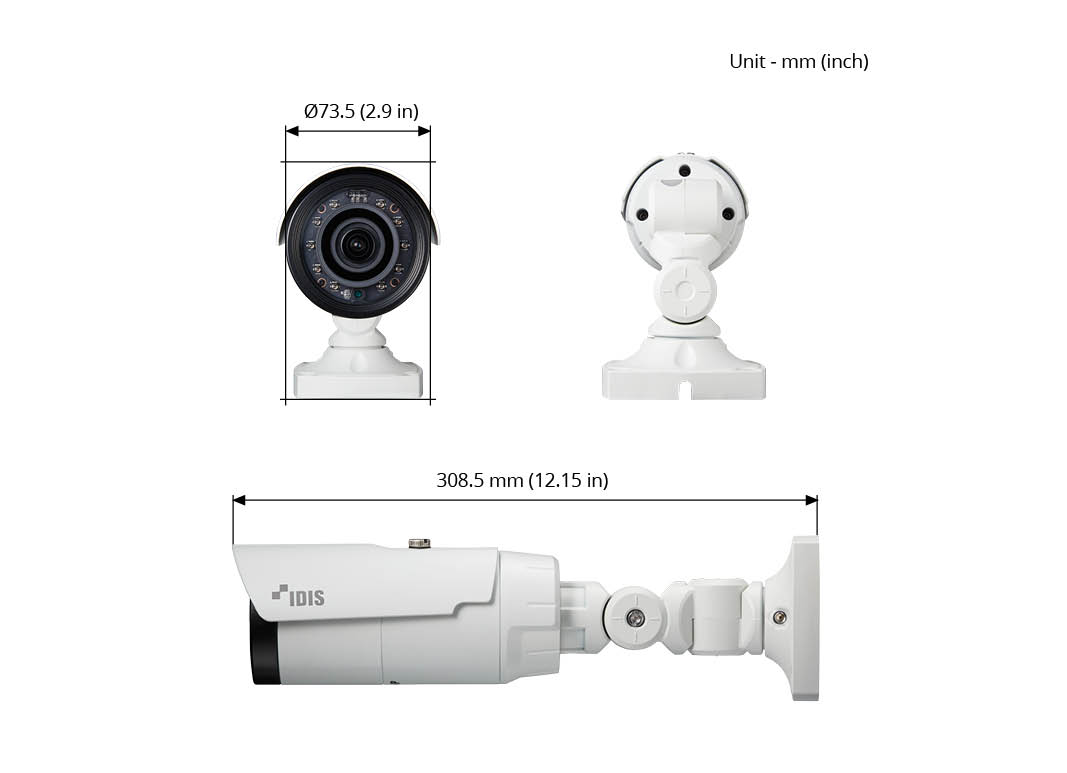

Dimensions (W x H)Ø73.5mm x 308.5mm (Ø2.9" x 12.15")
Weight1.17 kg (2.58 lb)
Installation environment Accessory configuration

Pole

Pole Mount
Model:DA-LM2000

or

Junction Box
Model:DA-JB2000

+

Pole Mount
Model:DA-LM2000

+

Junction Box
Model:DA-JB2400

Corner

Corner Mount
Model: DA-RM2000

or

Junction Box
Model: DA-JB2000

+

Corner Mount
Model: DA-RM2000

+

Junction Box
Model: DA-JB2400
