AL-1112

Alarm Box
  • Supports DirectIP™ NVR
  • Supports IDIS Solution Suite
  • 4 Relay Output
  • 8 Alarm Input
  • DC Output for Small Power Devices
  • LED Indicator of Alarm Status

AL-1112

Alarm Box
  • Performance

  • Easy Installation

  • Usability

CASE STUDY

Education

Commercial

Healthcare

Residential

Interface
Alarm Input 8 Digital-Input - Dry contact, Wet contact High : Open or DC 5V ~ DC 30V Low : Short or DC 0V ~ DC 1.8V
Alarm Output 4 Relay-out - NC, NO, COMMON
Power Output 12VDC(300mA), 5VDC(400mA)
Ethernet 10/100Mbps
DirectIP Supported Yes
USB Yes(Spare)
General

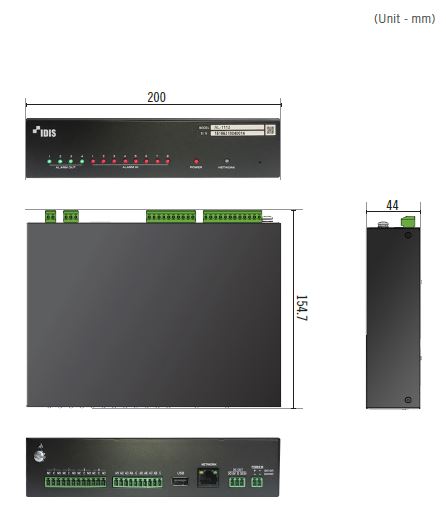

Dimension (W x H x D) 200mm x 44mm x 153mm (7.9" x 1.7" x 6.0")
Unit Weight 0.77kg (1.7lb)
Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F)
PoE(class) Yes(IEEE 802.3at Class 4)
Power source 12VDC, 24VAC, PoE
Power Consumption 20W
Approvals FCC, CE, KC
