DA-ES1104C

4-Bay eSATA Storage
Compatible Recorder: IR-100, IR-300, DR-8364(F)(D)
  • 19 inch rack-mount Title
  • Best combination with DirectIP™ NVR
  • Supports RAID Levels 0, 1 0, 5
  • SATA to SATA Port Multiplier
  • Maximum of 3.0Gbps transfer rate (SATA II)
  • Installation of the maximum of four hard disk drives
  • Maximised space saving and capacity relative to cost
  • Easy expansibility to a very large storage pool

DA-ES1104C

4-Bay eSATA Storage
Compatible Recorder: IR-100, IR-300, DR-8364(F)(D)
  • Direct IP

  • Interoperability

  • Compatibility

  • Easy Installation

CASE STUDY

Retail

Education

Commercial

Residential

Hardware
Interface eSATA x1
Number of Drives SATA II x4
Drive Size 3.5
Drive Title SATA II
Performance
Title and Rate SATA II (3Gbps)
RAID 0, 1 + 0, 5
Max Drive Capacity 24TB(up to 6TB per bay)
General

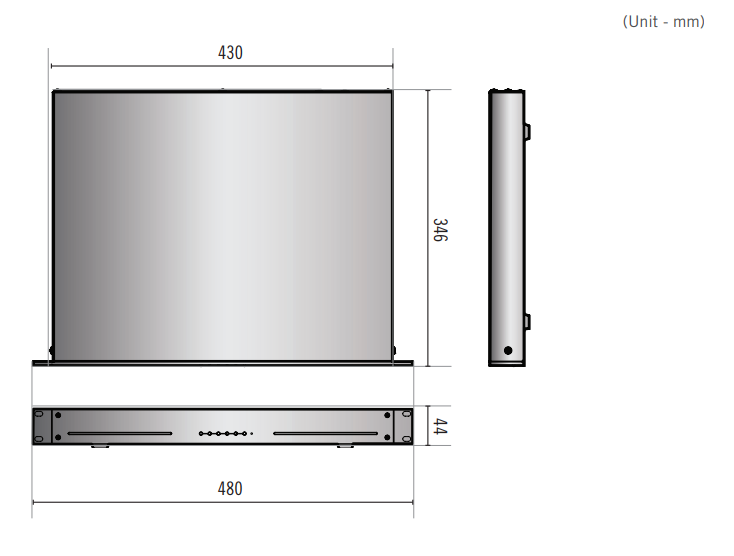

Diemensions(W x H x D) 480mm x 44mm x 346mm (18.9" x 1.7" x 13.6")
Weight 6.4kg (14.11lb)
Operation Temperature 0°C to 45°C (32℉ ~ 113℉)
Power Input 100V ~ 240VAC, 0.6-0.3A, 50/60Hz
Power Consumption Max. 40W
Approvals FCC, CE
