TR-1208

DirectCX 8channel Recorder
  • Supports HD-TVI / 960H / Analog camera
  • Up to 240ips Full HD recording
  • Full HD Display with HDMI and VGA output
  • Long transmission distance over coax cable
  • Supports OSD control over Coax
  • Supports one click network configuration through FEN service

TR-1208

DirectCX 8channel Recorder
  • FEN Service

  • Easy Installation

  • Stroage Expansion

  • FullHD display

CASE STUDY

Commercial

Logistics

Public Safety

Manufacturing

VIDEO

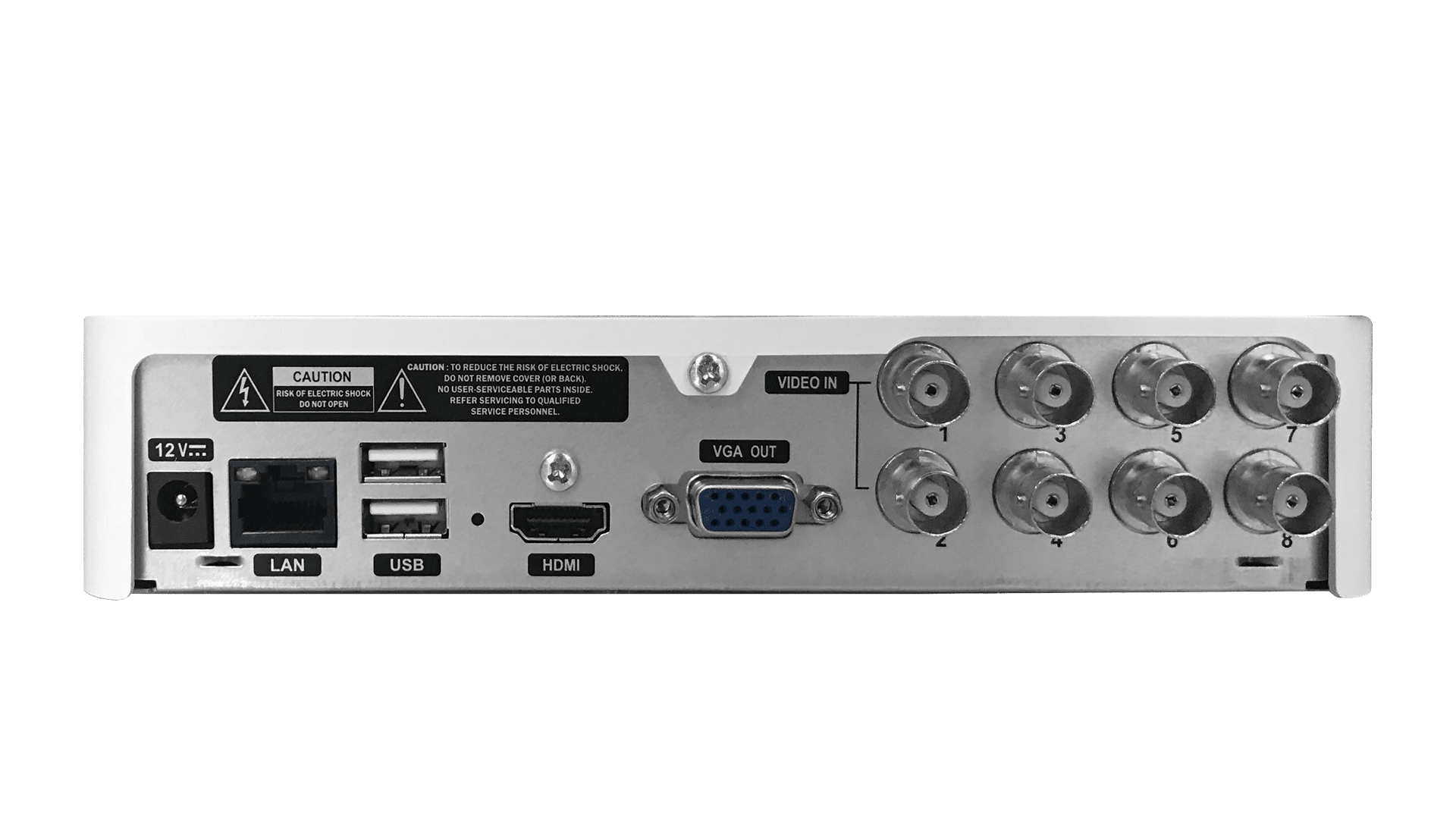

Video Inputs8 BNC (Multistandard Analog)
Supported Camera Types720P25, 720P30, 1080P25, 1080P30, CVBS(NTSC / PAL)
Video Outputs1 HDMI, 1 VGA
Display ResolutionHDMI / VGA : 1920 x 1080, 1440 x 900, 1280 x 1024
Display SpeedUp to 240ips
Digital Zoomx2 ~ x12
RECORDING
Recording Resolution1920x1080, 1280x720, 960x480,720x480,960x240, 720x240 480x240, 360x240
Frame Rate240ips@1080P
CompressionH.264
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventsMotion detection, Video loss
PLAYBACK
Performance8ch D1 Synchronous Playback
Search ModeTime-lapse, Event log, Motion
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x1, (Up to 6TB Capacity, 3.5
Total Capacity6TB=6TB x 1
Data Export DeviceUSB HDD, USB Stick
NETWORK
Client ConnectionFast Ethernet x1
Transmission Speed30ips@Full HD
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (attach jpeg), Callback to Remote S/W, Push notification (IDIS Mobile)
Two-way AudioNo
Client ViewerIDIS Center, IDIS Mobile, IDIS Web
INTERFACE
Audio In/ Out-
Alarm In / Out-
Alarm Reset In-
Serial InterfaceUSB 2.0 x 2
User InterfaceMouse
GENERAL
Operating SystemEmbedded Linux

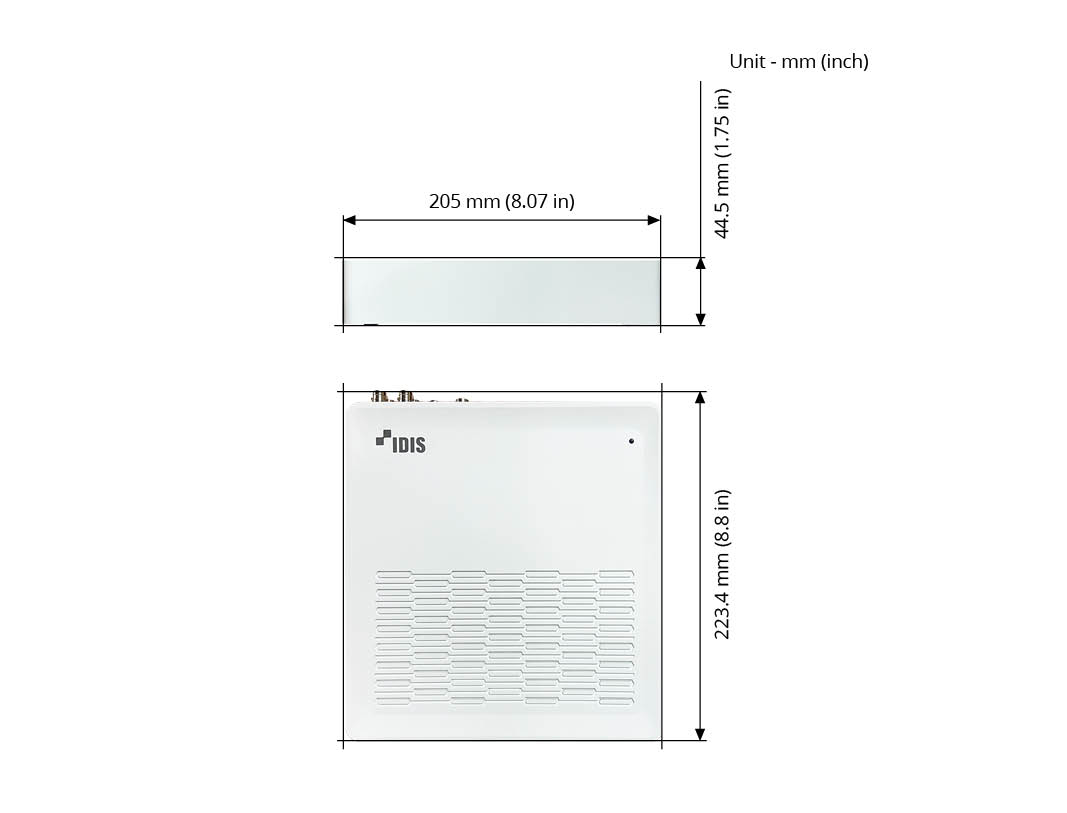

UNIT Dimensions (W x H x D)205mm x 223.4mm x 44.5mm (8.07" x 8.80" x 1.75")
Unit Weight1.24kg (2.73) (with 1 HDD)
Operating Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputAdaptor  Input : 100-240V AC, 50/60Hz, 1.5A, Output : 12V DC, 3A
Power Consumption12V=, 1.11A, 13.32W
ApprovalsFCC, CE, KC
