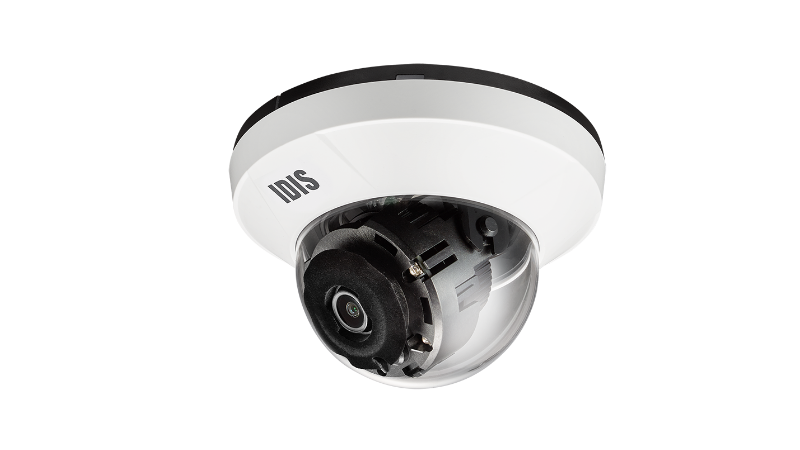

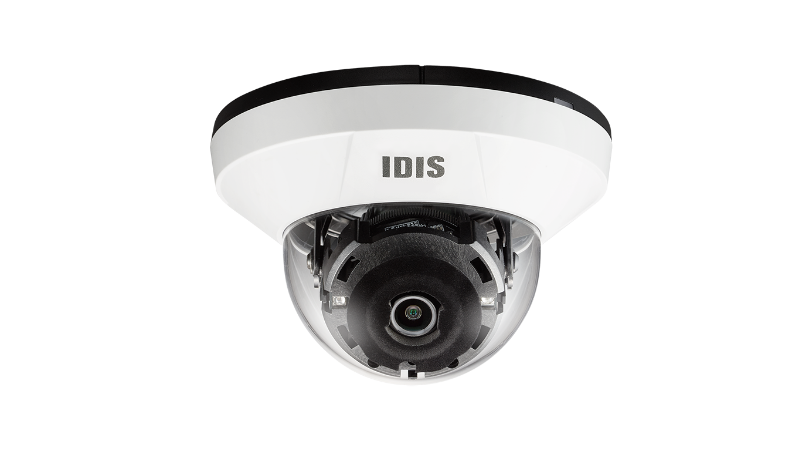

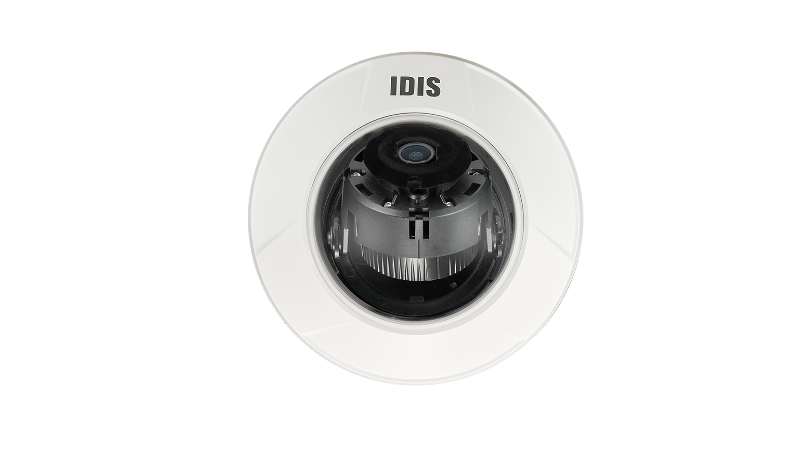

DC-D4212R 2.8mm

Full HD IR Dome Camera
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=2.8mm)
  • Day and night (ICR)
  • PoE (IEEE 802.3af Class 2)
  • IR LED (Distance : 20m / 65.6 ft)
  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-D4212R 2.8mm

Full HD IR Dome Camera
  • Direct IP

  • ONVIF

  • IR LED

  • FullHD High Resolution

CASE STUDY

Retail

Education

Commercial

Residential

Video
Image Sensor 1/2.9
Max. Resolution 1920 x 1080
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length f=2.8mm
Aperture F=2.0
Iris Control Fixed Iris
Angular Field of View 109.24º(H), 59.37º(V), 128.58º(D)
Pan/Tilt/Rotate Range Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109°
Min. Illumination COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON)
S/N Ratio More than 45dB
Dynamic Range More than 70dB
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs) 20 m / 65.6 ft (4 ea)
Image Setting Configurable Exposure, White Balance, Sharpness
Digital Noise Reduction Configurable 2DNR/3DNR
Backlight Compensation On / Off / HSBLC
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer -
De-fog On / Off
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out -
Network
Video Compression H.265, H.264 (MP) M-JPEG,
Intelligent Codec Supported
Video Compression Level (Quali Basic, Standard, High, Very High
Bitrate Control H.264 - CBR / VBR, H.265 - CBR / VBR
Audio Compression .
Two-way Audio -
IP Camera Protocol DirectIP, IDIS, ONVIF
Max. Frame Rate DirectIP™ Mode : 30ips : 1920 x 1080
Compatibility Mode : 30ips : 1920 x 1080
Supports Resolution DirectIP™ Mode : 1920x1080, 1280x720, 704x480, 640x360, 352x240
Compatibility Mode : 1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-video Streaming DirectIP™ Mode : Quadruple Streaming
Compatibility Mode : Quadruple Streaming
Network Protocols DirectI Protocol,RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Security SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption
Remote Access Client Off / On
-Motion Adaptive Transmission DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTS Yes (Up to 10MB)
Edge Storage -
-Supported Language Korean, English
ALARM AND EVENT
Trigger Event Motion Detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio In/ Out -
Alarm In / Out -
Environmental
Vandal Proof Casing -
Outdoor Ready -
Material -
Operating Temperature -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source PoE (IEEE 802.3af Class 2)
Power Consumption PoE (IEEE 802.3af Class 2), 4.6W
LABEL PoE (IEEE 802.3af Class 2)
Approval FCC, CE, KC
Mechanical

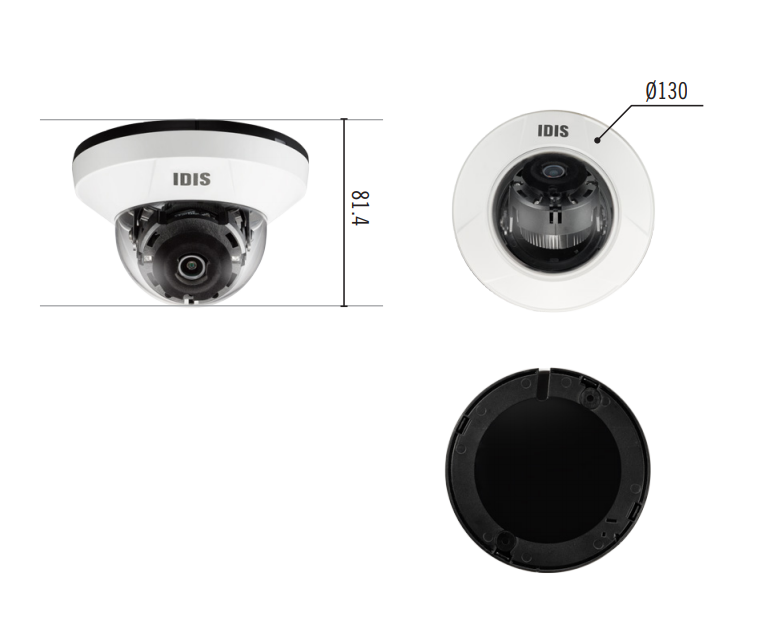

Dimensions (Ø x H) Ø130 x 81.4mm (Ø5.12
Weight 0.23kg (0.50 lb)
