SM-F212

21.5’’ Full HD Standard Monitor
  • 22Inch Full HD LED Panel(TN Type)
  • Non-Glare Type LED Glass
  • Response Time(5ms)
  • Long Reliability Life Time(50K Hours & 24/7/365)
  • Supports multiple Interface ports
  • Low Power consumption(<0.5W; saving mode)
  • Prevent Burn-In feature
  • VESA Mount(100x100)

SM-F212

21.5’’ Full HD Standard Monitor
  • LED Panel

  • 16:9

  • 24/7 OPERATIONAL

  • FullHD High Resolution

CASE STUDY

Commercial

Logistics

Public Safety

Manufacturing

Panel
Type LED
Screen Size 21.5 Inch
Active Display Area 476.64mm(H) x268.11mm(V)
Max. Resolution 1920 x 1080 @ 60Hz
Panel Technology TN Type
Pixel Pitch 0.24825mm(H) x 0.24825mm(V)
Brightness 220cd/m²
Contrast Ratio 1000:1
Aspect Ratio 16:9
Viewing Angle(H/V) 170°/160°
Display Color 16.7 Millions
H-Scanning Frequency 30~80Khz
V-Scanning Frequency 50~75Khz
Response Time (G2G) <5ms
Panel Life Time 50,000Hours
Interface
Hybrid(AHD,TVI,CVI,CVBS) In/Ou -
HDMI In 1
Display Port -
VGA Input 1
DVI Input -
Audio In/Out 1/-
BNC Video In/Out 1/1
S-Video In/Out -
Component Y/pb/Pr In -
S/PIDF Output -
RS232 In/Out -
USB -
GENERAL

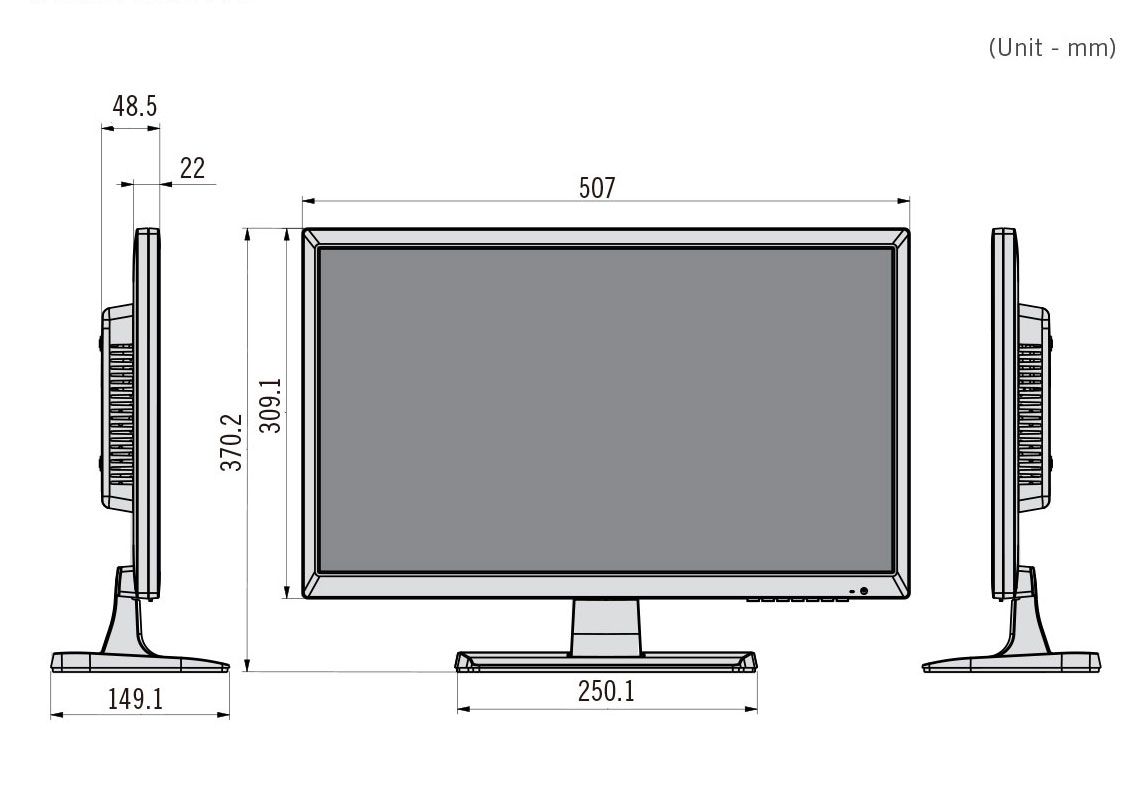

Outline Dimension(WxHXD) 507.0mmx370.2mmx149.1mm (19.96"x14.56"x5.87")
Bezel width (Spec. for VideoWa -
Net Weight/Gross Weight 3.8Kg(8.38lb)/4.8Kg(10.58lb)
Material/Color Plastic / Black
Warranty-Parts/Labor 3 Year / 3 Year
MTBF 50,000 Hours(Panel)
Power Supply DC 12V, 3A(AC100~240V[50/60Hz])
Power Consumption - Typical 25.2W
Power Consumption - Stand by <0.5W
Power Savings(DPMS) Yes
Operating Temperature 0°~40°C(32°F~104°F)
Storange Temperature -20°~60°C(-4°F~140°F)
Built-In Speaker Yes(3Wx2)
Remote Control Yes
VESA Mount Size 100mm x 100mm / M4 x 6 Screws
EXTERNAL CONTROLS
IR Sensor(For Remote Control) Built-In
Serial In/Out -
USB -
