DR-2216P

DirectIP 2200 Series Full HD Recorder
  • Total incoming throughput 116Mbps
  • Up to 480ips Full HD real-time recording
  • Up to 480ips live display
  • Easy to install, set-up, and play with DirectIP cameras
  • Built-in 8 channel PoE Switch and expandable up to 16 channel using DirectIP Gigabit PoE Switch
  • Expandable up to 36TB using eSATA storage
  • Supports one click network configuration through FEN service
  • Supports third party cameras (Axis, Panasonic, ONVIF)
VIDEO
Video Inputs16 IP Channels
Max. Incoming Throughput116Mbps
Supported CameraDirectIP, AXIS, PANASONIC, ONVIF
Video Outputs1 HDMI, 1 VGA
Display Resolution1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display SpeedUp to 480ips
Digital Zoomx2 ~ x12
RECORDING
Max. Throughput64Mbps, 480ips@Full HD
Recording ResolutionUp to 12MP (Depending on IP Camera)
Encoding ModeCBR, VBR
CompressionH.264
Recording ModeTime-lapse, Event, Pre-event, Panic
Trigger EventsAlarm In, Audio Detection, Motion Detection, Trip-zone, Tampering, Video Loss, Text-in, ANPR, Etc.
PLAYBACK
Performance4ch Full HD Synchronous Playback
Search ModeTime-lapse, Event Log,Thumbnail, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x2, eSATA x1, (Up to 6TB Capacity for Each Disk)
Total CapacityThe maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here.
NETWORK
Client ConnectionGigabit Ethernet (Client) x1
Video In ConnectionFast Ethernet (IP Camera) x8 +Gigabit Ethernet(Ext) x1
Transmission Speed20Mbps / 50Mbps (BRP Mode)
Camera PowerPoE (IEEE 802.3at Class 4) Supported 8 Ports, 50W
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile)
Two-way AudioYes
Client ViewerIDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite
INTERFACE
Audio In/ OutLocal (NVR) : - / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera)
Alarm In / OutLocal(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In-
Serial InterfaceRS232 (Terminal Block)
USBUSB 2.0 x 1, USB 3.0 x 1
User InterfaceMouse, IR Remote Control, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux

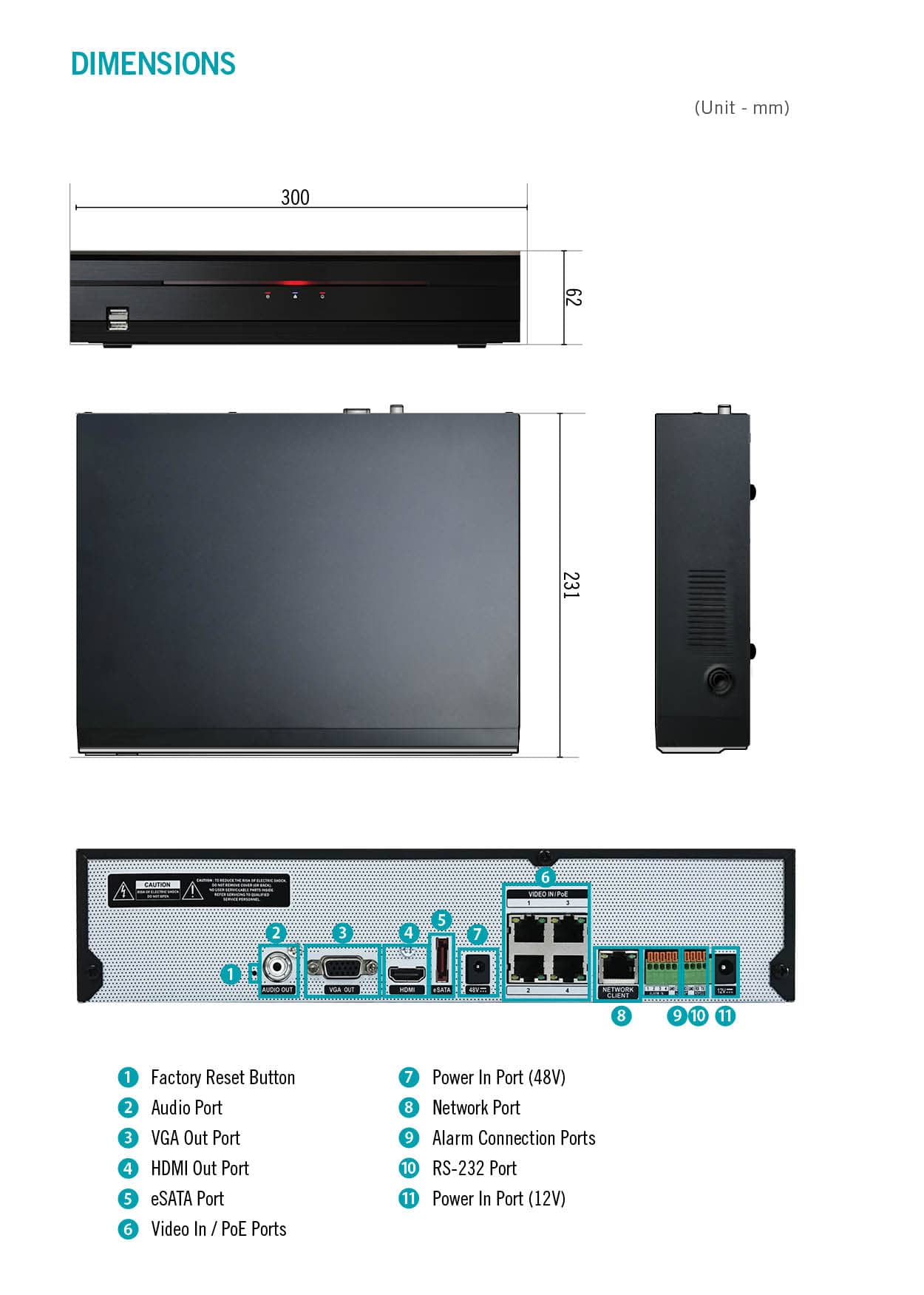

UNIT Dimensions (W x H x D)300mm x 62mm x 231mm (11.8" x 2.4" x 9.1")
Unit Weight2.3kg (5.1lb) (with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputDC 12V 2.1A (for NVR), DC48V 1.08A (for PSE)
Power ConsumptionMax. 25.2W (for NVR), Max. 52W (for PSE)
ApprovalsFCC, CE, KC, PSE
