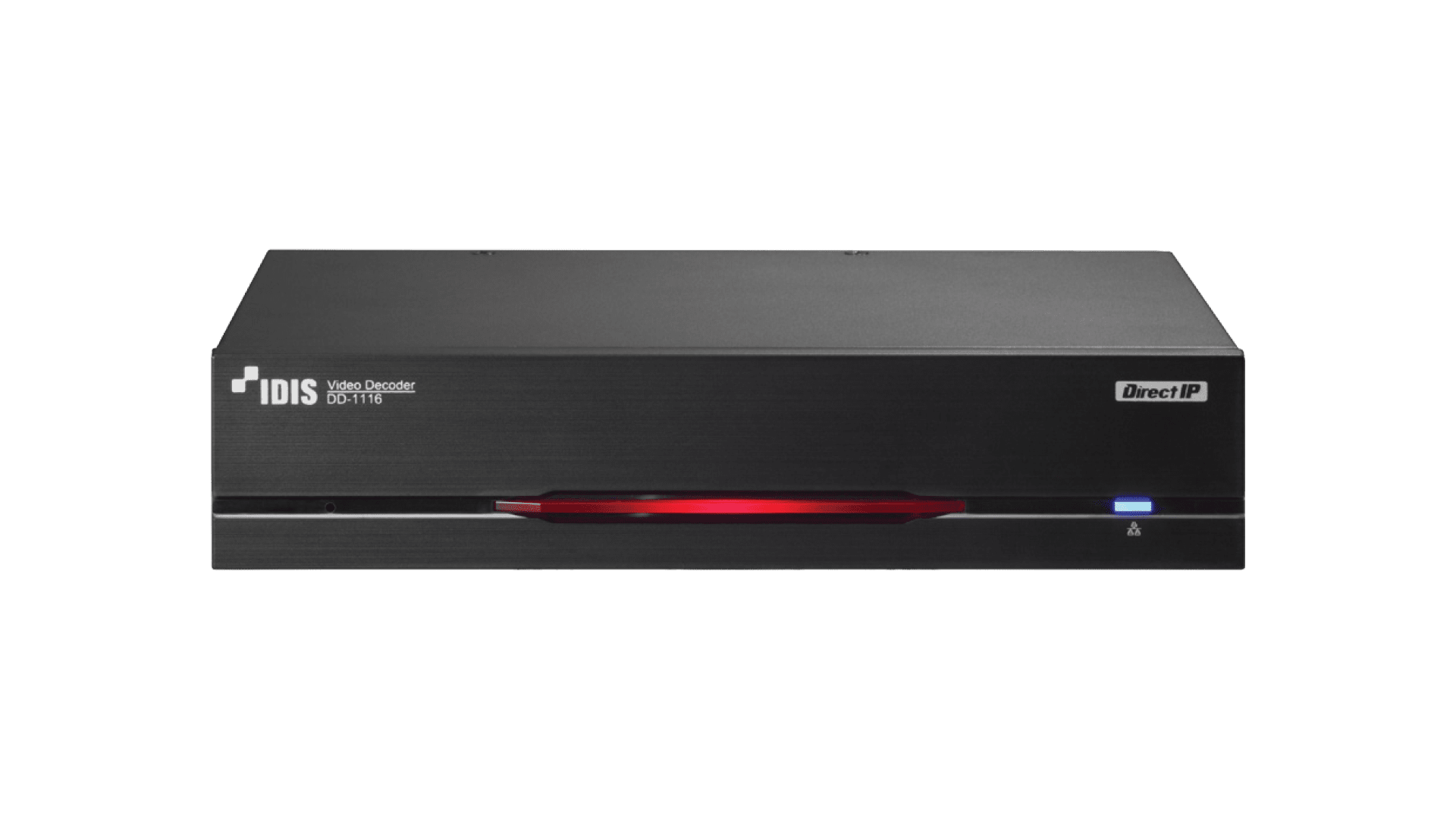

DD-1116

DirectIP™ 16-channel Decoder
  • Supports DirectIP™ NVR
  • Supports HDMI, VGA, CVBS port
  • Up to 4ch FHD display
  • Up to 16ch real-time display
Decoder
Video CompressionH.264
Video Inputs16ch IP
Supported DevicesDirectIP NVR
Video Outputs1 HDMI, 1 VGA, 1 CVBS
Display ResolutionHDMI , VGA : 1920x1200, 1920x1080, 1680x1050, 1600x1200
C[removed] 640x480
Diplay speedUp to 480ips
Max. network throughput48Mbps
Newtork ConnectionGigabit Ethernet x1
General

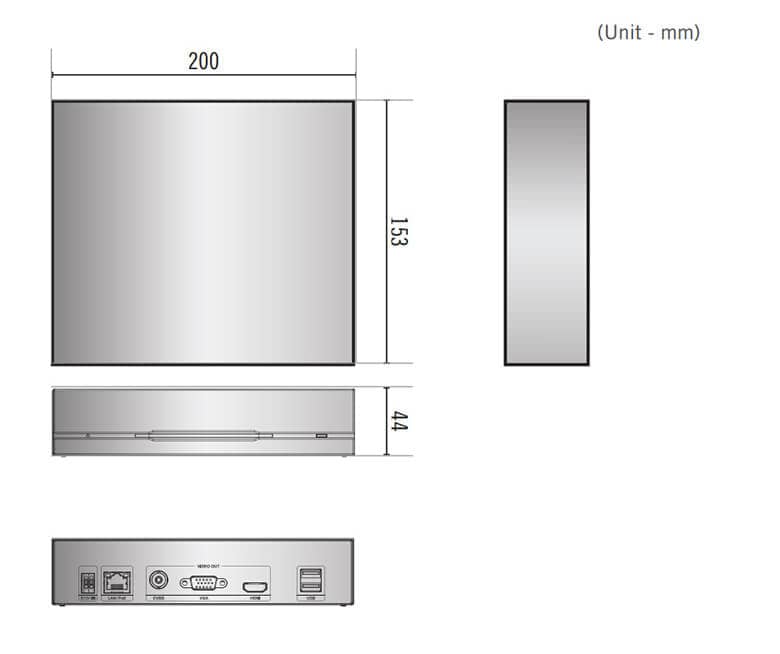

Dimension (W x H x D)200mm x 44mm x 153mm (7.9" x 1.7" x 6.0")
Unit Weight0.84kg (1.85lb)
Operation Temperature0°C to 40°C (32℉ ~ 104℉)
PoE(class)Yes(IEEE 802.3af Class 0)
Power source12VDC, PoE
Power Consumption8W
ApprovalsFCC, CE
