TR-4216R

HD-TVI 16channel Full HD Recorder
  • Supports Multi Standard Analog Camera
  • Up to 480ips Full HD recording
  • Full HD Display with HDMI and VGA output
  • Supports CVBS Spot Monitor
  • Long transmission distance over coax cable
  • Supports HD-TVI camera OSD control over Coax
  • Expandable up to 48TB using 4 SATA interfaces and 1 eSATA storage interface
  • Supports RAID 1
  • Supports one click network configuration through FEN service

TR-4216R

HD-TVI 16channel Full HD Recorder
  • FEN Service

  • Easy Installation

  • Stroage Expansion

  • FullHD display

CASE STUDY

Retail

Commercial

Banking

Sports & Leisure

VIDEO
Video Inputs16 BNC (Multistandard Analog)
Supported Camera Types720P25, 720P30, 1080P25, 1080P30, CVBS(NTSC / PAL)
Video Outputs1 HDMI, 1 VGA, 1 BNC(Spot)
Display ResolutionHDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 VGA : 1920 x 1080, 1440 x 900, 1280 x 1024 Composite : 720x480(NTSC) , 720x576(PAL)
Display SpeedUp to 480ips
Digital Zoomx2 ~ x12
RECORDING
Recording Resolution1920x1080, 1280x720, 960x480,720x480,960x240, 720x240 480x240, 360x240
Frame Rate480ips@1080P
CompressionH.264
Recording ModeTime-Lapse, Event, Pre-Event, Panic
Trigger EventsAlarm in, Motion detection, Video loss, Text-in
PLAYBACK
Performance4ch 1080P synchronous playback
Search ModeTime-lapse, Event log, Motion, Text-in
Digital Zoomx2 ~ x12
STORAGE
HDDSATA x4, eSATA x1,(Up to 6TB capacity for each disk)
Total Capacity48TB=6TB x(4+(1x4))
Data Export DeviceUSB HDD, USB Stick
NETWORK
Client ConnectionGigabit Ethernet x1
Transmission Speed120ips@Full HD
Remote Data ExportIDIS Player, AVI, JPG
Event NotificationEmail (attach clip (.cbf)), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter), NetFS(FTP)
Two-way AudioSupport
Client ViewerIDIS Center, IDIS Mobile, IDIS Web
INTERFACE
Audio In/ Out4 RCA / 1 RCA + 1 HDMI
Alarm In / Out16 In / 4 Relay Out
Alarm Reset In1
Serial InterfaceRS232, RS485 (Terminal Block), USB 2.0, USB 3.0
User InterfaceMouse, IR Remote Control, Front Button, Network Remote Keyboard
GENERAL
Operating SystemEmbedded Linux

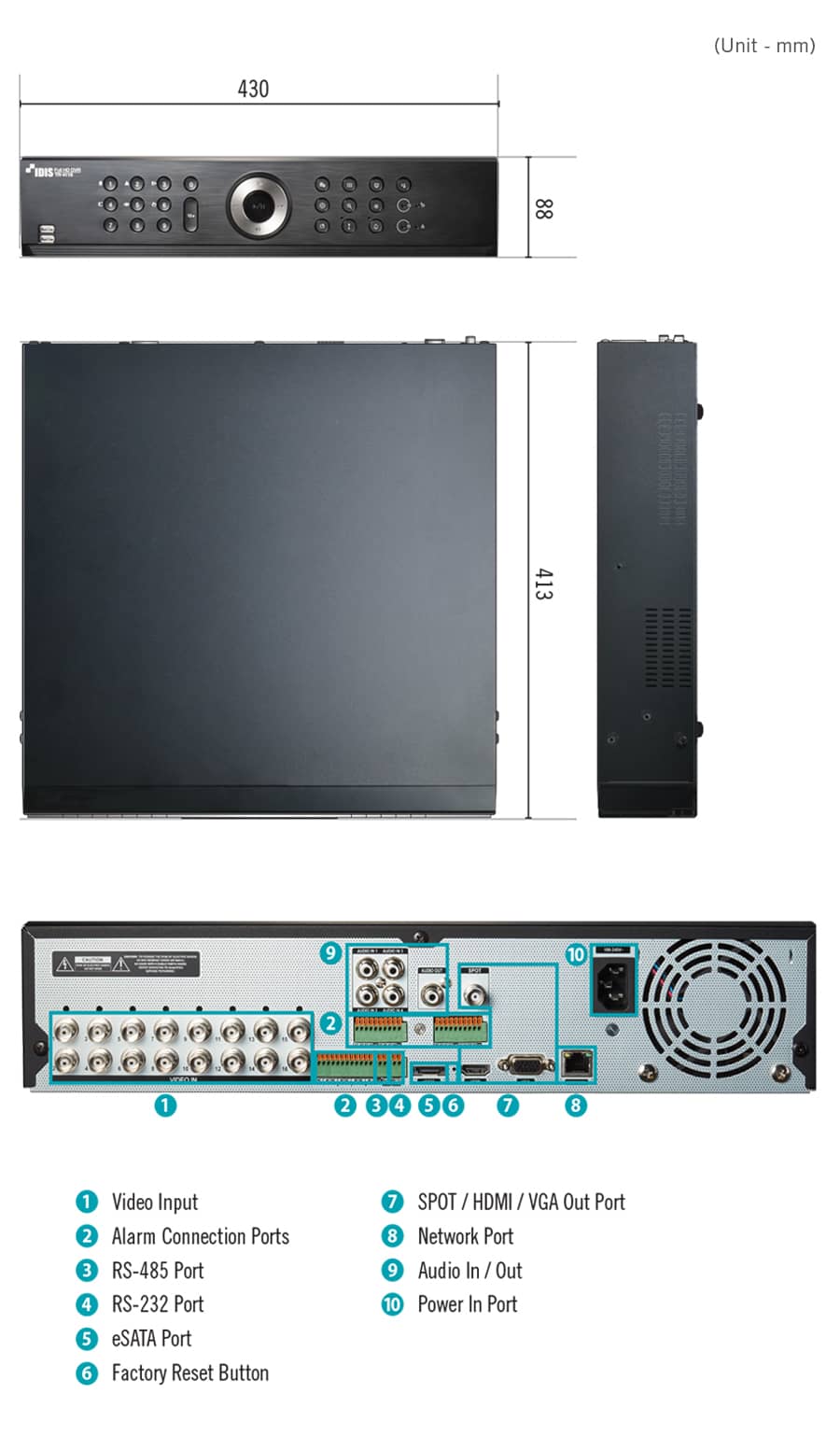

UNIT Dimensions (W x H x D) - 430mm x 88mm x 413 mm (16.9" x 3.5" x 16.3")
UNIT Dimensions (W x H x D) - 430mm x 88mm x 415 mm (16.9" x 3.5" x 16.3")
Unit Weight6.0kg (13.2lbs)(with 1 HDD)
Working Temperature0°C to 40°C (32℉ ~ 104℉)
Operating Humidity0% ~ 90%
Power InputAC 100-240 V, 50/60Hz, 1.2 - 0.6A
Power Consumption76W
ApprovalsFCC, CE, KC, CB, UL, PSE
Sequenceyes
Multiscreen on Spot Monitoryes
Color Controlbrightness, constrast, saturation, hue
Record
Scheduling Methodtime-table type (by naming), schedule a week by hour
Recording Setup Programmable fyes
ARCHIVE & Data Export
Archivingno
NETWORK
Web Browser AccessInternal, External
Remote PTZ Controlyes
Remote PTZ Setupyes
Remote PTZ Advanced Setupyes
Remote Data ExportClip Player, AVI, JPG, BMP
