DV-2116

AI in the Box
  • AI in the BOX with IDIS Solution Suite
  • Compatible with IDIS Deep-Learning Analytics (IDLA)
  • Analytics available with ISS IDLA up to 16 IP cameras
  • 4U rack mount chassis
SYSTEM
IDIS Solution SuiteCompatible with IDLA VA Service
Version 3.0.0 or Higher
Network Connection2 GbE RJ-45 Ports (1000Base-T)
Channels available for Analyti16Ch
IDLA Processing UnitNVIDIA GTX1060, 6GB
Operating SystemMicrosoft® Windows Embedded Standard 8
ProcessorIntel® I7-7700, 3.6GHz
MemoryDDR4 PC-19200, 8GB
Video Outputs1 HDMI, 1 DP, 1 VGA
USB6 ( 2 Front USB 2.0 + 2 Back USB 3.0 + 2 Back USB 2.0)
MECHANICAL
Form Factor4U RACK Mount Chassis

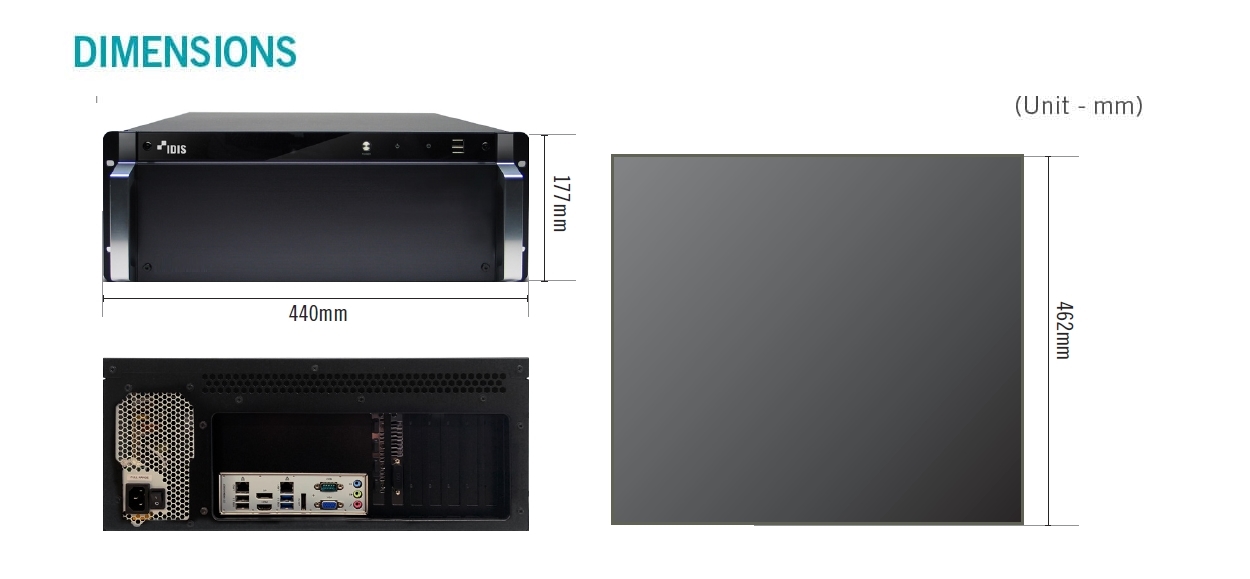

Dimensions (W x D x H)440mm x 177mm x 462mm (17.3" x 7.0" x 18.2")
Shipping Dimensions (W x D x H590mm x 350mm x 700mm (23.2" x 13.7" x 27.6")
Weight30.9 lbs. (14.0kg)
ELECTRICAL
Power InputAC 100-240 V, 50/60Hz, 3.0 - 1.5A
Power SupplySingle Power.
Power Consumption250W
ENVIRONMENTAL
Operating Temperature0°C to 40°C (32°F to 104°F)
Operating Humidity0% to 90%
General
CertificationsFCC, CE, CB, UL, KC
INSTALLATION ENVIRONMENT ACCESSORY CONFIGURATION
MANUAL DV-2116 Quick Guide v1.0 Download
A&E SPECIFICATION DV-2116 A&E Specification v1.1 Download
BROCHURE DV-2116 Download
