DC-S6283HRXL

2MP 36x Lightmaster IR PTZ Camera
  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • AF optical zoom lens (f=6 - 216mm), 36x zoom
  • micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
  • Two-way audio
  • Alarm in / out
  • IK10 / IP66 supports
  • Built-in heater
  • High-PoE, 24V AC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Digital image stabilization (DIS)
  • 350 m / 1,148.2ft (2ea)
  • Supports ONVIF

DC-S6283HRXL

2MP 36x Lightmaster IR PTZ Camera
  • Day & Night

  • AF optical zoom lens

  • Easy Installation

  • FullHD

CASE STUDY

Commercial

Logistics

Public Safety

Manufacturing

Video
Image Sensor1/2" CMOS
Max. Resolution1920 x 1080
Scanning ModeProgressive Scan
Lens TypeAF Zoom Lens
Focal Lengthf=6 - 216mm
ApertureF1.36 - 4.6
Iris ControlDC Auto Iris (HALL SENSOR)
Angular Field of ViewWide : 59.0º(H), 34.9º(V), 66.1º(D) Tele : 2.04º(H), 1.04º(V), 2.32º(D)
Min. IlluminationColor : 0.1 lux @ F1.36 B/W : 0 lux (IR LED ON)
Dynamic Range120dB (True WDR)
Electronic Shutter SpeedAuto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter ( 1~1/5, 1/7.5, 1/15)
Day and Night IR cut filter with auto switch
IR Distance (LEDs)350 m / 1,148.2ft (2ea)
Image SettingConfigurable Exposure, White Balance, Sharpness
Digital Noise ReductionConfigurable 2DNR/3DNR
Backlight CompensationOn / Off / HSBLC
Mirroring / PivotHorizontal / Vertical
Image StabilizerYes (DIS)
Privacy Masking8 Zones
Intelligent VideoVideo Motion Detection, Active Tampering Alarm
Auto TrackingYes
Video Out 1 Terminal Block
Pan/Tilt/Rotate
Pan Range360° (Endless)
Pan SpeedPan: 0.02~240°/sec (preset 360°/sec)
Tilt Range200° (-10~190°)
Tilt SpeedTilt: 0.02~240°/sec (preset 360°/sec)
Preset256ea
Network
Video CompressionH.265, H.264 (MP), M-JPEG
Intelligent CodecSupported
Video Compression Level (Quality)Basic, Standard, High, Very High
Bitrate ControlH.264 - CBR / VBR, H.265 - CBR / VBR
Audio CompressionADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way AudioYes
IP Camera Protocol DirectIP 2.0, ONVIF
Max. Frame RateDirectIP™ Mode : 60ips : 1920 x 1080 30ips : 1920 x 1080(WDR)
Supported Resolution1920x1080, 1280x720, 704x480, 640x360, 352x240
Multi-video StreamingDirectIP™ Mode : Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp
Security SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS, SSL Encryption
Remote Access Client DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite
EthernetRJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec)Yes (Up to 60MB)
Edge Storagemicro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
ALARM AND EVENT
Trigger EventMotion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event NotificationRemote S/W, Email (with Image)
Audio In/ OutLine-in 1ea / Line-out 1ea
Alarm In / OutInput 8ea / Output 2ea
Environmental
Vandal Proof CasingIK10
Outdoor ReadyIP66, Heater
Operating Temperature-40°C ~ +60°C *Starting up at above -20°C (-4°F)
Operating Humidity0% ~ 90%
Electrical
Power Source24VAC, PoE (75W)
Power ConsumptionMax 55.2W(Heater on)
Power ConsumptionHEATER OFF 24V~, 2.1A, 35.9W, 50/60Hz High-PoE, 50-57V, 27.9W HEATER ON 24V~, 3.7A, 64.6W, 50/60Hz High-PoE, 50-57V, 55.2W
ApprovalFCC, CE(50130-4), KC
Mechanical

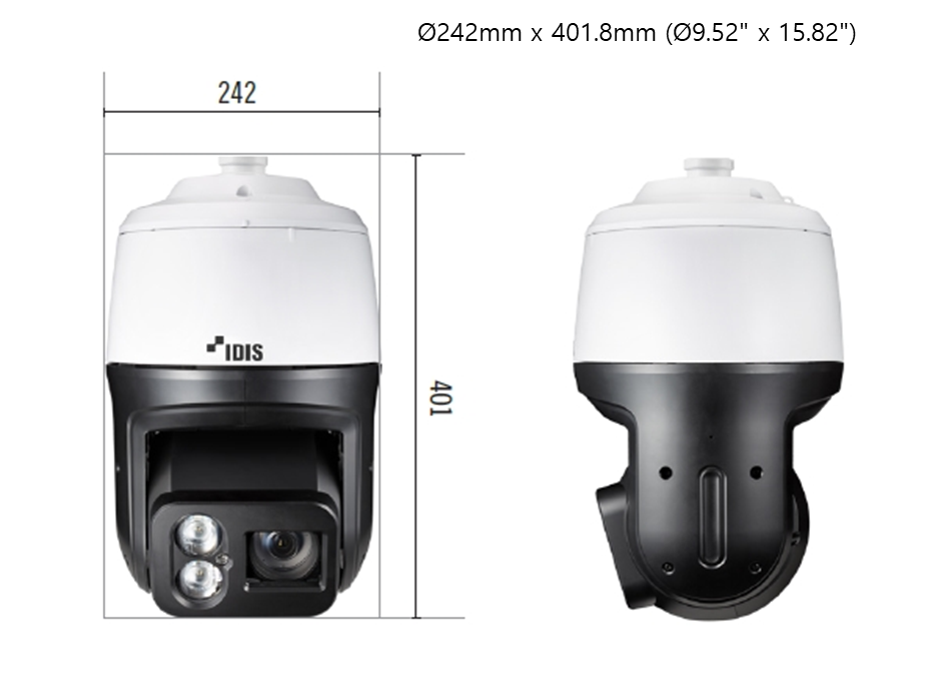

Dimensions (Ø x H)Ø242mm x 401.1mm (Ø9.52" x 15.79")
Weight7.2kg (15.87 lb)
