DA-FM1400

Flush Mount
  • Dimension (mm) : Φ210mm x 87mm(H)
  • Weight : 0.65 kg(1.44 lb)
  • Relevant Model : DC-D1122, DC-D1122R, DC-D1123, DC-D1123R, DC-D1223, DC-D1223R, DC-D1323R, DC-D1122W, DC-D1122WR, DC-D1123W, DC-D1123WR, DC-D1123WHR, DC-D1223W, DC-D1223WR, DC-D1223WHR, DC-D1223WX, DC-D1323WHR, DC-D2233, DC-D2233R, DC-D2233W, DC-D2233WR, DC-D2233WHR, DC-D2233WHX, TC-D1222R, TC-D1222WR, DC-D3233WRX, DCD3233RX, DC-D3233X, DC-D4233WRX, DC-D4233HRX, DCD4223WRX, DC-D4233RX, DC-D4223RX

DA-FM1400

Flush Mount
  • Performance

  • Easy Installation

  • Usability

  • Scalability

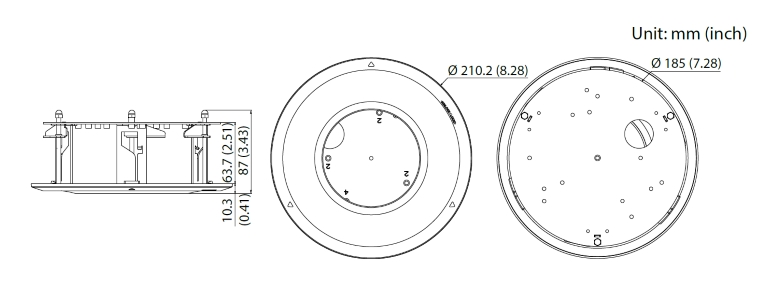

Dimension (mm)Ø210.2 x 87.0(H) (Ø8.27"" x 3.43""(H)
Weight0.65 kg(1.44 lb)
Relevant ModelDC-D1122, DC-D1122R, DC-D1123, DC-D1123R, DC-D1223, DC-D1223R, DC-D1323R, DC-D1122W,  DC-D1122WR, DC-D1123W, DC-D1123WR,  DC-D1123WHR, DC-D1223W, DC-D1223WR,  DC-D1223WHR, DC-D1223WX, DC-D1323WHR,  DC-D2233, DC-D2233R, DC-D2233W,  DC-D2233WR, DC-D2233WHR,  DC-D2233WHX, TC-D1222R, TC-D1222WR, DC-D3233WRX, DCD3233RX, DC-D3233X, DC-D4233WRX, DC-D4233HRX, DCD4223WRX, DC-D4233RX, DC-D4223RX
[Manual] DA-FM1400 Installation Manual v1.0
[BIM] DA-FM1300 BIM File
